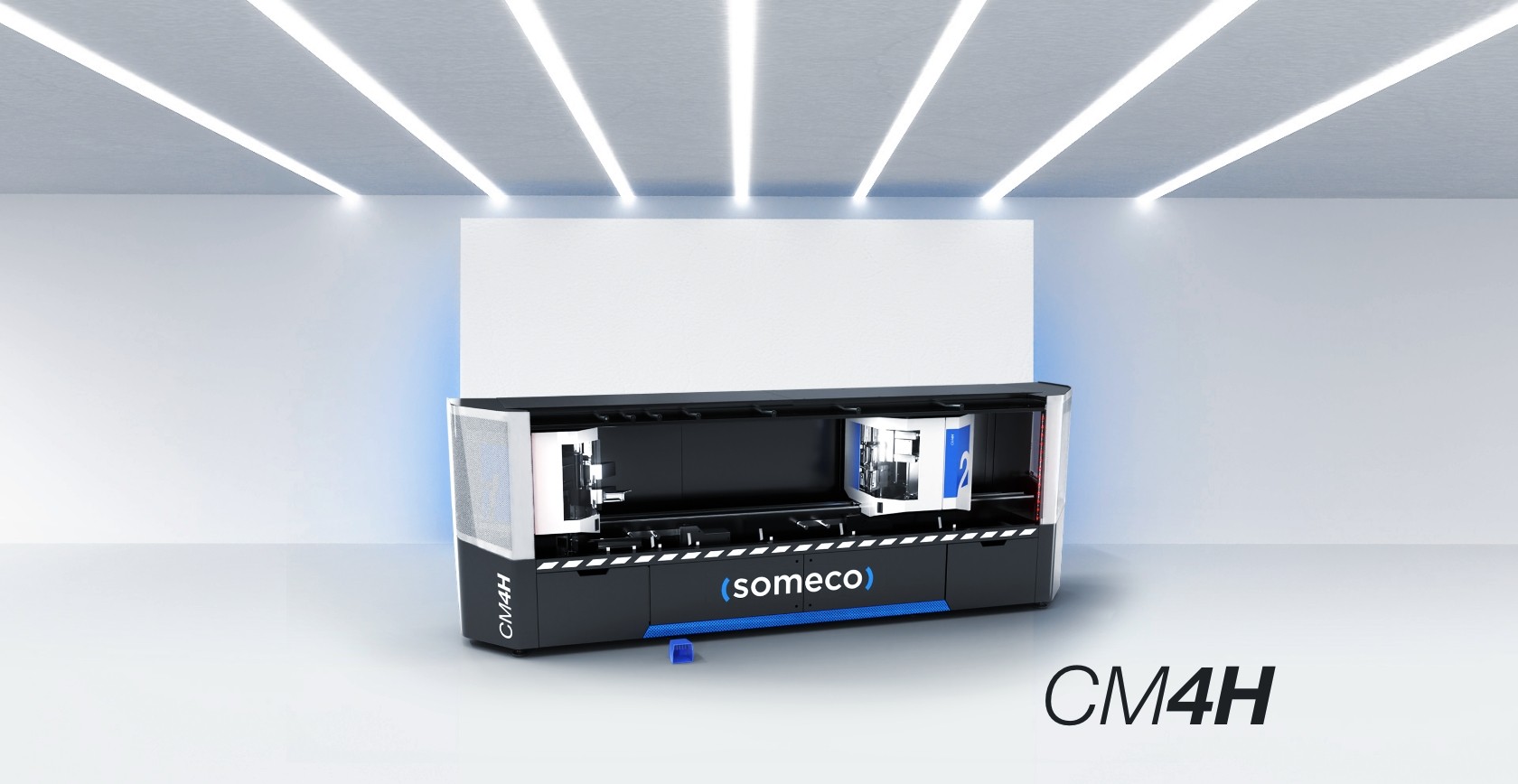

CM  4H

home / product a to z / C
Milling machine specifically designed for contouring PVC profiles that have been pre-cut at 45°. Integrated into the window production process alongside Someco SM series machines equipped with Seamless technology counterblocks, it prepares the profiles for the subsequent zero-seam welding phase. The CM 4H features two operating units: one fixed on the left and one mobile on the right. Each unit has three independent axes and controls three electro-spindles, one for the trimming blade and two for cutters of the same diameter. The machine can simultaneously process the four faces of two bars, ensuring a productivity level balanced with a 4-head welding machine. Programming can be done directly from the machine's console or by importing and executing predefined machining lists optimized by the office.
Technical data arrow_drop_down
AXIS TRAVEL
X AXIS (mm)
3.200
Y1 - Y2 AXES (mm)
231
Z1 - Z2 AXES (mm)
393
W1 - W2 AXES (mm)
46
Axes precision (mm)
± 0,1
POSITIONING SPEED
X AXIS (m/min)
60
Y AXIS (m/min)
50
Z AXIS (m/min)
25
AXIS ACCELERATION
X AXIS (m/s²)
8
Y AXIS (m/s²)
8
Z AXIS (m/s²)
8
W AXIS (m/s²)
8
DIMENSION AND WEIGHT
Overall dim. (width x length x height) (mm)
5.230 x 1.090 x 1.860
Weight (kg)
1.600
WORK AREA
Profile height (mm)
35 ÷ 110
Profile width (mm)
40 ÷ 130
Profile length (mm)
365 ÷ 3.500
END-MILLING AND MILLING UNIT
Number of electrospindles
3 + 3
Blade units
1 + 1
Blade diameter (mm)
Ø 200
Electrosplindle power in S1 for blade (kW)
1
Blade rpm max. (rpm)
18.000
Milling unit
2 + 2
Mill diameter max. (mm)
Ø 12
Electrosplindle power in S1 for mill (kW)
2
Mill rpm max. (rpm)
24.000
Tool kit for machining of aluminium PVC hybrid profile and/or PVC profiles with fiber-glass reinforcement

MACHINE SPECIFICATIONS
Seamless profile preparation

Swarfs and chips tray

Profile counterblocks

Operating pressure (bar)
6 - 7
COMMAND AND CONTROL UNIT
Embedded PC
Beckhoff
Communication protocol
EtherCAT
HMI
TS Display HD TFT 23,8'' - “optical bonding”
SOFTWARE
Microsoft® Windows® IoT Enterprise

ContourCAM

Included
Available
