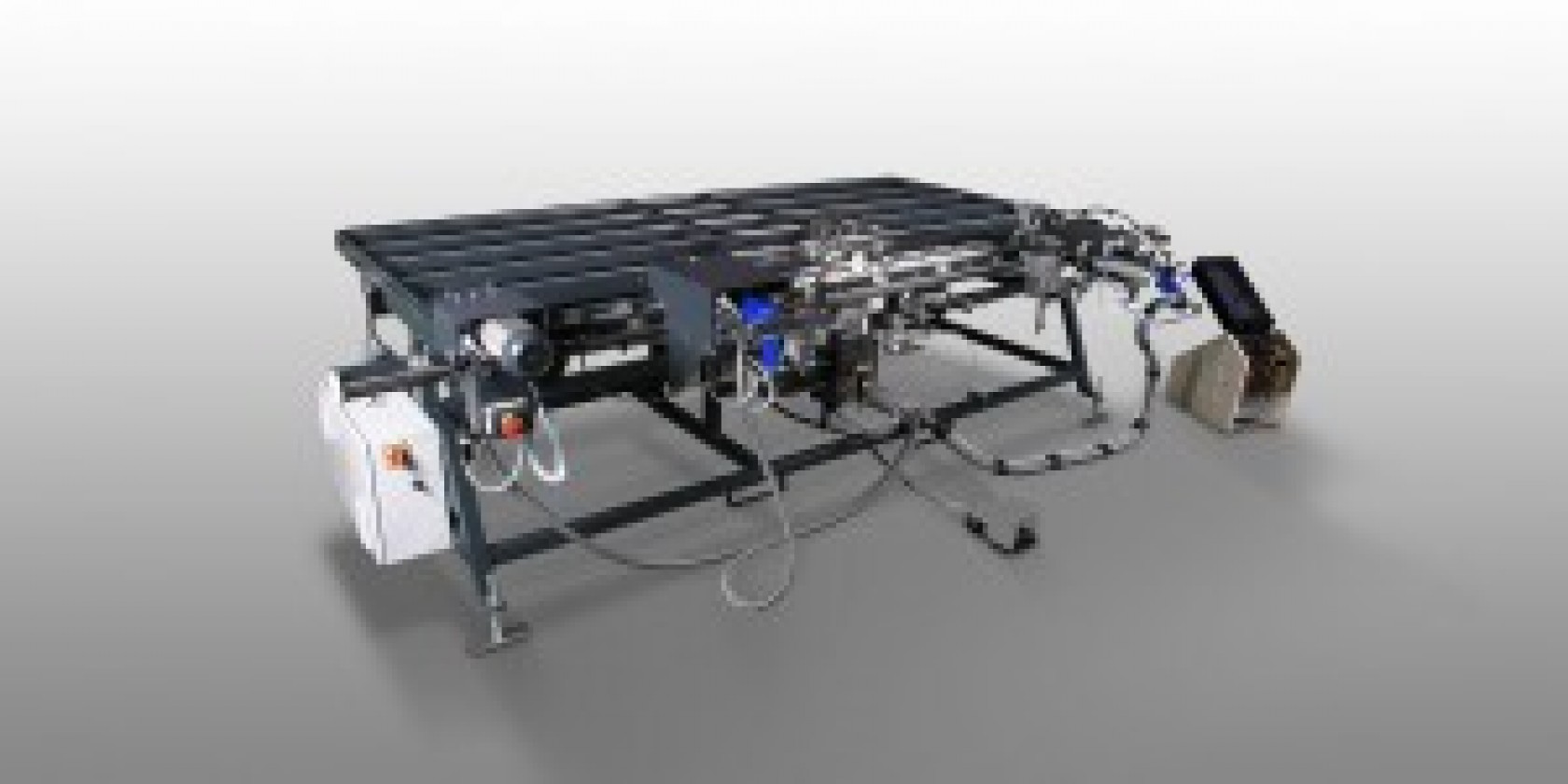

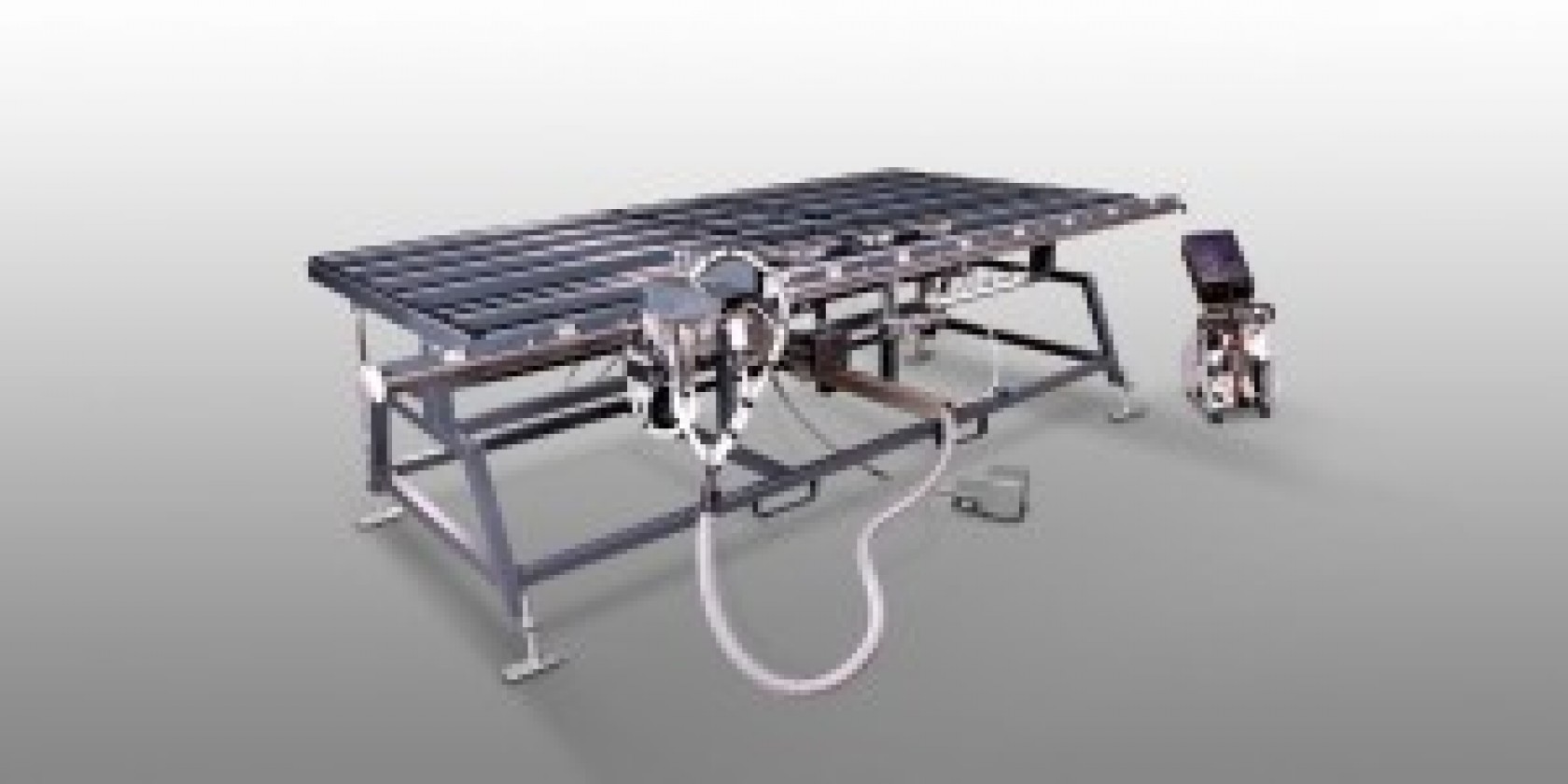

Sash assembly centre for installing hardware on PVC window sashes. Ergonomic fixing of hardware in a very short time. Sash assembly table for measuring and cutting to length of hardware components. Optimisation of sash processing by carrying out various work tasks at a single workstation. Assembly table can be tilted pneumatically. The sash, measurement and centring units can be moved pneumatically. Gear cropper with stops for a centred and consistent handle position. Two stop blocks for different sash widths. Mobile screwing unit with pneumatic height adjustment. Screw feed unit. Table supporting surface with plastic slide bars.

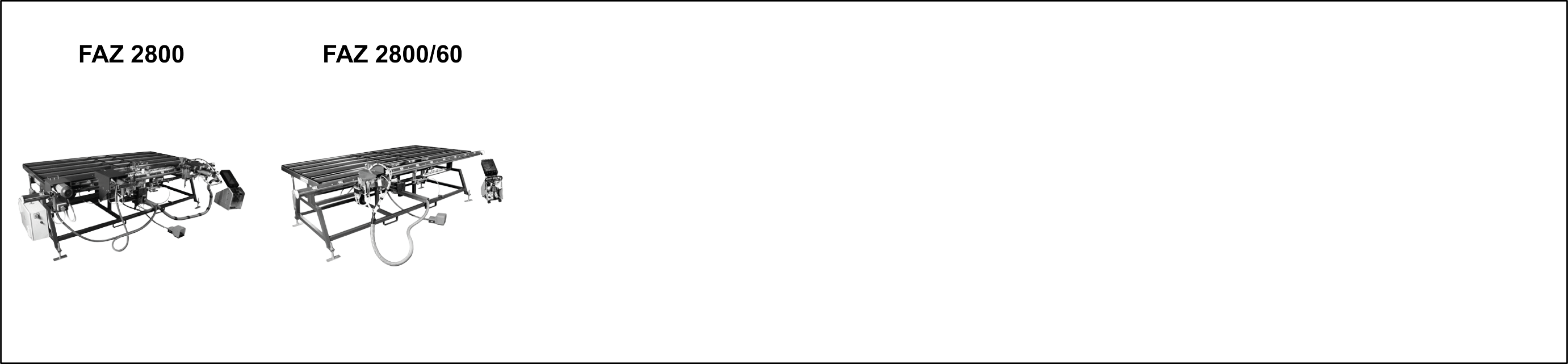

FAZ 2800: Manual insertion funnel for second screw length. Automatic depth shutoff.
The overall dimensions may vary depending on the product configuration.
Supporting surfaces with plastic slide bars
Mobile screwing unit with pneumatic height adjustment. Manual insertion funnel for second screw length. Automatic depth shutoff
Mobile screwing unit with pneumatic height adjustment
Two stop blocks for two sash widths
Gear cropper with stops for a centred and consistent handle position. Gear cropper with open cutting tool
Screw feed unit with automatic screw feeding
Feed screwing unit with automatic screw feeding
Stop blocks for additional sash widths
Laser for screw driving position
Hinge drilling unit with adjustable twospindle boring head, pneumatic height adjustment, with stops for the left and right drilling positions
Handle hole drilling unit installed at a fixed position with hydro-pneumatic drill feed and clamping unit; 3-spindle boring head

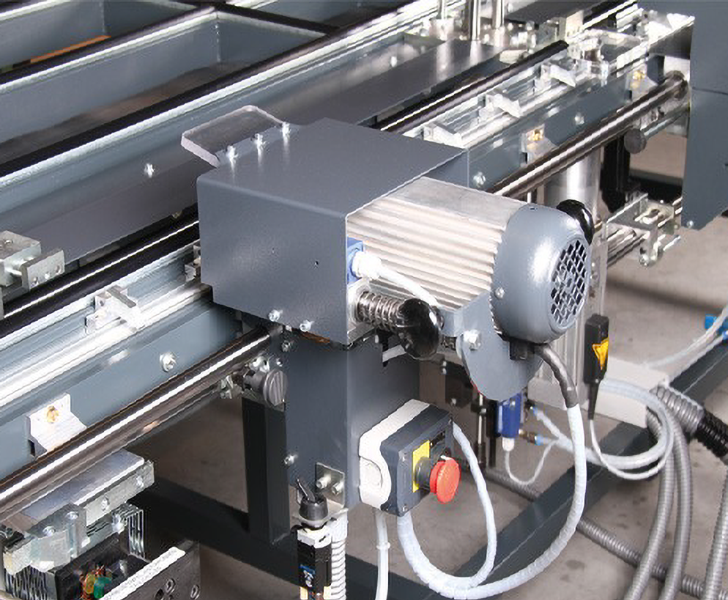

Milling unit can be moved manually with stop for lock case milling. Cutter diameter 12 mm
Stop rail with 14 folding stops for a consistent handle position (7x left, 7x right)

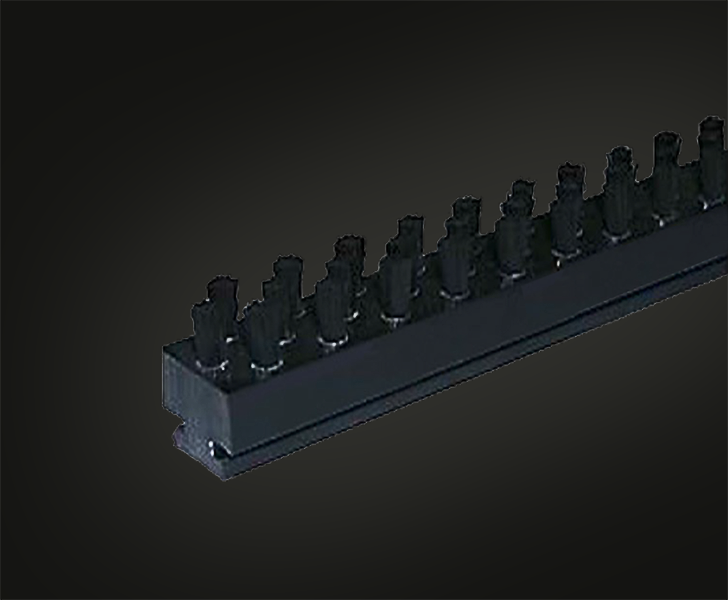

Supporting surfaces with brush strip
Screwing unit with mouthpiece with manual insertion funnel for second screw length
8-fold height adjustment for different screw driving heights
For orderly hardware storage at the sash assembly station
