EV
4A
home
/
product categories
/
Welding and cleaning machines

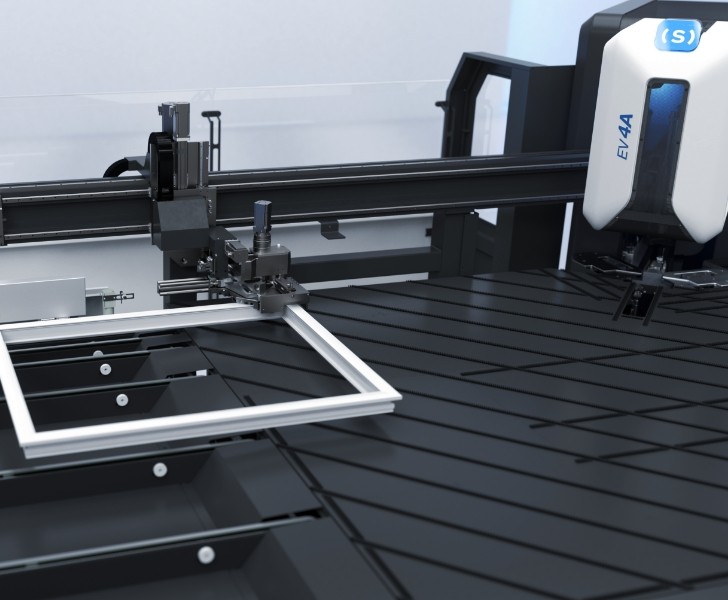

EV 4A is a CNC corner cleaning machine for PVC frames with 4 interpolated axes and automatic cycle which, when suitably configured, is able to recognize the size of the profile to be cleaned. It has a 275 mm diameter blade which allows, with different work programs, cleaning the outer corner on various profiles. EV 4A also has top and bottom units with knife for cleaning the welding beads plus top and bottom units with knives for cleaning the inner corners. Machining of the inner and outer corners can be completed with the top and bottom drilling/milling units for cleaning the corners or gasket grooves. The machining units can be programmed independently from each other via a CNC PC which controls programming of the profiles and machine operation (manual or automatic mode). When the machine is suitably configured with the necessary tools, it can handle all types of standard profiles including acrylic and coated profiles. EV 4A is available in three models: a manual version, a semiautomatic version (with turntable) and an automatic version (with turntable and outfeed table).
Estimate Request
picture_as_pdf
generate pdf
mail_outline
share by email
info_outline
request information
Technical data
arrow_drop_down
EV, POSITIONING SPEED
Y AXIS (m/min)
100
Z AXIS (m/min)
40
V AXIS (m/min)
100
W AXIS (m/min)
40
MANIPULATOR, POSITIONING SPEED
X AXIS (m/min) (linear movement of the gripper)
170
Q AXIS (m/min) (vertical movement of the gripper)
9
H AXIS (m/min) (cross movement of the gripper)
9
C AXIS (°/min) (rotary movement 0 – 90° of the gripper)
3.000
OUTFEED TABLE, POSITIONING SPEED
U AXIS (m/min)
40
FUNCTIONS
Positioning of the frame: manual or automatic with turntable (depending on model)
Milling of different profiles
Drilling for hinges
MACHINABLE SURFACES
With blade tool (external profile)
1
With top and bottom units plus knife (top and bottom surfaces, internal profile)
3
With milling unit (top and bottom surfaces)
2
WORK AREA
Maximum dimensions of the frame manually loaded: unlimited
Maximum dimensions of the frame automatically loaded (rotation table optional) (mm)
2.300 x 2.300 (3,7 kg/m) / 2.500 x 2.500 (2,8 kg/m)
Minimum dimensions of the frame, external measurement (mm)
350 x 350
Minimum dimensions of the frame, internal measurement (mm)
210 x 210
Maximum profile height (mm)
200
Minimum profile height (mm)
35
Maximum width of the profile (mm)
150
BLADE
Blade diameter (mm)
275
Blade support diameter (mm)
32
Blade speed (r.p.m.)
3.000
Electro spindle power (kW)
1,1
SAFETY DEVICES AND PROTECTIONS
Photoelectric barrier system to protect access to work zone for EV 4A automatic and semi-automatic version
Perimeter enclosure guard for EV 4A automatic and semi-automatic version
BASEMENT
Electrically welded and normalized steel basement
OVERALL DIMENSIONS AND POWER
Overall dimensions (width x length x height) (mm), manual version
3.560 x 3.780 x 2.250
Overall dimensions (width x length x height) (mm), with turntable
4.550 x 6.170 x 2.250
Overall dimensions (width x length x height) (mm), with turntable and outfeed table
5.530 x 9.000 x 2.250
Weight (kg), manual version
2.100
Weight (kg), with turntable
3.000
Weight (kg), with turntable and outfeed table
3.400
Average power consumption (kW), manual version
8
Average power consumption (kW), with turntable / with turntable and outfeed table
10
Compressed air consumption (Nl/min), manual version
80
Compressed air consumption (Nl/min), with turntable / with turntable and outfeed table
110
Included
Available
