Gasket trolley

home / product a to z / D

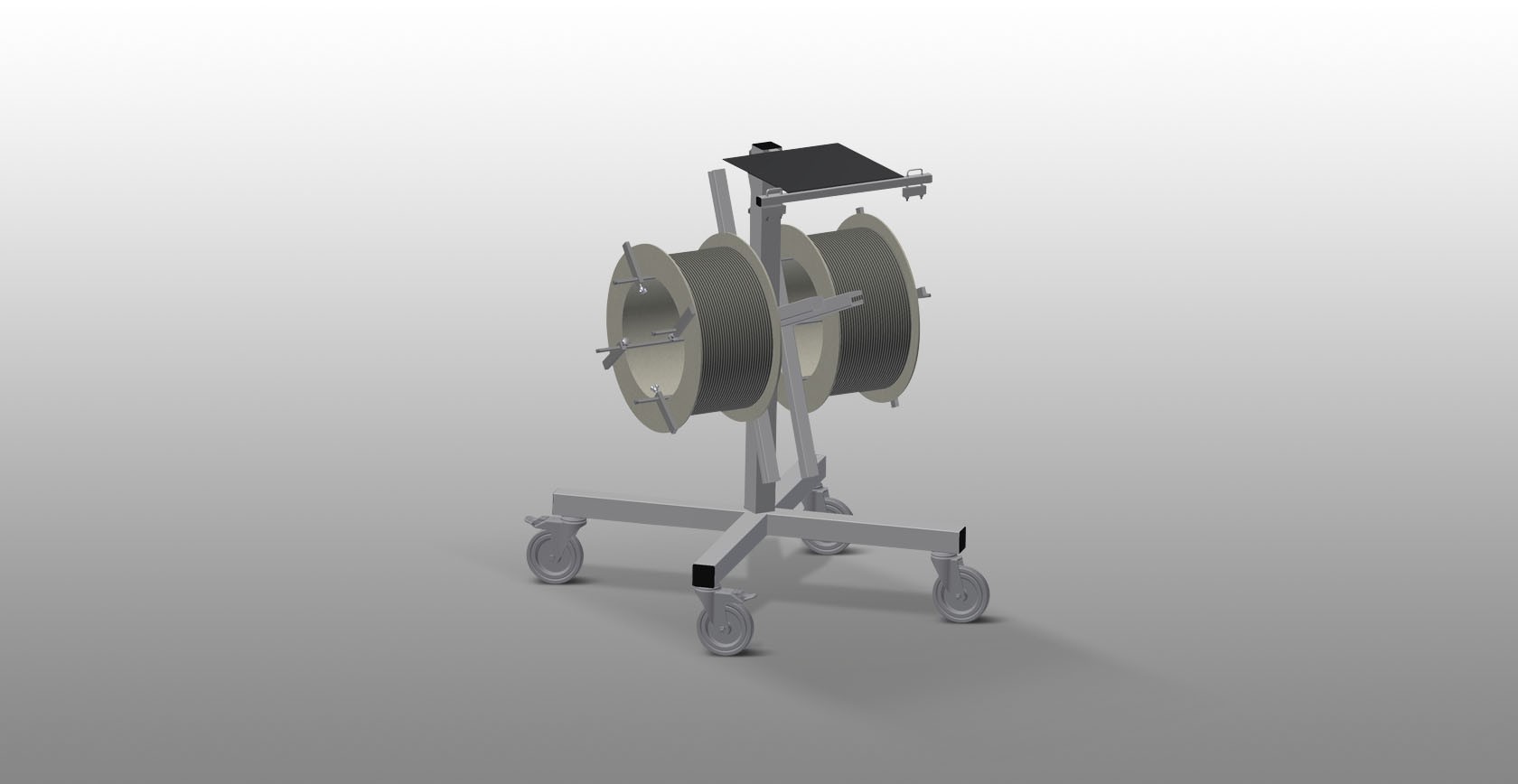

Gasket trolley for gasket reels. Stable steel construction. Two reel mounts. Indispensable for gasket insertion. Adjustable for any reel diameter. Tool tray. Four castors, two of which have a fixing brake.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
700
Width (mm)
700
Height (mm)
1.005
Reel holder
2
Maximum reel diameter (mm)
750
Maximum reel width (mm)
250
Weight (kg)
25
Swivel castors diameter (mm)
125
Swivel castors
4
Swivel castors with locking stop
2
Included
Available

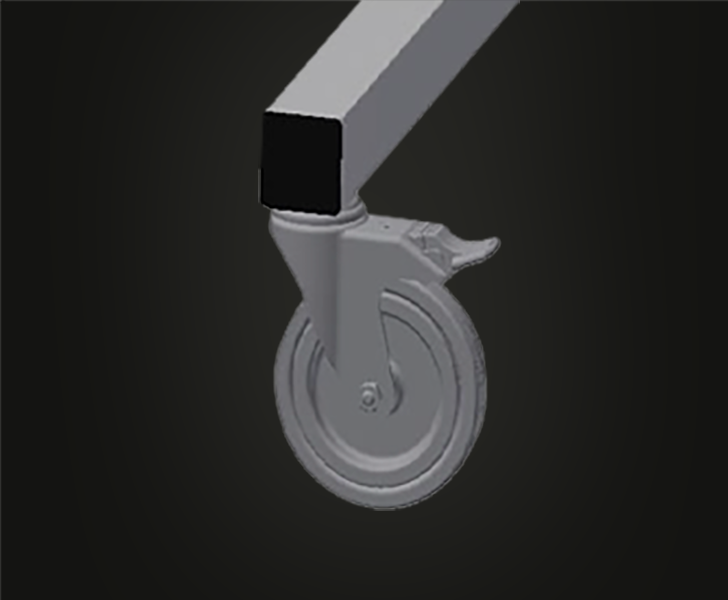

Casters

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

DW 2 Casters Someco
DW 2 Reel mounts Someco

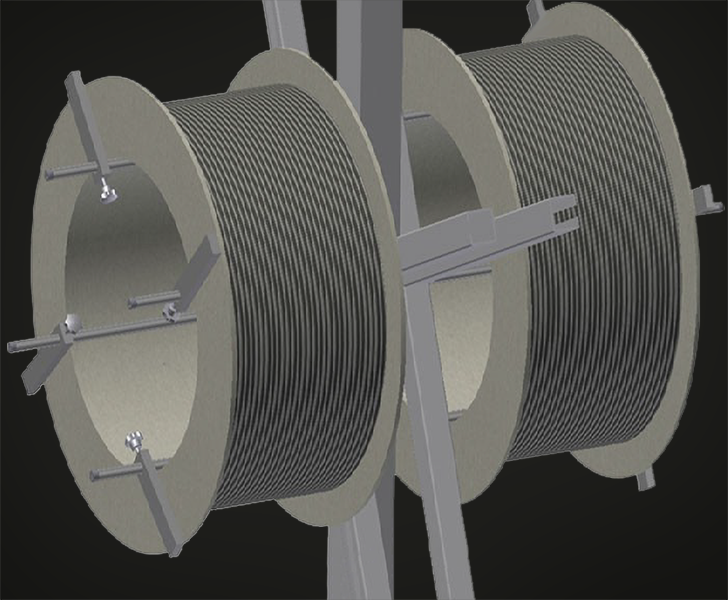

Reel mounts

For two gasket reels. Mounts adjustable for any reel size

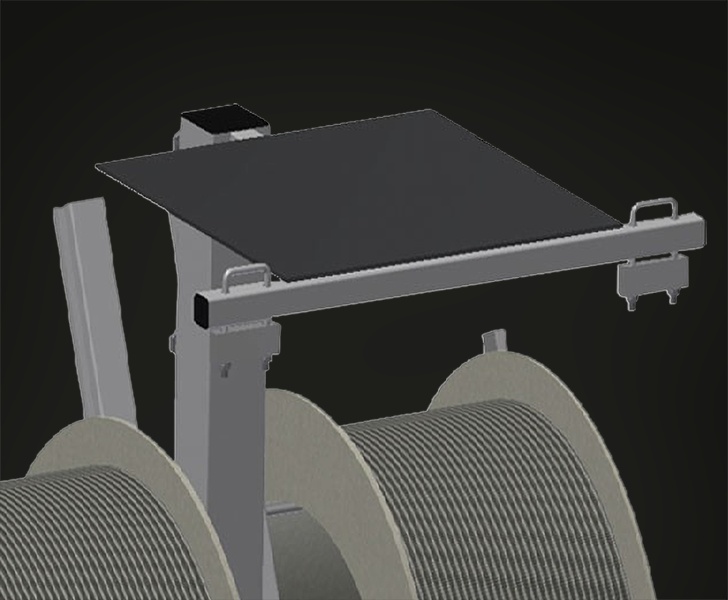

Storage area for tools

Practical tool tray located at working height

DW 2 Storage area for tools Someco
DW 2 Unwinding brake Someco

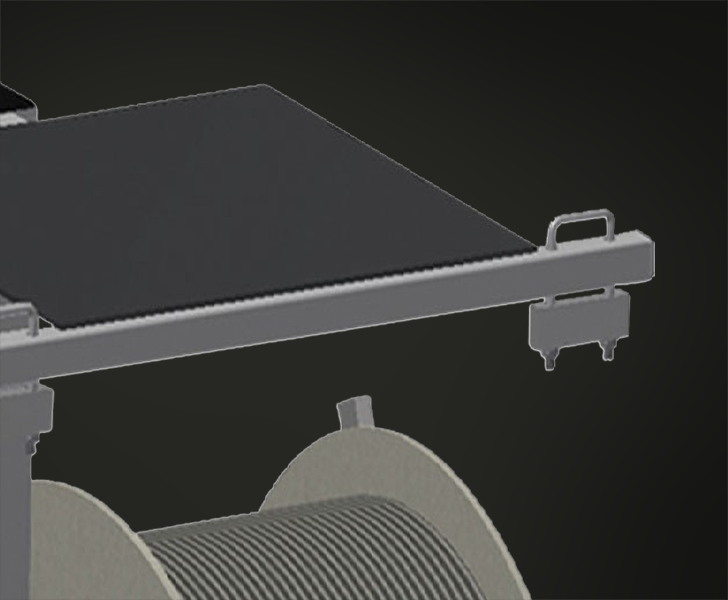

Unwinding brake

Unwinding brake for each reel

Technical data arrow_drop_down

Technical Data

  • Length 700 mm
  • Width 700 mm
  • Height 1,005 mm
  • Two reel mounts
  • Max. reel diameter 750 mm
  • Max. reel width 250 mm
  • Weight 25 kg
  • Roller diameter 125 mm
