FFR  10
Sash rack

home / product a to z / F

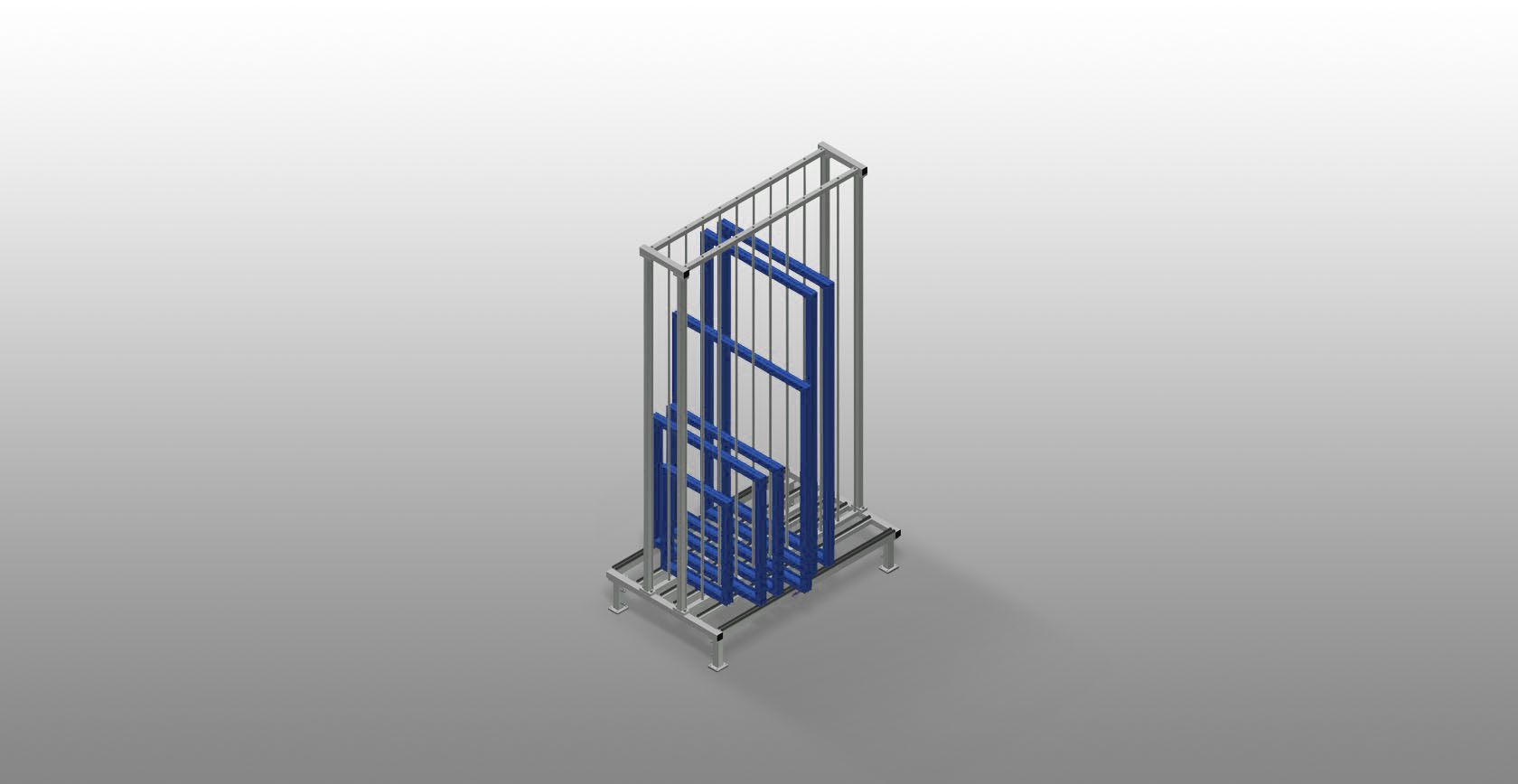

Rack for storage of window elements. Stable steel construction. Rack for storage of window sashes. The individual elements are available for direct access. Specially designed for integration in assembly lines. Access is possible from both sides. Supporting surfaces with support rollers for even easier loading and unloading. Compartment separating bars covered with protective tubing. Options: mobile as trolley on request – RFR 10/FFR 10; profile protectors for support rollers (alum.).
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
1.820
Width (mm)
1.000
Height (mm)
2.965
Compartments
10
Compartment width (mm)
130
Compartment height (mm)
2.600
Weight (kg)
250
Load capacity (kg)
800
Floor support equipped with knob profile

Compartment separating bars covered with protective tubing

Supporting surface with rollers

Rollers and handle

Included
Available

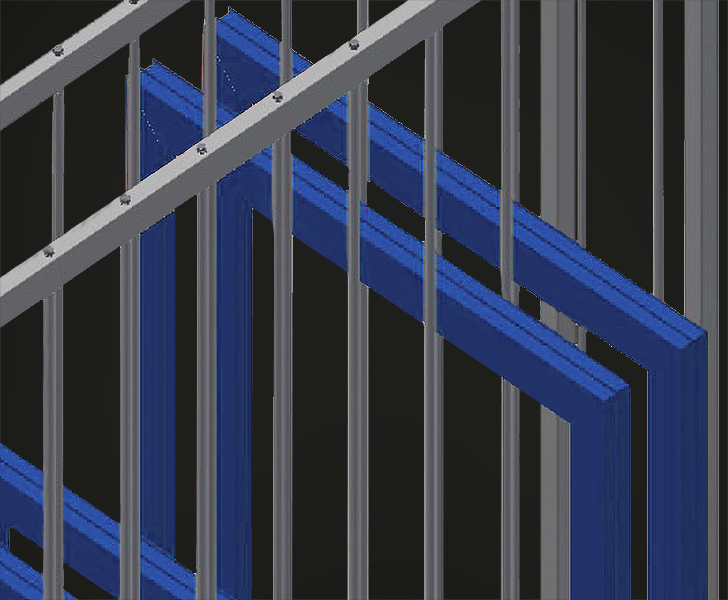

Compartments

All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage

FFR 10 Compartments Someco
FFR 10 Supports Someco

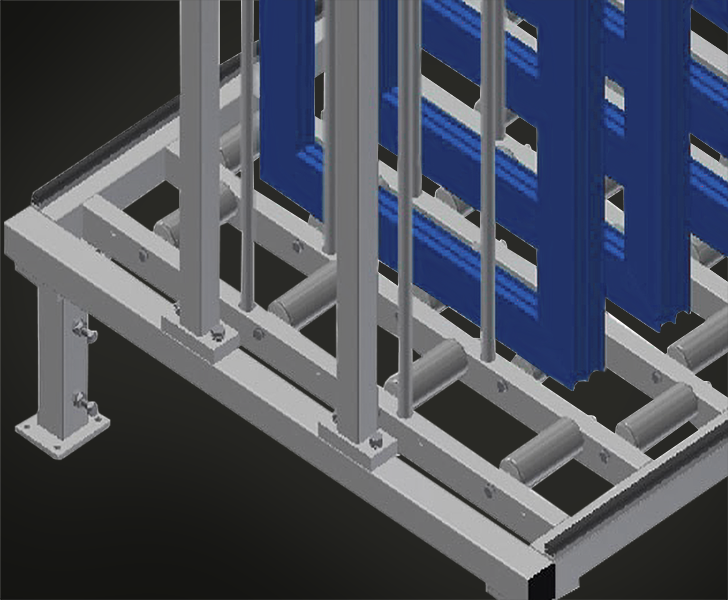

Supports

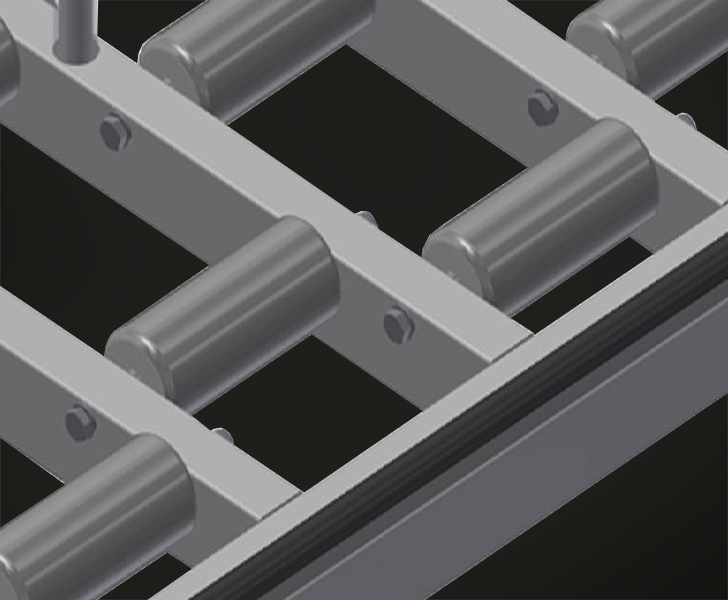

Lower storage area with support rollers for easier loading and unloading

Profile protectors

Profile protectors for support rollers 3x120 mm (Alum./48 x), support rollers covered with protective tubing

FFR 10 Profile protectors Someco
FFR 10 Casters, cmpl. Someco

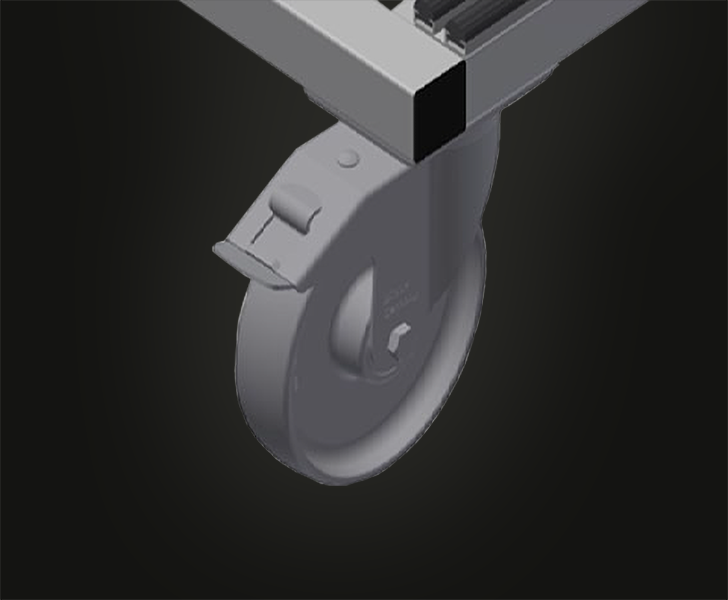

Casters, cmpl. (Optional)

Two casters with brake and two fixed rollers provide mobility in all directions, roller diameter 125 mm

Technical data arrow_drop_down

Technical Data

  • Length 1,820 mm
  • Width 1,000 mm
  • Height 2,965 mm
  • Ten compartments
  • Compartment width 130 mm
  • Compartment height 2,600 mm
  • Weight 250 kg
  • Load 800 kg
