ME-R

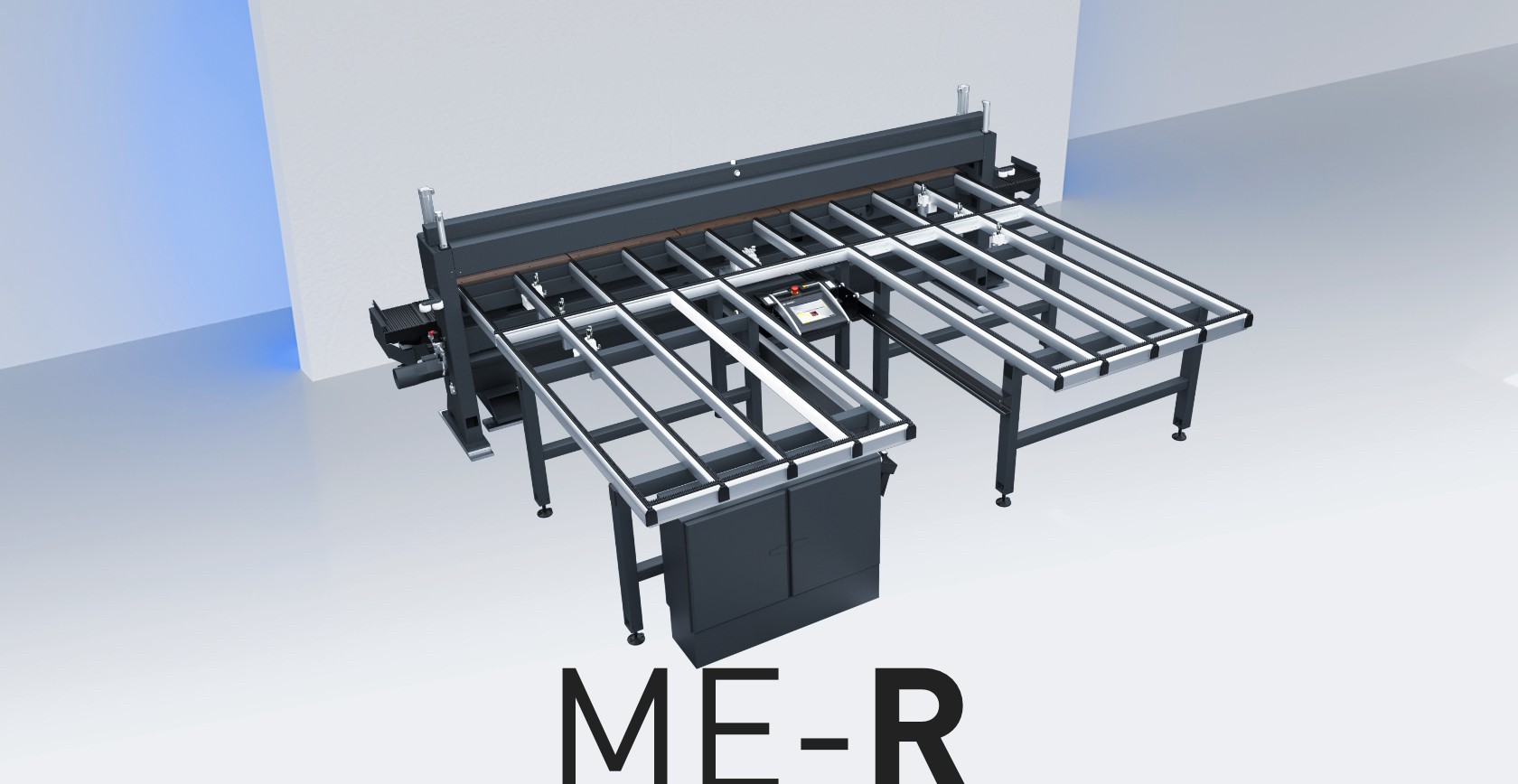

ME-R is a semiautomatic-cycle trimming machine for PVC frames with two controlled axes. It is equipped with a CN cutting unit with adjustable advancement speed.
Technical data arrow_drop_down
CHARACTERISTICS
Number of controlled axes
2
X axis stroke (mm)
3.100
Y axis stroke (mm)
70
X axis speed (m/min)
20
Max. air consumption (Nl/min)
25
Installed power (kW)
2,6
CUTTING UNIT
Rated power (kW)
2,2
Blade speed (rpm)
2.880
Blade diameter (mm)
400
FUNCTIONS
Manual frame positioning

WORKPIECE LOCKING
Pneumatic frame locking system with longitudinal hold-down device

Pneumatic profile alignment and straightening device

Workpiece reference stop near the machining unit

Retractable workpiece reference side stop in proximity of the machining unit for line operation

Profile locking dimension (mm)
40 ÷ 90
Maximum machinable square dimension - outer measurement (mm)
3.000 x 2.500
Minimum machinable square dimension - outer measurement (mm)
400 x 400
Maximum machinable profile height (mm)
90
Min. machinable profile height (mm)
40
Maximum machinable profile width (mm)
130
Max. machinable flap width (mm)
65
WORK BENCHES
Contact surfaces covered with brushes

Work surface height (mm)
950
Included
Available
CN cutting unit

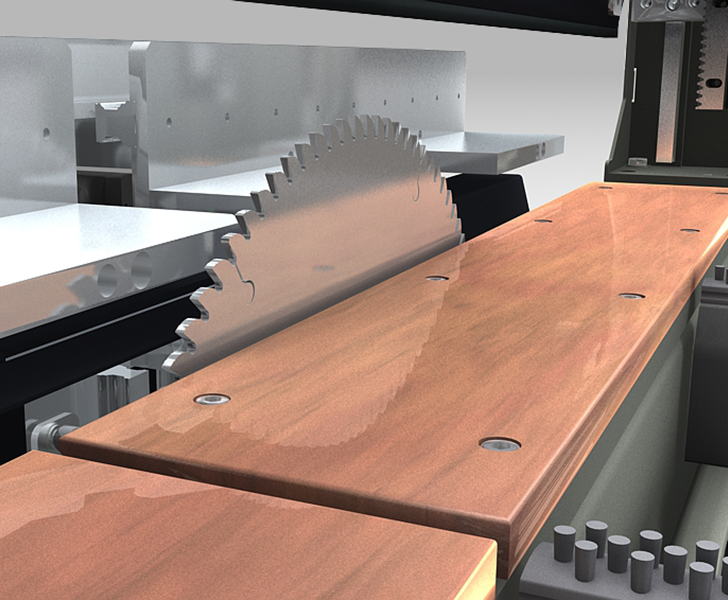

The cutting unit, including an integrated trim management device, is the heart of the system. It is equipped with a suction hood and in conjunction with its own exhauster ensures optimal removal of machining scraps.

ME-R CN cutting unit Someco
ME-R Wide supporting surface Someco
Wide supporting surface

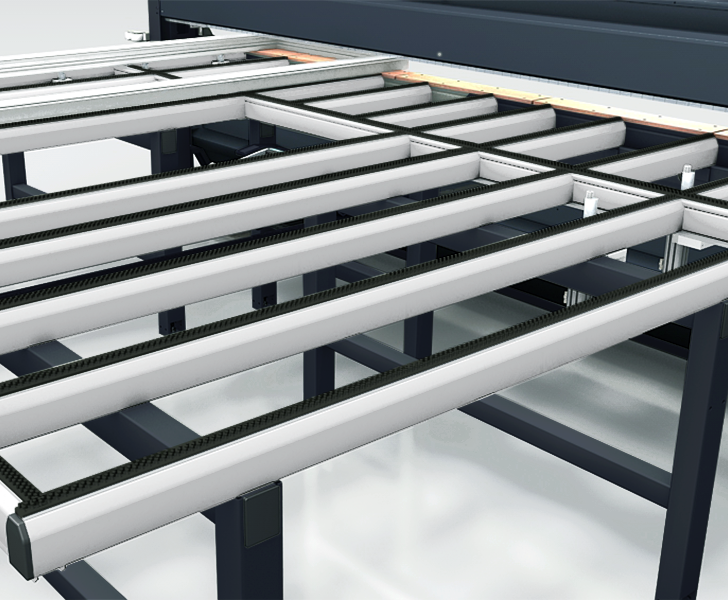

The work bench is very wide and customisable to allow the translation of even large formats. Upon request it is equipped with pneumatic bench exchange to enable on the same bench also the assembly of windows.

CN depth stop

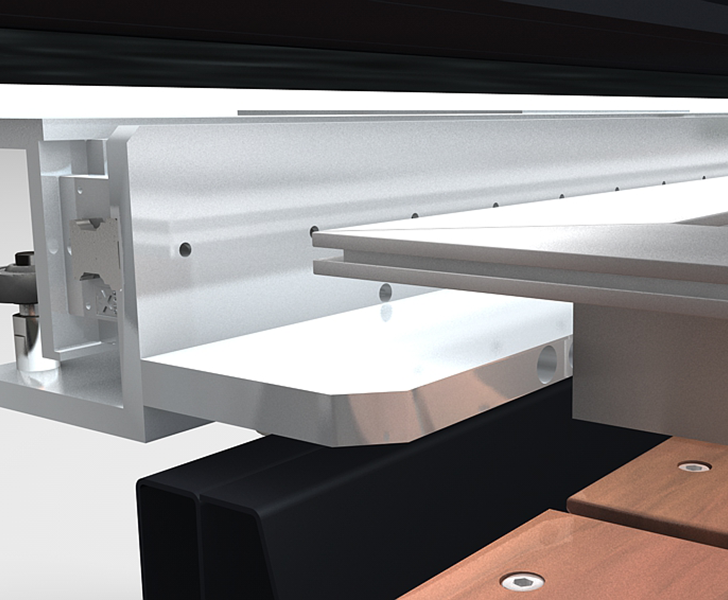

The reference device located near the blade ensures accurate and quiet positioning of the square to be trimmed. Its adjustment range is from 0 to 70 mm. With large formats, the device automatically expands the stop dimension to ensure perfect parallelism.

ME-R CN depth stop Someco
ME-R Hot and cold side profile trimming Someco
Hot and cold side profile trimming

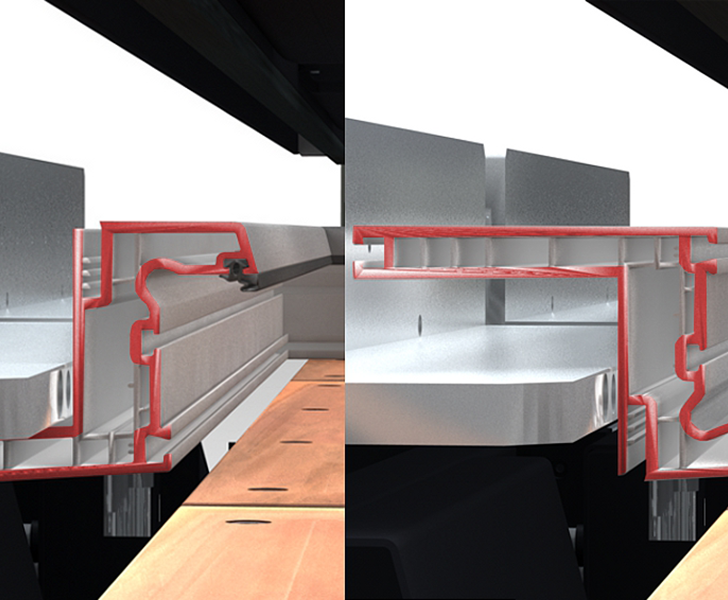

Machining on the cold side of the frame, a typical position coming out of an automatic corner cleaning machine, is best suited for in-line operation. With a properly equipped work bench, a series of perimeter assembly/final inspections/checks can be performed on the frame itself. Machining on the hot side allows for the best assessment of the quality level of the cleaning stage. This mode limits the machinable flap thickness to a maximum of 18 mm.

Control

The ergonomic state-of-the-art control panel features a 10.4” touchscreen display and fully customised software and is packed with functions developed in the Microsoft Windows® environment specifically for this machine.

ME-R Control Someco
ME-R Radio barcode reader Someco
Radio barcode reader (Optional)

The radio barcode reader automatically recognises the piece by means of the barcode label. Any workpiece can be loaded into the machine and the machining centre automatically prepares to perform all machining operations by reading the barcode on the label applied, greatly reducing cycle times and with no possibility of error. The radio barcode reader allows to move freely into working area by performing wireless data transmission with maximum practicality for the operator.
