PWW

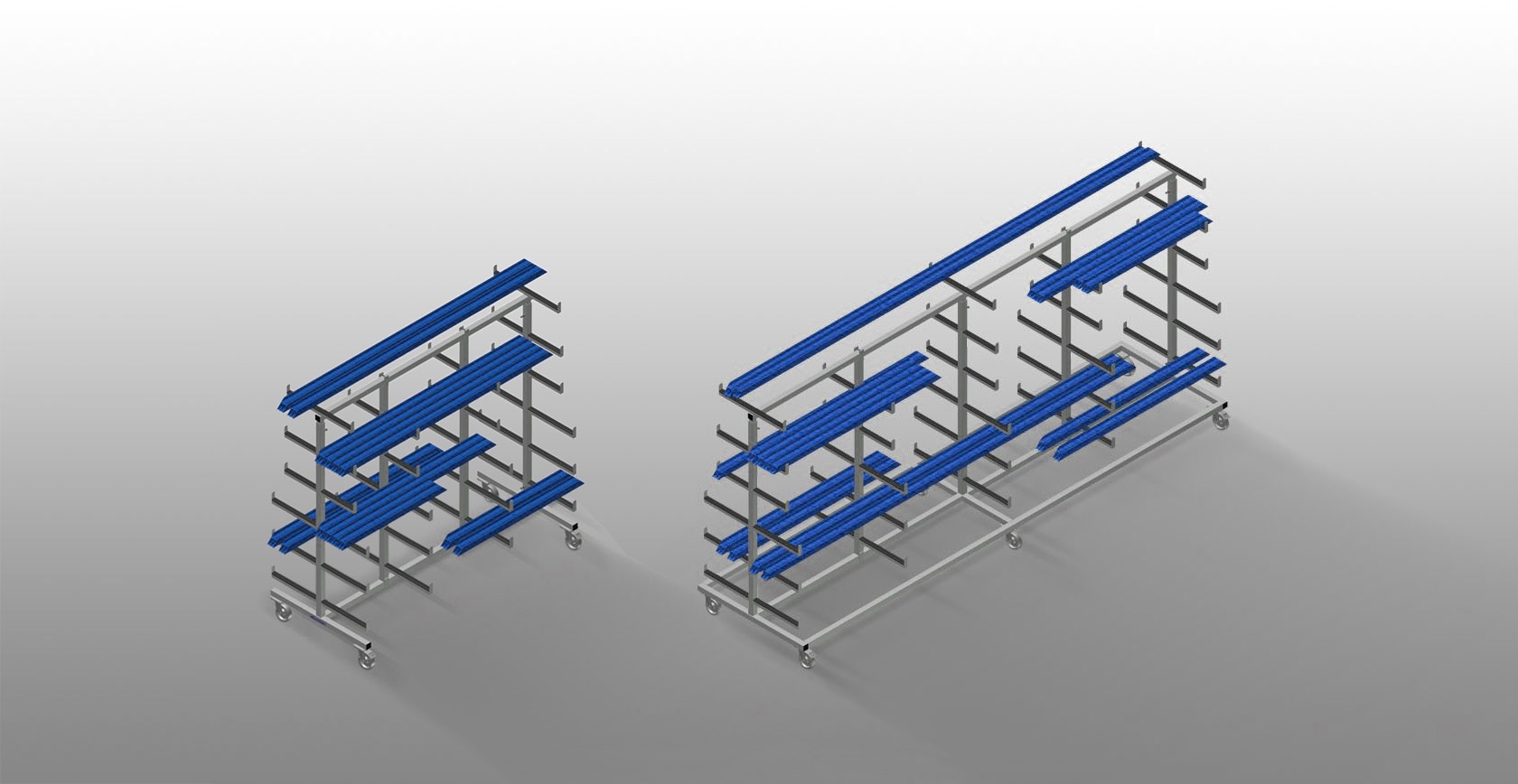

Profile transport trolley

Profile trolley for horizontal storage and transportation of profiles. Stable steel construction. Horizontal profile transportation. Easy transportation of profile raw materials and cut-to-size profiles. Support arms are rubber coated. Profile trolley with profile supports on both sides. Six supports per upright.

PWW 1000: One centre upright. Four swivel castors, two of which with locking stop.

PWW 2000: Two centre uprights. Four swivel castors, two of which with locking stop.

PWW 4000: Three centre uprights. Six swivel castors, two of which with locking stop.

Technical data arrow_drop_down
MODELS
DIMENSION AND WEIGHT

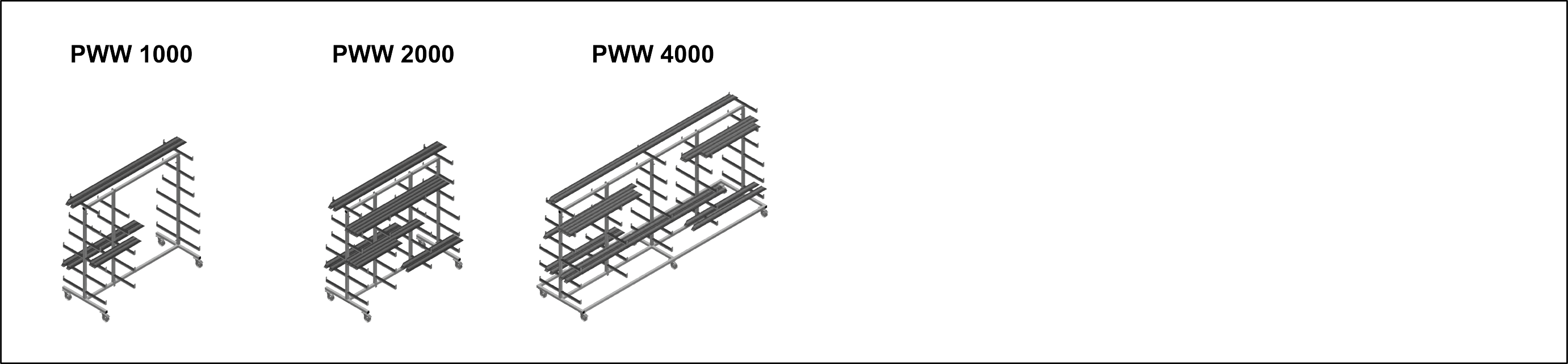

PWW 1000 / PWW 2000 / PWW 4000

Length (mm)
1.625 / 2.000 / 4.000
Width (mm)
900 / 900 / 1.000
Height (mm)
1.960
Weight (kg)
60 / 75 / 130
STORAGE CAPACITY

PWW 1000 / PWW 2000 / PWW 4000

Shelves
11
Clearance (mm)
260
Lower shelf width (mm)
420
Upper shelf width (mm)
300
Load capacity (kg)
350 / 350 / 500
CHARACTERISTICS

PWW 1000 / PWW 2000 / PWW 4000

Centre upright
1 / 2 / 3
Swivel castors
4 / 4 / 6
Swivel castors with locking stop
2
Swivel castors diameter (mm)
125

PWW 1000 / PWW 2000

Individual centre upright

Included
Available
Easy loading and unloading

Well-organised storage provides quick access

PWW Easy loading and unloading Someco
PWW Support arms Someco
Support arms

Support arms are rubber coated.Adjustable centre upright

Casters

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

PWW Casters Someco
PWW Individual centre upright PWW 1000 / PWW 2000 Someco
Individual centre upright PWW 1000 / PWW 2000 (Optional)

Additional centre uprights
