PWS
Profile transport trolley

home / product a to z / P

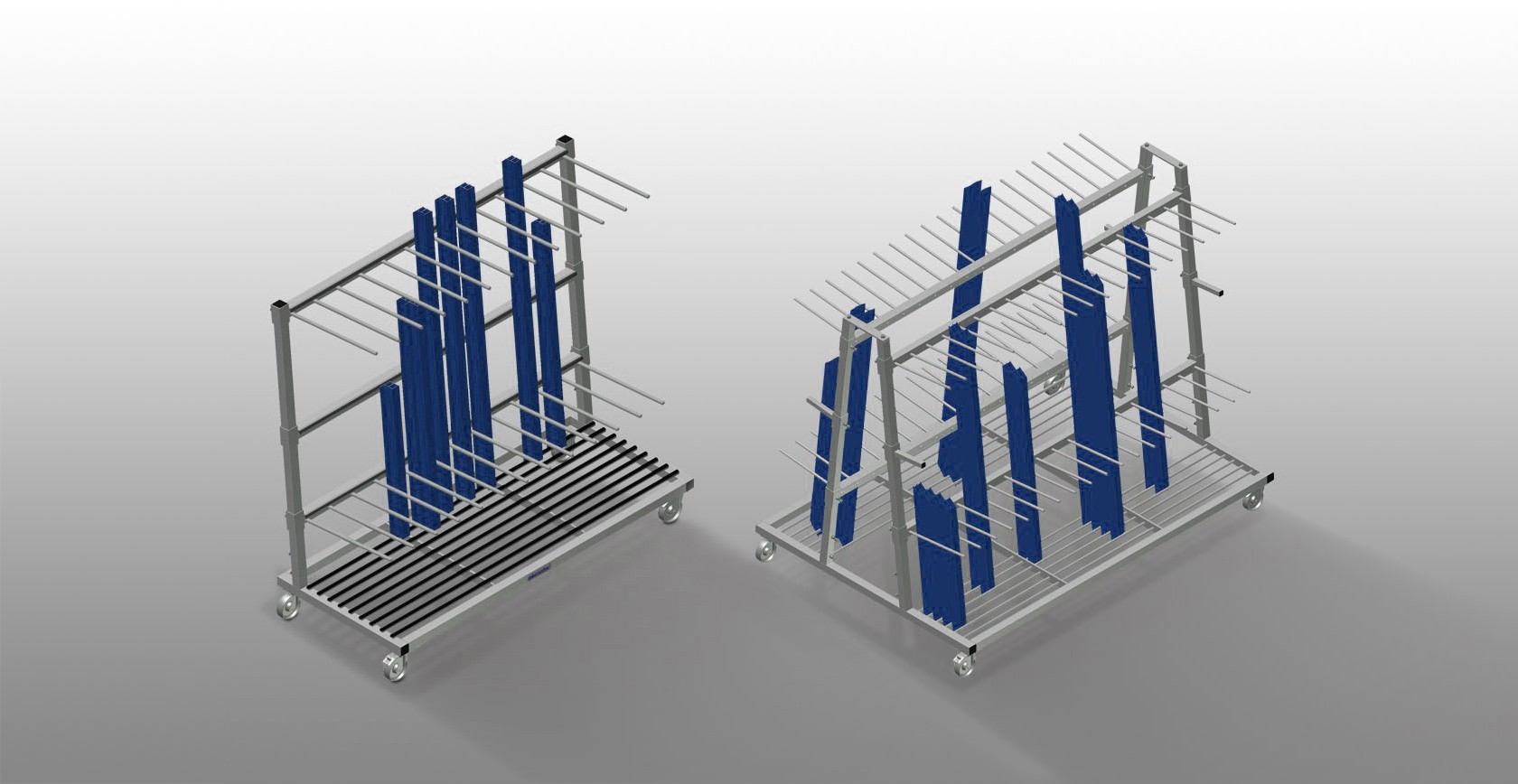

Profile trolley for vertical storage and transportation of aluminium profiles. Stable steel construction. Ideal for transportation and space-saving intermediate storage of cut-to-length profiles. Easy loading and unloading. Compartment divider height is adjustable. Four swivel castors, two of which with locking stop.

PWS 1000: Vertical profile transportation. Profile trolley with loading on one side. Sufficient for 30-40 profile bars. Supporting surface with bar grid floor.

PWS 1400: Vertical profile transportation. Sufficient for 30-40 profile bars. Lower supporting surface with rubber strips. Compartment dividers with protective tubing. Rear back support with rubber strips.

PWS 1800: Vertical profile transportation. Sufficient for 12-60 profile bars. Lower supporting surface with rubber strips. Compartment dividers with protective tubing. Rear back support with rubber strips.

PWS 2000: Vertical profile transportation. Profile trolley with loading on one side. Sufficient for 60-80 profile bars. Supporting surface with bar grid floor.

PWS 4000: Vertical profile transportation. Profile trolley can be loaded on both sides. 18 compartments per side. Sufficient for 120-160 profile bars. Supporting surface with bar grid floor.

Technical data arrow_drop_down
MODELS

DIMENSION AND WEIGHT

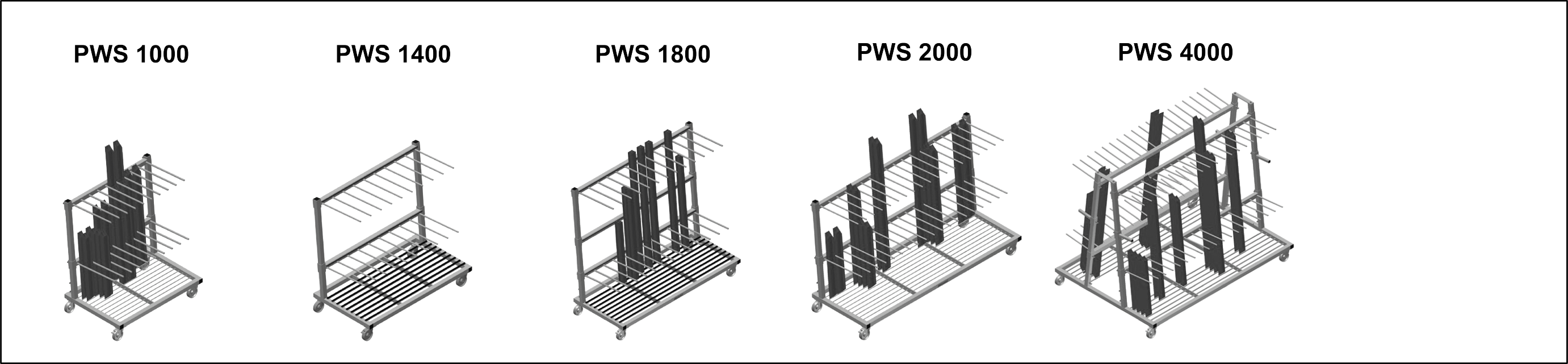

PWS 1000 / PWS 1400 / PWS 1800 / PWS 2000 / PWS 4000

Length (mm)
1.200 / 1.440 / 1.880 / 2.230 / 2.230
Width (mm)
800 / 790 / 800 / 800 / 1.560
Height (mm)
1.360 / 1.360 / 1.700 / 1.360 / 1.850
Weight (kg)
60 / 72 / 105 / 105 / 200
STORAGE CAPACITY

PWS 1000 / PWS 1400 / PWS 1800 / PWS 2000 / PWS 4000

Compartment dividers
2 / 2 / 2 / 2 / 4
Compartments
9 / 9 / 12 / 18 / 36
Compartment width (mm)
100 / 120 / 120 / 100 / 100
Compartment depth (mm)
540 / 540 / 540 / 540 / 400
Support height (mm)
1.150 / 1.150 / 1.500 / 1.150 / 1.620
Load capacity (kg)
350 / 350 / 350 / 350 / 600
Quantity of profile bars
30-40 / 30-40 / 12-60 / 60-80 / 120-160

PWS 4000

Compartments per side
18
CHARACTERISTICS

PWS 1000 / PWS 1400 / PWS 1800 / PWS 2000

Profile trolley with loading on one side


PWS 4000

Profile trolley can be loaded on both sides


PWS 1000 / PWS 2000 / PWS 4000

Supporting surface with bar grid floor

Compartment dividers with protective tubing


PWS 1400 / PWS 1800

Compartment dividers with protective tubing

Lower supporting surface with rubber strips

Rear back support with rubber strips


PWS 1800

Additional height adjustable compartment divider with plastic protection


PWS 1000 / PWS 1400 / PWS 1800 / PWS 2000 / PWS 4000

Swivel castors diameter (mm)
125
Included
Available
Easy loading and unloading PWS 1000 / PWS 2000
Profile trolley with loading on one side
PWS Easy loading and unloading PWS 1000 / PWS 2000 Someco
PWS Easy loading and unloading PWS 4000 Someco
Easy loading and unloading PWS 4000
Profile trolley with loading on two sides

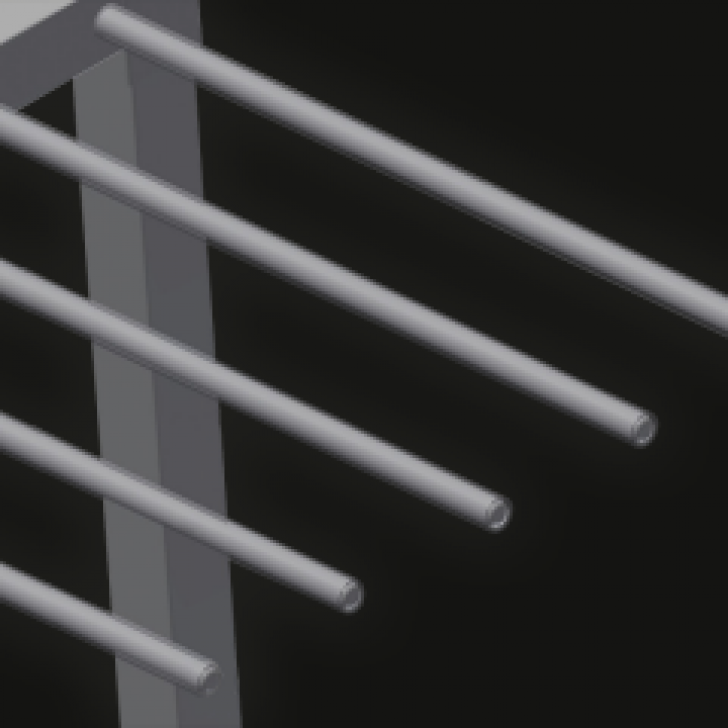

Compartment dividers PWS 1000 / PWS 2000
Compartment divider height is adjustable. Compartment width 100 mm. Compartment depth 540 mm
PWS Compartment dividers PWS 1000 / PWS 2000 Someco
PWS Compartment dividers PWS 4000 Someco
Compartment dividers PWS 4000
Compartment divider height is adjustable. Compartment width 100 mm. Compartment depth 400 mm
Compartment divider with plastic protector PWS 1400 / PWS 1800
Compartment divider height is adjustable. All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage
PWS Compartment divider with plastic protector PWS 1400 / PWS 1800 Someco
PWS Supporting surface PWS 1000 / PWS 2000 Someco
Supporting surface PWS 1000 / PWS 2000
Supporting surface with bar grid floor
Supporting surface PWS 4000
Supporting surface with bar grid floor
PWS Supporting surface PWS 4000 Someco
PWS Back support with rubber strips PWS 1400 / PWS 1800 Someco
Back support with rubber strips PWS 1400 / PWS 1800
Rear supporting surfaces equipped with rubber strips protect profiles from damage
Lower supporting surfaces with rubber strips PWS 1400 / PWS 1800
Lower supporting surfaces equipped with rubber strips to protect the profiles from damage
PWS Lower supporting surfaces with rubber strips PWS 1400 / PWS 1800 Someco
PWS Casters Someco
Casters

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

Plastic protector PWS 1000 / PWS 2000 / PWS 4000 (Optional)
All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage
PWS Plastic protector PWS 1000 / PWS 2000 / PWS 4000 Someco
PWS Additional compartment divider PWS 1800 Someco
Additional compartment divider PWS 1800 (Optional)
Additional compartment divider with height adjustment and plastic protector

Other Products

PLW Someco
PLW

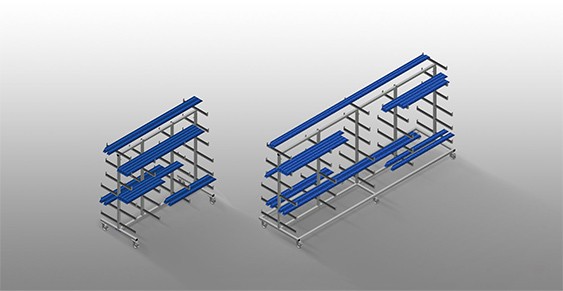

PWW Someco
