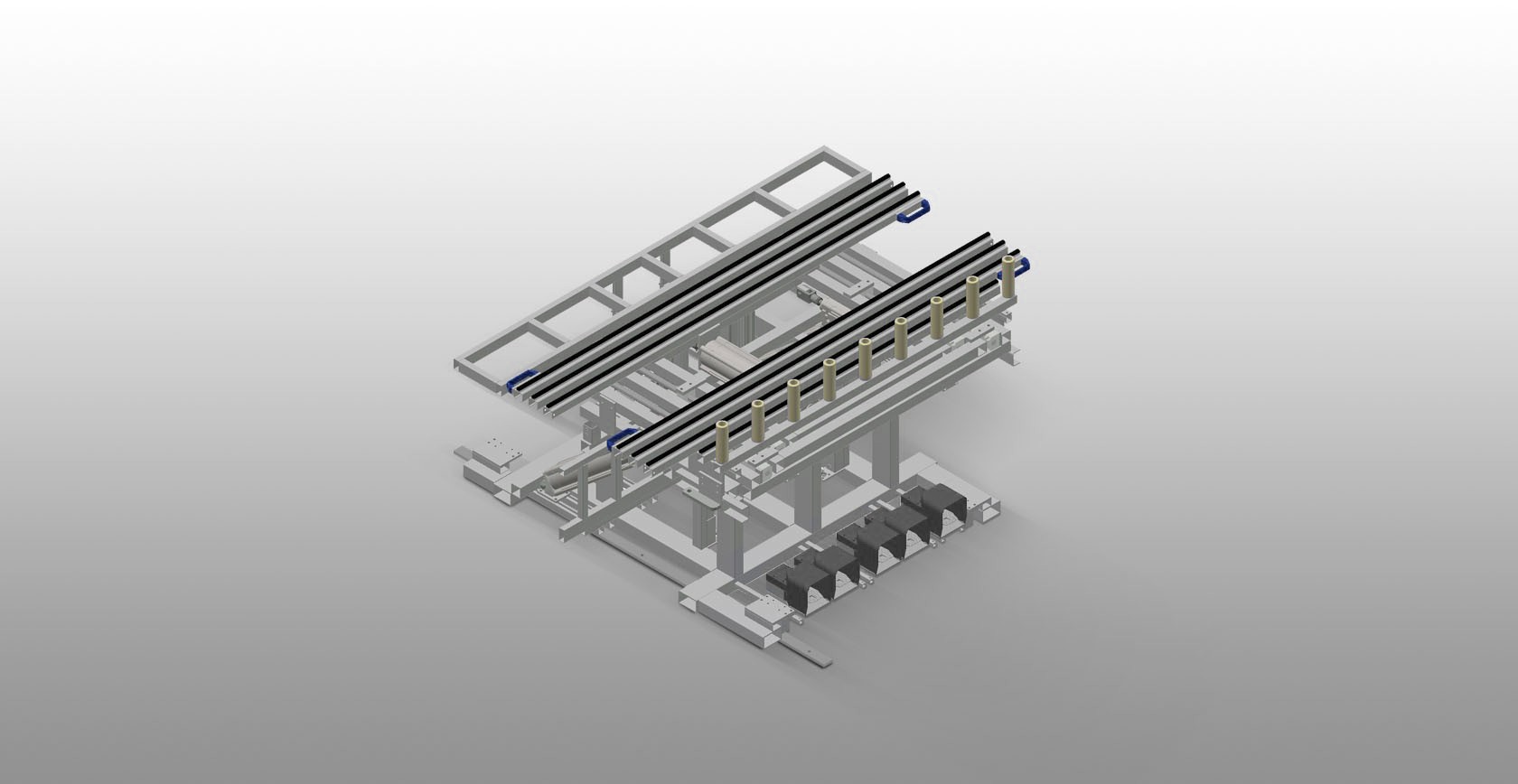

RMT  1400
Roller shutter box assembly table

home / product a to z / R
Stable steel construction. Tilting assembly table with draw-in unit. Basic dimensions 1.400 x 2.000 mm, when pulled out 2.000 x 2.800 mm. Pull-out work platform consisting of two supporting beams, clad with brush strip. Minimum size of work platform 2.000 x 1.000 mm. Maximum size of work platform 2.800 x 2.000 mm. Two supporting beams form a frame, the height of which can be adjusted pneumatically and continuously from 1.000 to 2.000 mm. Lifting and tilting unit with foot valve. Fixed roller conveyor with lifting unit, 100 mm. Lifting unit for transferring / receiving from the roller conveyor. Roller conveyor open at front for drawing in to transfer roller conveyor. Mobility unit with flanged rollers and pneumatic fixing brake with operation from side. Optional: table supporting surface with felt profile strip for RMT 1400; auxiliary clamp with hand valve.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
2.000
Width (mm)
1.620
Weight (kg)
450
Load capacity (kg)
300
Working height (mm)
950
Roller conveyor length (mm)
1.600
Roller diameter (mm)
50
Roller length (mm)
150
Tilt of supporting surface
8°
Depth of support table (mm)
200
Length of support table (mm)
2.000
Included
Available

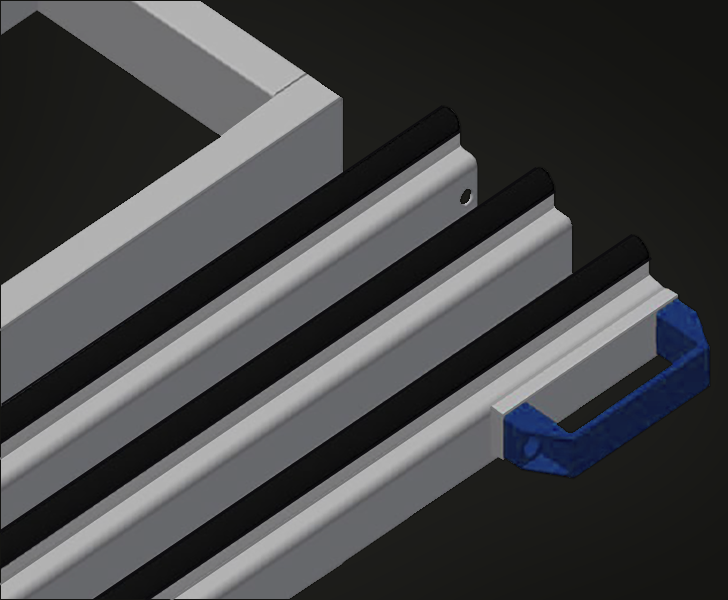

Supporting surface

Table supporting surface with brush strips

RMT 1400 Supporting surface Someco
RMT 1400 Worktable Someco

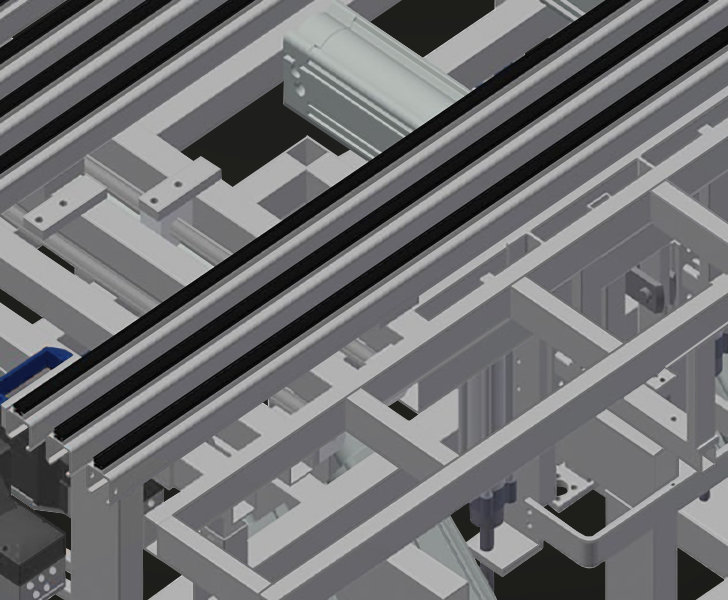

Worktable

Height of support table adjustable to 230 mm below the work surface. Depth of support table 250 mm, length 2.000 mm

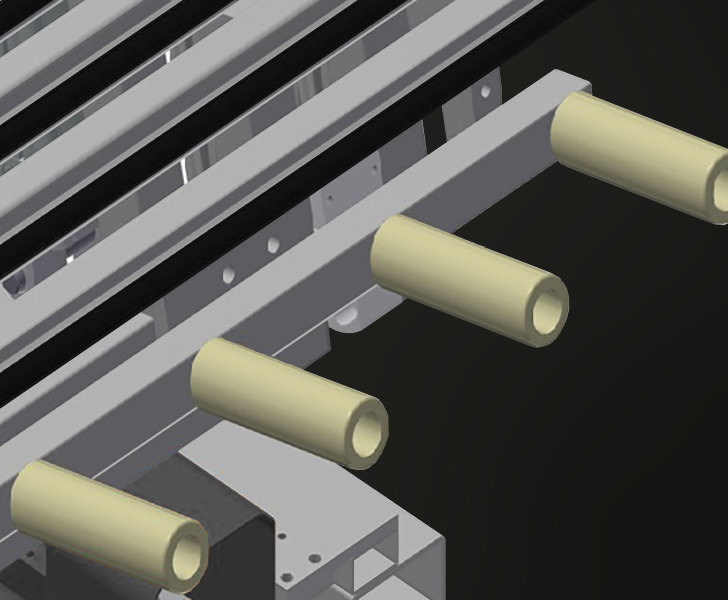

Roller support

Roller conveyor open at front for drawing in to transfer roller conveyor. Fixed roller conveyor with lifting unit, 100 mm. Lifting unit for transferring / receiving from the roller conveyor

RMT 1400 Roller support Someco
RMT 1400 Foot switch Someco

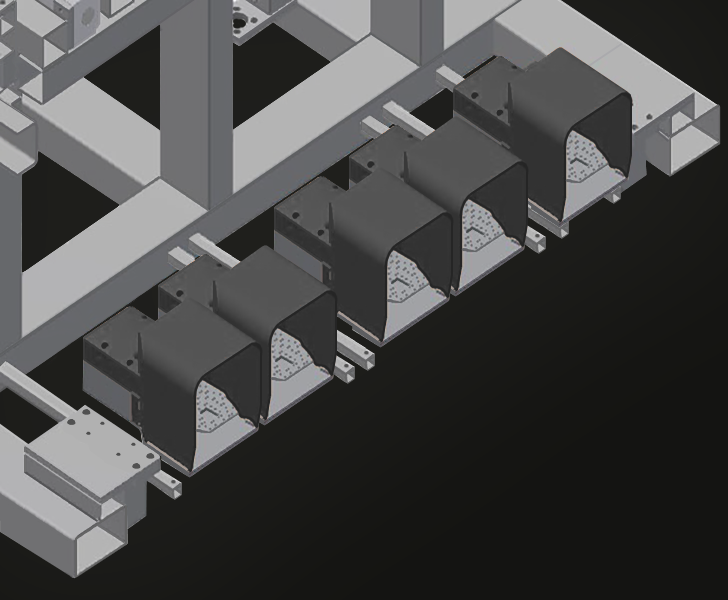

Foot switch

Control via foot valve. Lifting and tilting unit with foot valve

Mobility unit

Mobility unit with flanged rollers and pneumatic fixing brake with operation from both sides

RMT 1400 Mobility unit Someco
RMT 1400 Rail Someco

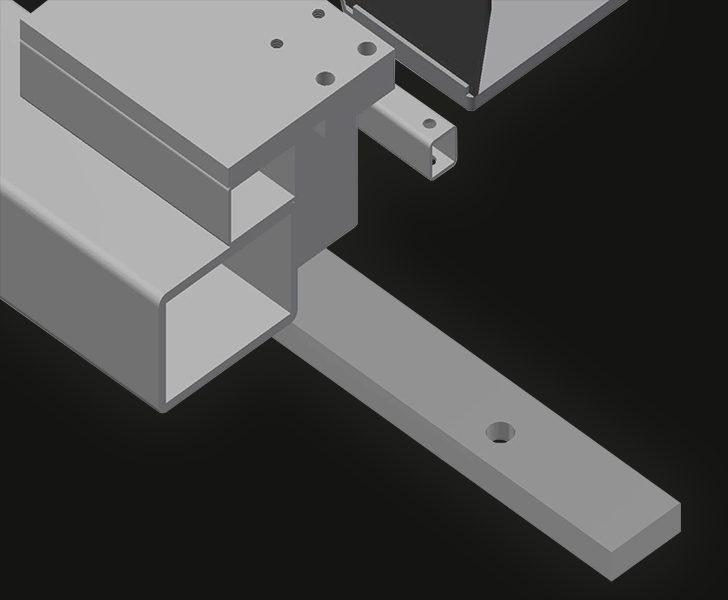

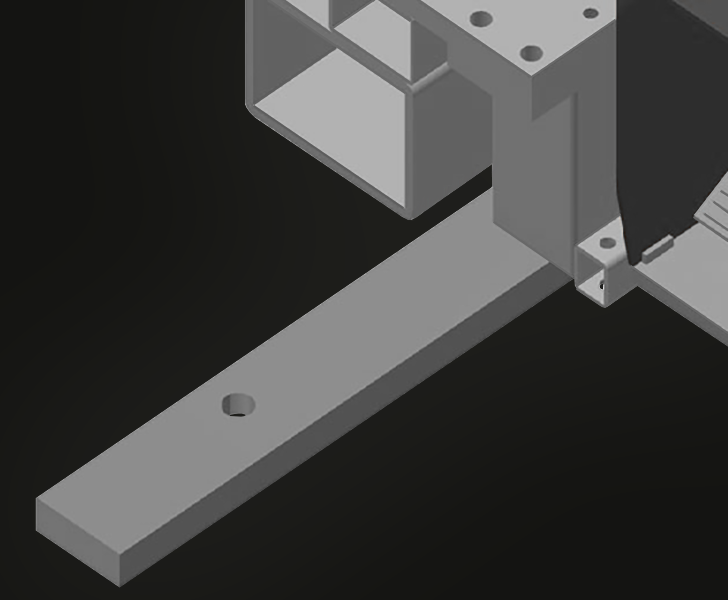

Rail (Optional)

Rails 2,0 m, left and right

Felt strip (Optional)

Supporting surfaces with felt strip

RMT 1400 Felt strip Someco
RMT 1400 Auxiliary clamp Someco

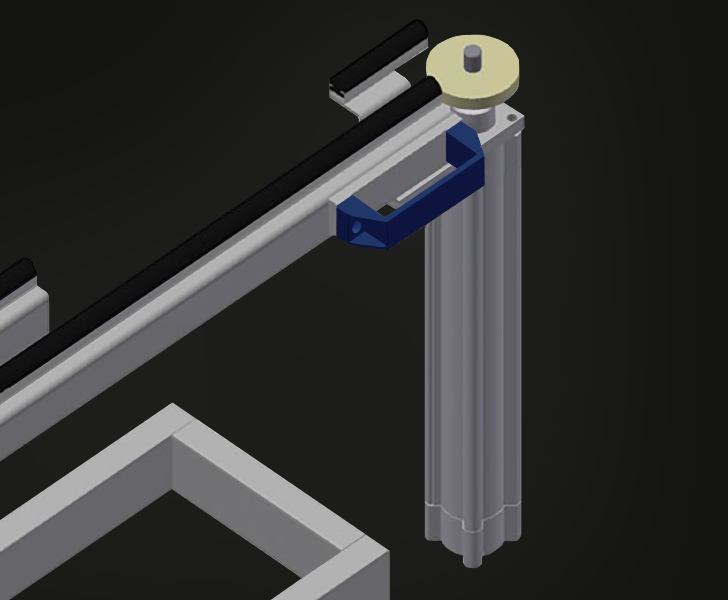

Auxiliary clamp (Optional)

Auxiliary clamp with hand valve. Auxiliary clamps provide extra security when machining.

Technical data arrow_drop_down



Technical Data

  • Working height 950 mm
  • Roller conveyor length 1,600 mm
  • Roller diameter 50 mm
  • Roller length 150 mm
  • Tilt of supporting surface 8°
  • Depth of support table 200 mm
  • Length of support table 2,000 mm
  • Weight 450 kg
  • Load 300 kg
  • Length 2,000 mm
  • Width 1,620 mm

Other Products

RF 1000 Someco
RF

1000
RFR 10 Someco
RFR

10
RFR 10/01 Someco
RFR

10/01
RFR 10/02 Someco
RFR

10/02

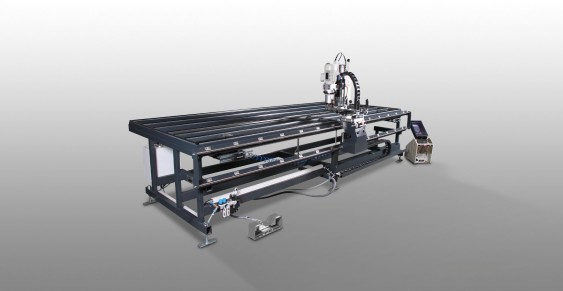

RMZ 4000 Someco
