RF  1000

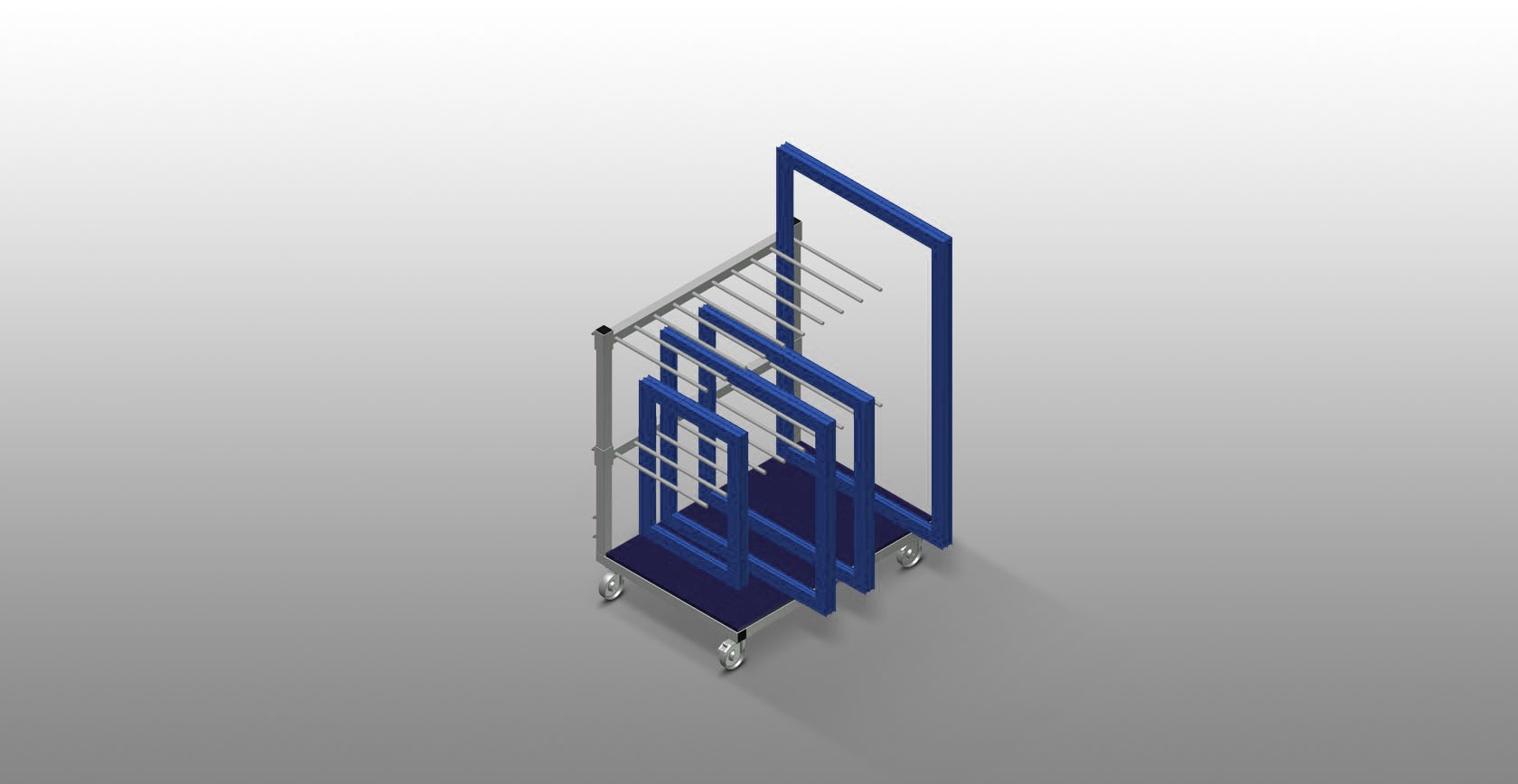

Frame transport trolley

Profile trolley for in-house transportation of frames and sashes. Stable steel construction. Trolley with sorting rack for transportation and storage of frames and sashes. Hardwood supporting surface. Compartment dividers for nine frames. Compartment divider height is adjustable. Four castors, two of which have a fixing brake. Option: plastic protector for RF 1000.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
1.180
Width (mm)
850
Height (mm)
1.360
Compartment dividers
2
Compartments
9
Swivel castors diameter (mm)
125
Swivel castors
4
Swivel castors with locking stop
2
Compartment width (mm)
100
Compartment depth (mm)
540
Support height (mm)
1.150
Weight (kg)
65
Load capacity (kg)
400
Plastic protection

Included
Available
Easy loading and unloading

Direct access to each element

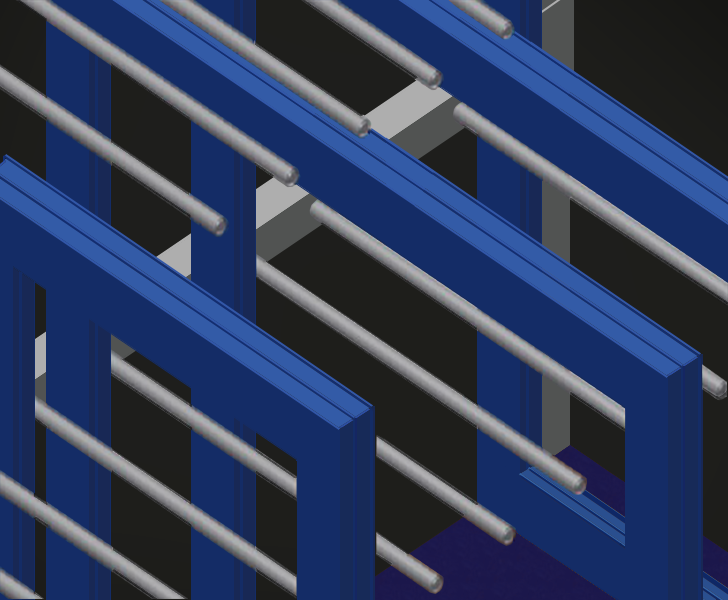

RF 1000 Easy loading and unloading Someco

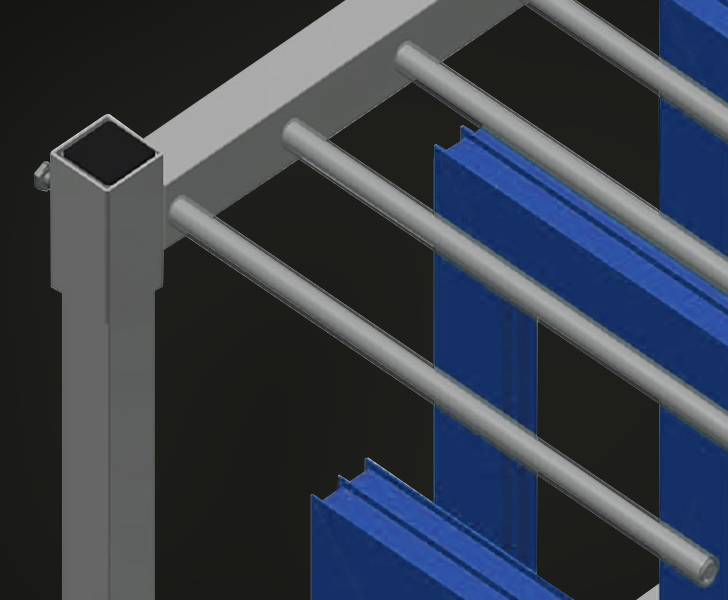

RF 1000 Compartment dividers Someco
Compartment dividers

Compartment divider height is adjustable. Compartment width 100 mm. Compartment depth 540 mm

Supporting surface

Lower supporting surface made of hardwood

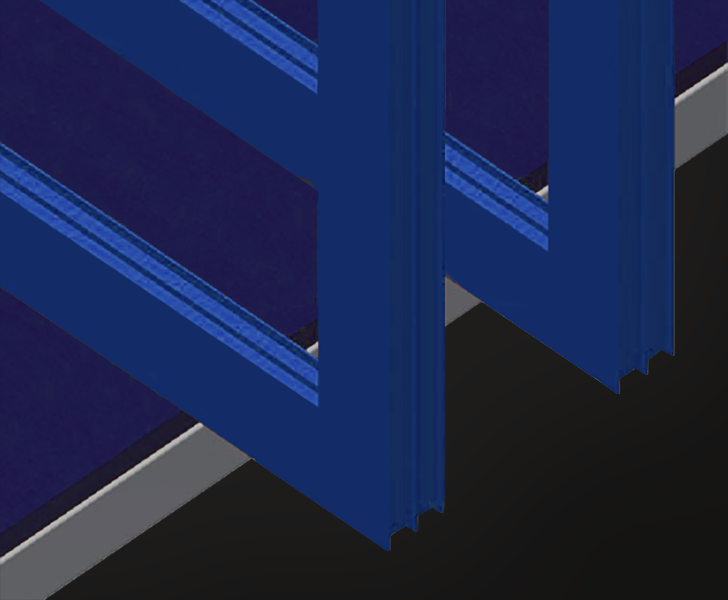

RF 1000 Supporting surface Someco
RF 1000 Casters Someco
Casters

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

Plastic protector (Optional)

All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage

RF 1000 Plastic protector Someco
Technical data arrow_drop_down

Technical Data

  • Length 1,180 mm
  • Width 850 mm
  • Height 1,360 mm
  • Two compartment dividers
  • Nine compartments
  • Roller diameter 125 mm
  • Compartment width 100 mm
  • Compartment depth 540 mm
  • Unit height 1,150 mm
  • Weight 65 kg
  • Load 400 kg
