TMT  2000
Door bar assembly table

home / product a to z / T
Assembly table for pre-assembly of hardware and gaskets. Stable steel construction. Work table for all pre-assembly tasks for hardware and gaskets on aluminium windows and doors. Equipped with two clamps. Clamping device for profiles with a depth of 45 - 120 mm and facing width of 50 - 150 mm. Clamping position can be adjusted. Clamping cylinder is activated by a foot switch. 180° pivoting feature for the clamped profiles in 30° steps via a foot switch, lockable. Support arms for long parts. Two storage areas for setting down tools and small parts. Drawers for tools. Rack for screw driving unit or drill. 4-fold compressed air supply. Double two-pin grounded socket.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
2.000
Width (mm)
850
Height (mm)
1.970
Weight (kg)
145
4-fold compressed air supply

Air consumption approx. (l/min.)
20
Operating air pressure (bar)
7
Clamps
2
Storage areas for setting down tools and small parts
2
Drawers for tools

Rack for screw driving unit or drill

Double two-pin grounded socket

Included
Available

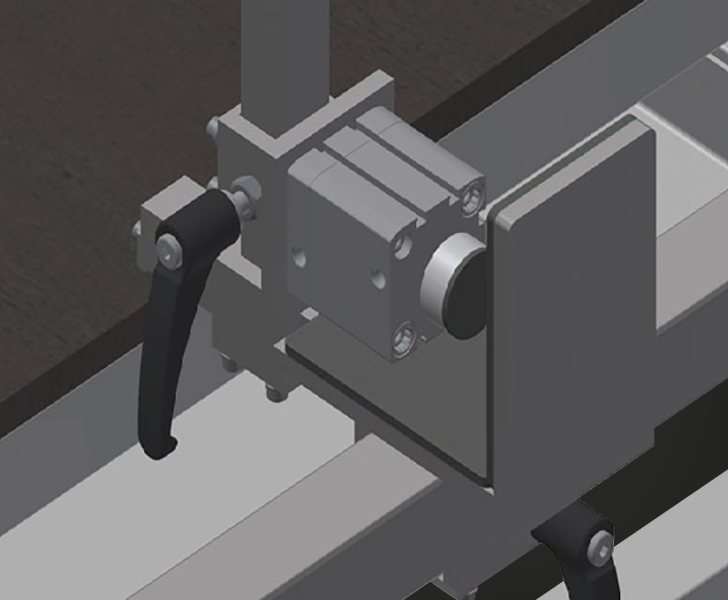

Clamping device

Clamping device for profiles with a depth of 45 – 120 mm and facing width of 50 – 150 mm. Clamping position adjustable in the longitudinal direction of the profile, clamping cylinder actuated via a foot switch

TMT 2000 Clamping device Someco
TMT 2000 Pivoting mechanism Someco

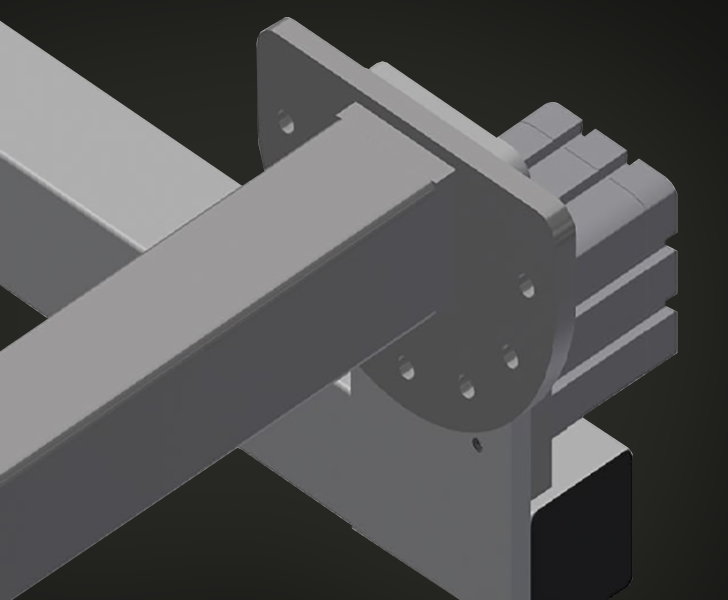

Pivoting mechanism

180° pivoting feature for the clamped profiles in 30° steps via a foot switch, lockable

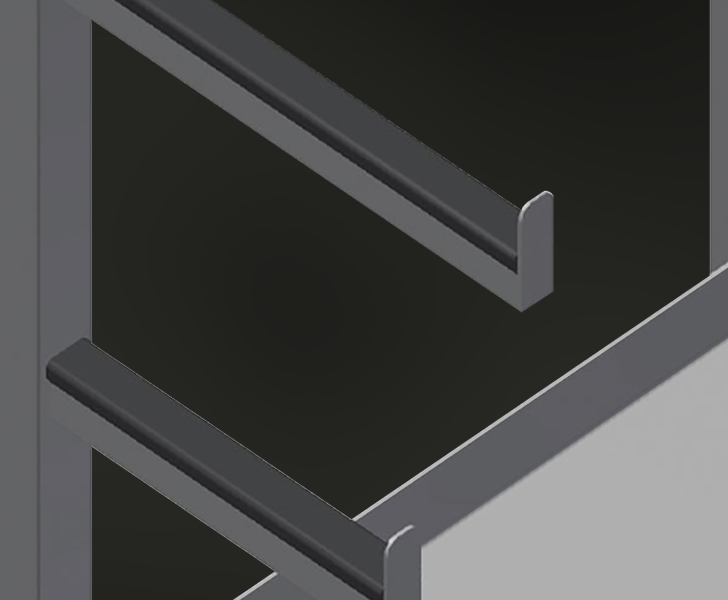

Support arms

Support arms for long parts such as multiple locking hardware. Storage areas for tools and small parts

TMT 2000 Support arms Someco
TMT 2000 Storage area Someco

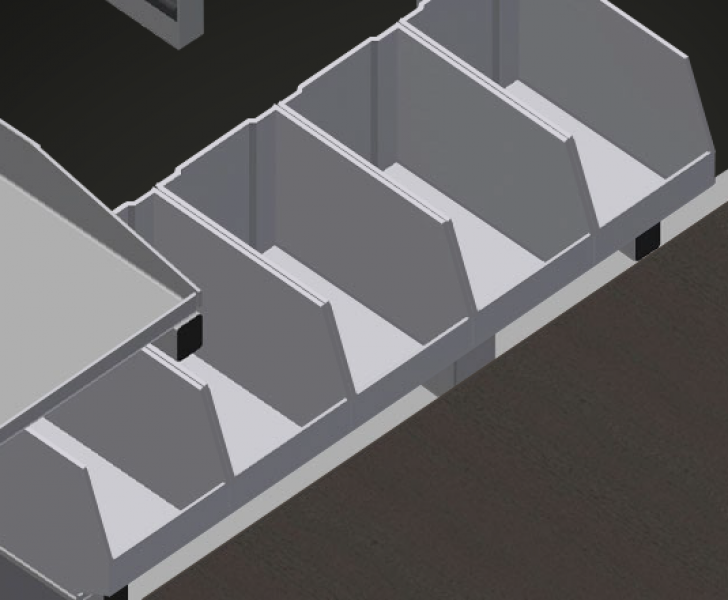

Storage area

Storage area with 5 plastic trays for small accessories, hardware and screws

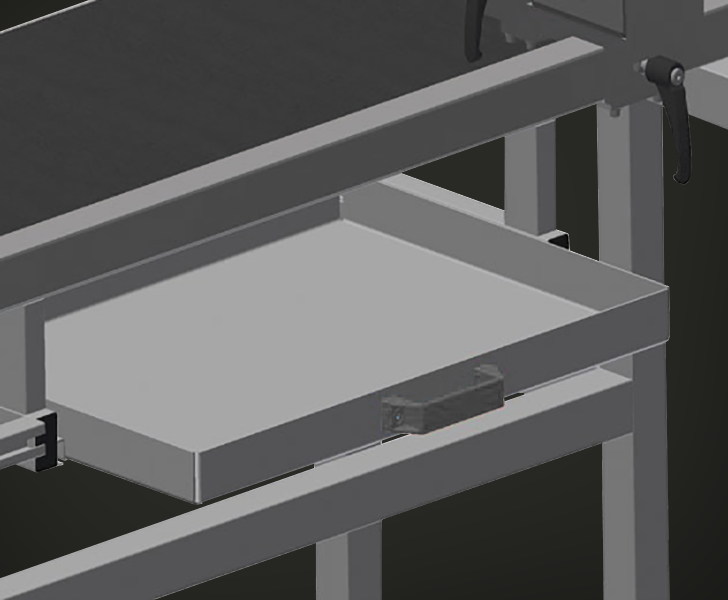

Drawer

Drawer for tools. Rubber coated tool trays

TMT 2000 Drawer Someco
TMT 2000 Maintenance unit Someco
Maintenance unit

Maintenance unit for compressed-air tools

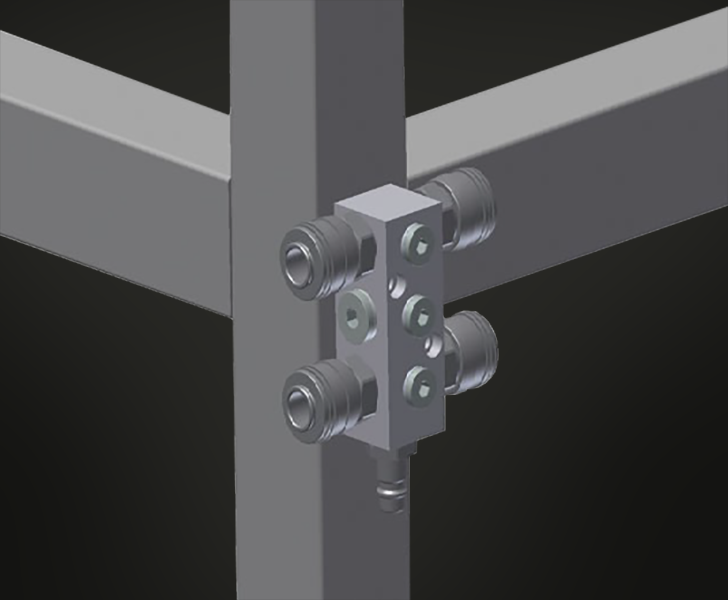

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

TMT 2000 4-fold compressed air connection Someco
TMT 2000 Articulated foot Someco

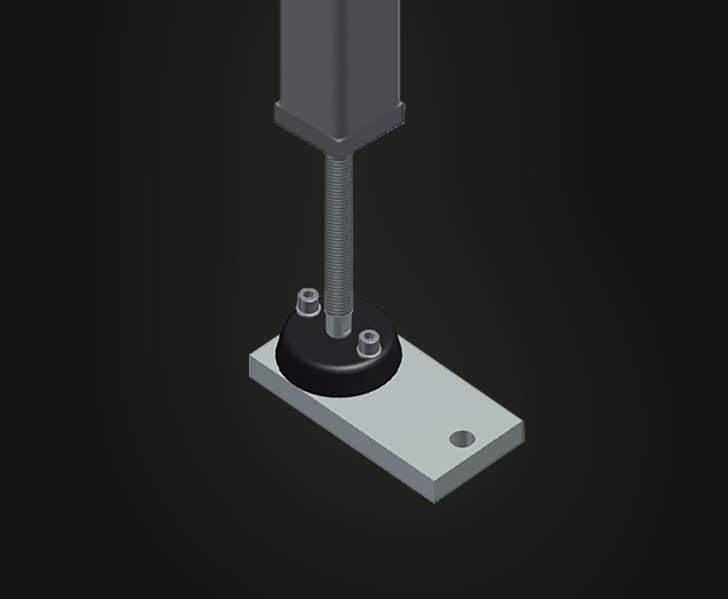

Articulated foot

Working height can be set to 850 – 1.000 mm by means of adjustable feet

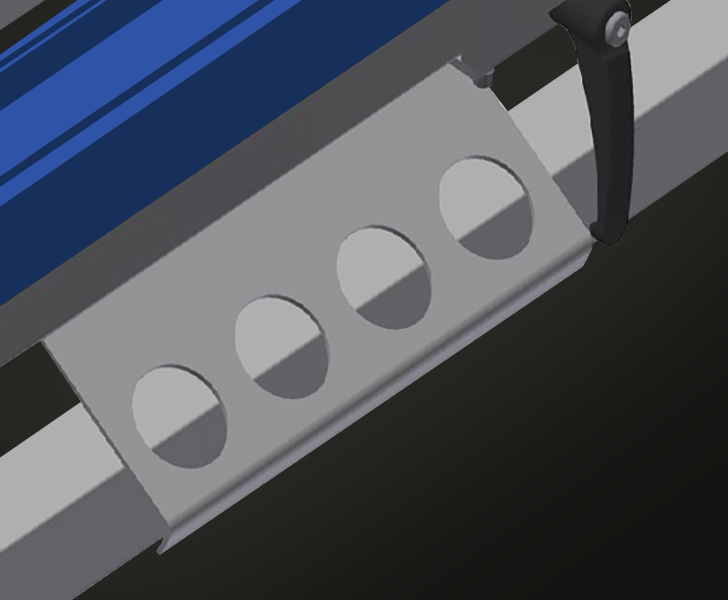

Tool rack

Tool rack for pneumatic or electric tools

TMT 2000 Tool rack Someco
Technical data arrow_drop_down



Technical Data

  • Length 2,000 mm
  • Width 850 mm
  • Height 1,970 mm
  • Weight 145 kg
  • Air consumption approx. 20 l/min.
  • Compressed air supply 7 bar

Other Products

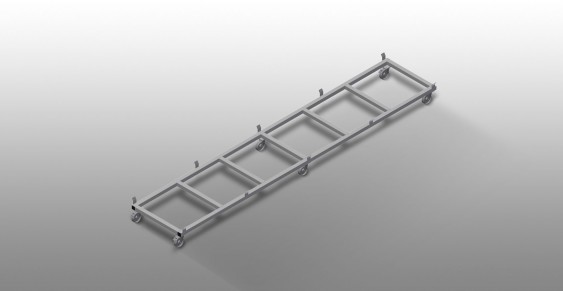

TPK 4000 Someco
