VE
Inspection and glazing units

home / product a to z / V

Inspection and glazing unit for glazing and final inspection in individual and serial assembly line production. Quick and precise assembly of windows, doors and elements. Stable steel construction. Easy operation by means of foot switch.

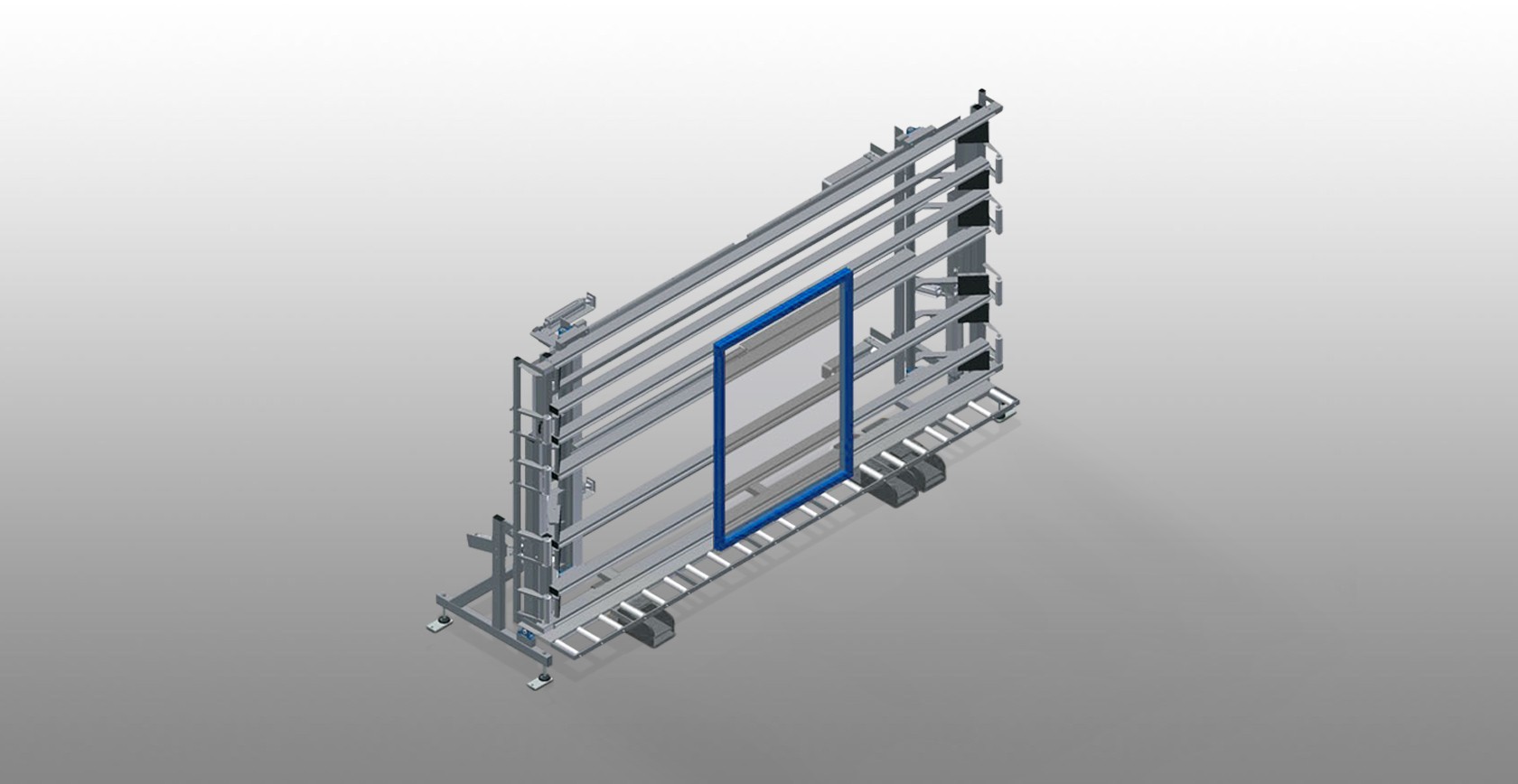

VE 3000 / VE 4000: Precision ensured through parallel clamping bar pressing technique. Height continuously adjustable. Two pressing bars which fold down and can be moved pneumatically and 4-fold compressed air supply.

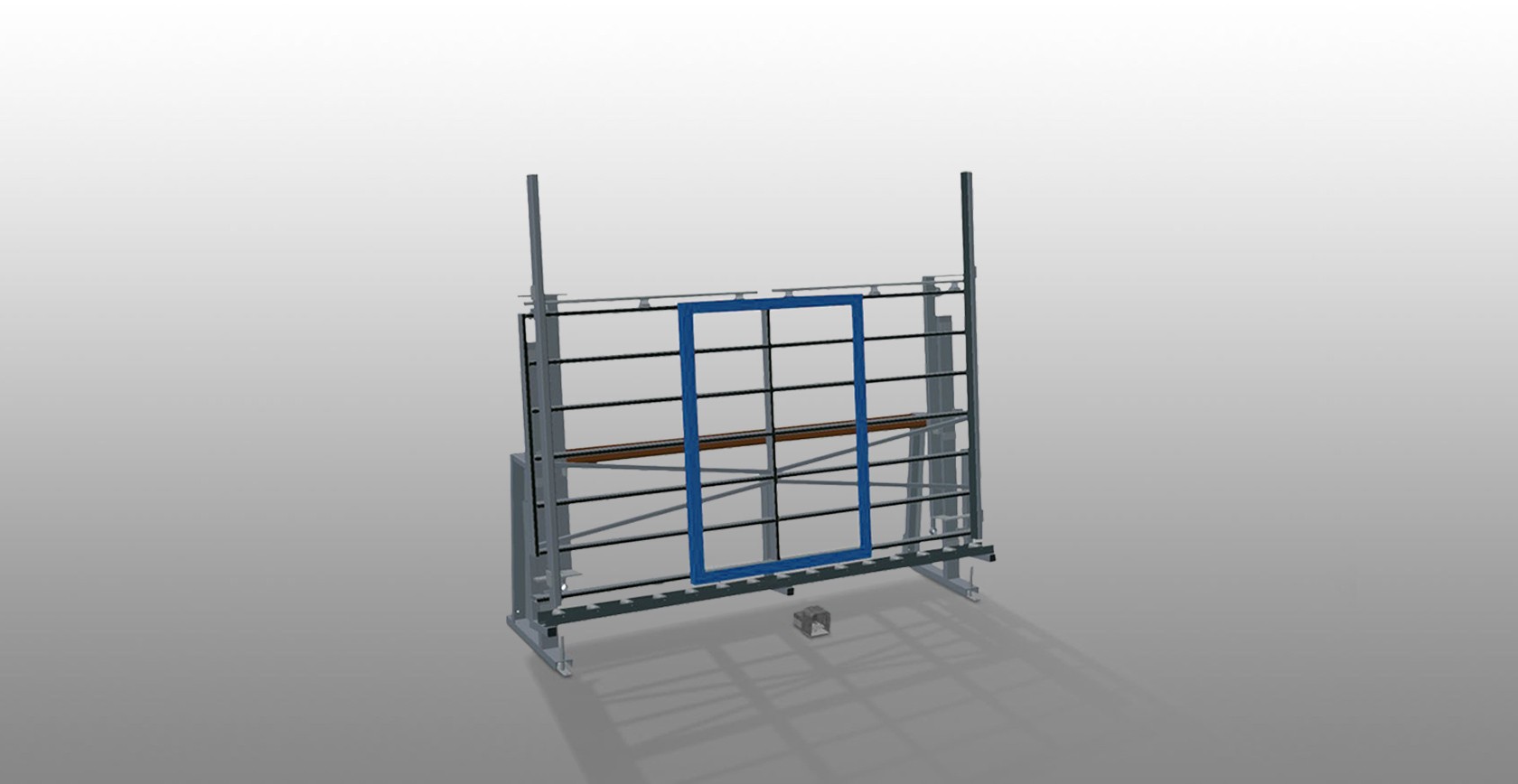

VE 3000/60: Precision ensured through parallel clamping bar pressing technique with manually operated pressing bars. Pneumatic centring, storage area for tools and 4-fold compressed air supply.

Technical data arrow_drop_down
MODELS

DIMENSION AND WEIGHT

VE 3000 / VE 4000 / VE 3000/60

Length (mm)
4.410 / 5.440 / 3.050
Width (mm)
1.180 / 1.180 / 900
Height (mm)
2.600
Lower roller conveyor width (mm)
200 / 200 / 120
Weight (kg)
470 / 580 / 370
WORKPIECE LOCKING

VE 3000 / VE 4000 / VE 3000/60

Maximum clamping width (mm)
3.000 / 4.000 / 2.800
Minimum clamping width (mm)
400 / 390 / 390
Clamping bar height (mm)
2.300
Clamping bar width (mm)
120 / 200 / 100

VE 3000/60

Pneumatic centring

Included
Available
Back support VE 3000 / VE 4000

Rear back support with plastic slide bars

VE Back support VE 3000 / VE 4000 Someco
VE Roller support VE 3000 Someco
Roller support VE 3000

Lower roller conveyor with support roller, L = 200 mm

Roller support VE 4000

Lower roller conveyor with support roller, L = 200 mm

VE Roller support VE 4000 Someco
VE Foot switch VE 3000 Someco
Foot switch VE 3000

All functions are controlled via foot valves

Foot switch VE 4000

All functions are controlled via foot valves

VE Foot switch VE 4000 Someco
VE Pressing bar VE 3000 / VE 4000 Someco
Pressing bar VE 3000 / VE 4000

Simultaneous folding and moving of the pressing bars ensure a minimum of time is required for opening and closing the press. Allows free pass-through of the window

Pressing bar VE 3000/60

Pneumatic centring. Precision ensured through parallel clamping bar pressing technique

VE Pressing bar VE 3000/60 Someco
VE Back support VE 3000/60 Someco
Back support VE 3000/60

Rear back support with plastic slide bars

Roller support VE 3000/60

Lower roller conveyor with support roller, L = 120 mm

VE Roller support VE 3000/60 Someco
VE Foot switch VE 3000/60 Someco
Foot switch VE 3000/60

All functions are controlled via foot valves

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

VE 4-fold compressed air connection Someco
VE Left lead-in rollers VE 3000 / VE 4000 Someco
Left lead-in rollers VE 3000 / VE 4000 (Optional)

Protective rollers for beginning or end of roller conveyor

Right lead-in rollers VE 3000 / VE 4000 (Optional)

Protective rollers for beginning or end of roller conveyor

VE Right lead-in rollers VE 3000 / VE 4000 Someco
VE Tilt adjustment of 0° - 8° VE 3000 / VE 4000 Someco
Tilt adjustment of 0° - 8° VE 3000 / VE 4000 (Optional)

Pneumatic tilt adjustment of 0° - 8°

Profile protectors VE 3000 (Optional)

Profile protectors for support rollers 200 mm. Support rollers covered with protective tubing

VE Profile protectors VE 3000 Someco
VE Profile protectors VE 4000 Someco
Profile protectors VE 4000 (Optional)

Profile protectors for support rollers 200 mm. Support rollers covered with protective tubing

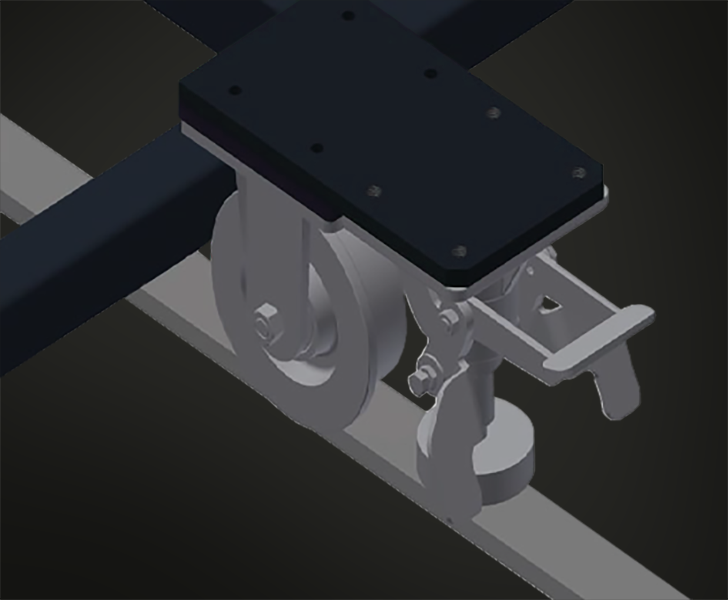

Mobility unit VE 3000 / VE 4000 (Optional)

Mobility unit with flanged rollers and fixing brake

VE Mobility unit VE 3000 / VE 4000 Someco
VE Rails VE 3000 / VE 4000 Someco

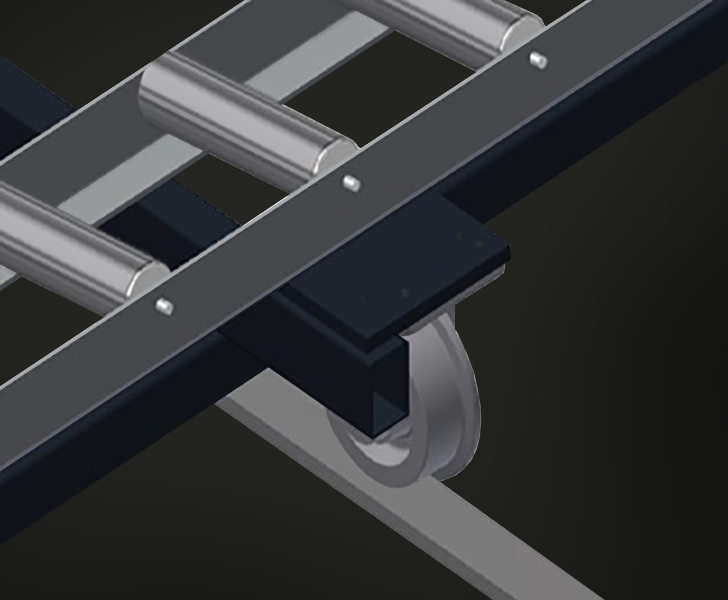

Rails VE 3000 / VE 4000 (Optional)

Rails, 2.0 m, left and right

Height adjustment VE 3000/60 (Optional)

Height continuously adjustable, L = 500 mm

VE Height adjustment VE 3000/60 Someco
