BR  36
Hardware rack

home / product a to z / B

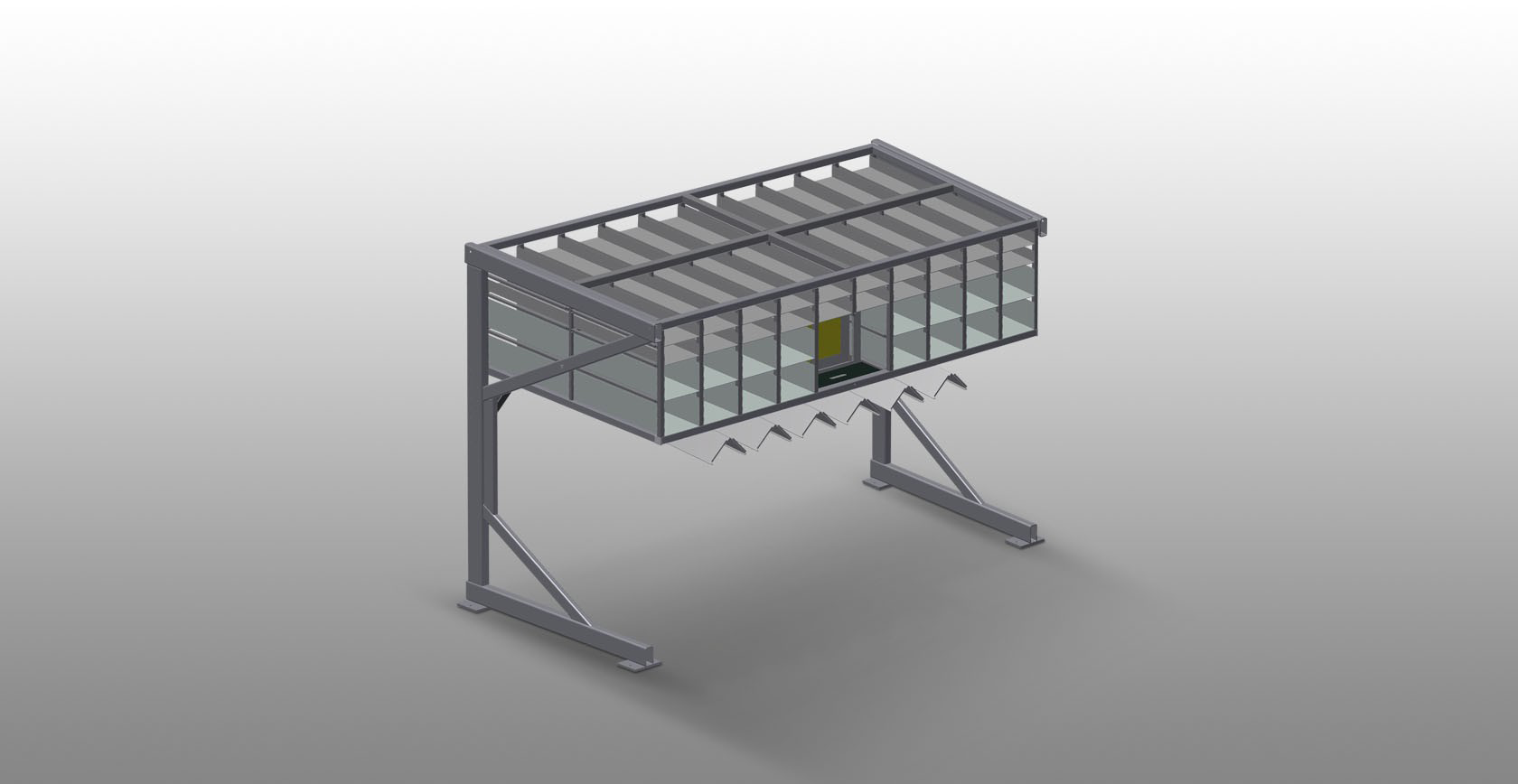

Hardware rack with 36 compartments for orderly hardware storage at the sash assembly station. Stable steel construction. Hardware rack with 36 compartments. With six angled supports for corner linkage gears. Space for a monitor, with keyboard holder.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
3.100
Width (mm)
1.525
Height (mm)
2.100
Compartments
36
Lower compartment size (mm)
265 x 200
Upper compartment size (mm)
265 x 100
Safe load approx. (kg)
800
Weight (kg)
400
Space for a monitor and a keyboard holder

Included
Available

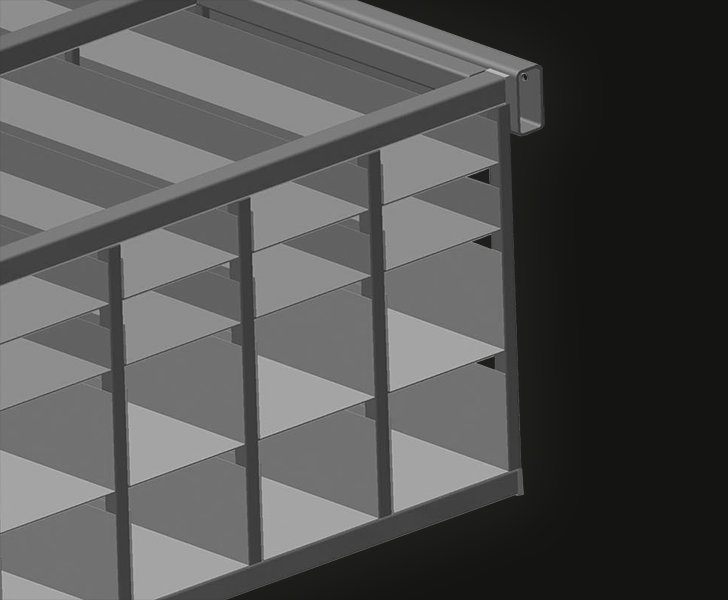

Compartments

For orderly hardware storage at the sash assembly station. For quick access to hardware components

BR 36 Compartments Someco
BR 36 Angled supports Someco

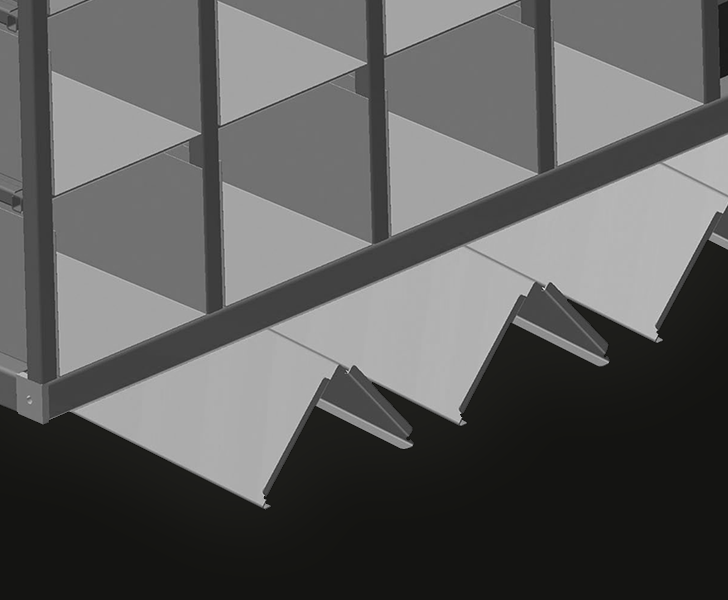

Angled supports

With six angled supports for corner linkage gears

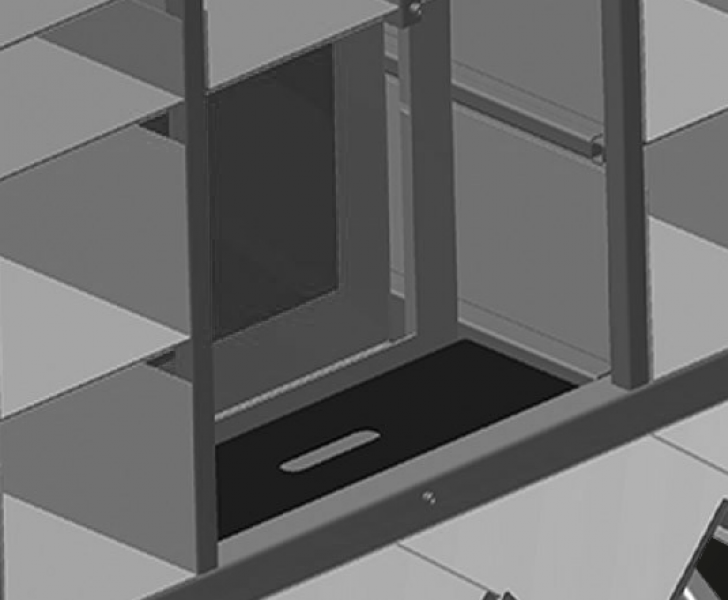

Space for a monitor

Space for a monitor and a keyboard holder

BR 36 Space for a monitor Someco
Technical data arrow_drop_down

Technical Data

  • Length 3,100 mm
  • Width 1,525 mm
  • Height 2,100 mm
  • 36 compartments
  • Lower compartment size 265 x 200 mm
  • Upper compartment size 265 x 100 mm
  • Safe load approx. 800 kg
  • Weight 400 kg

Other Products

BR 40 Someco
BR

40

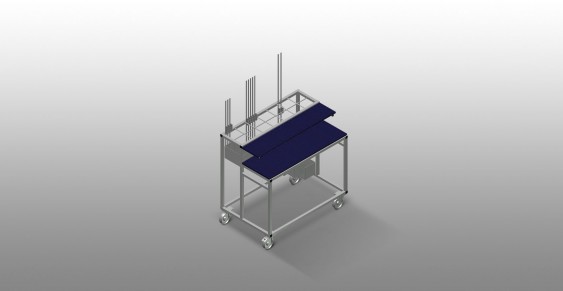

BW 7002 Someco
