GLS  192 B

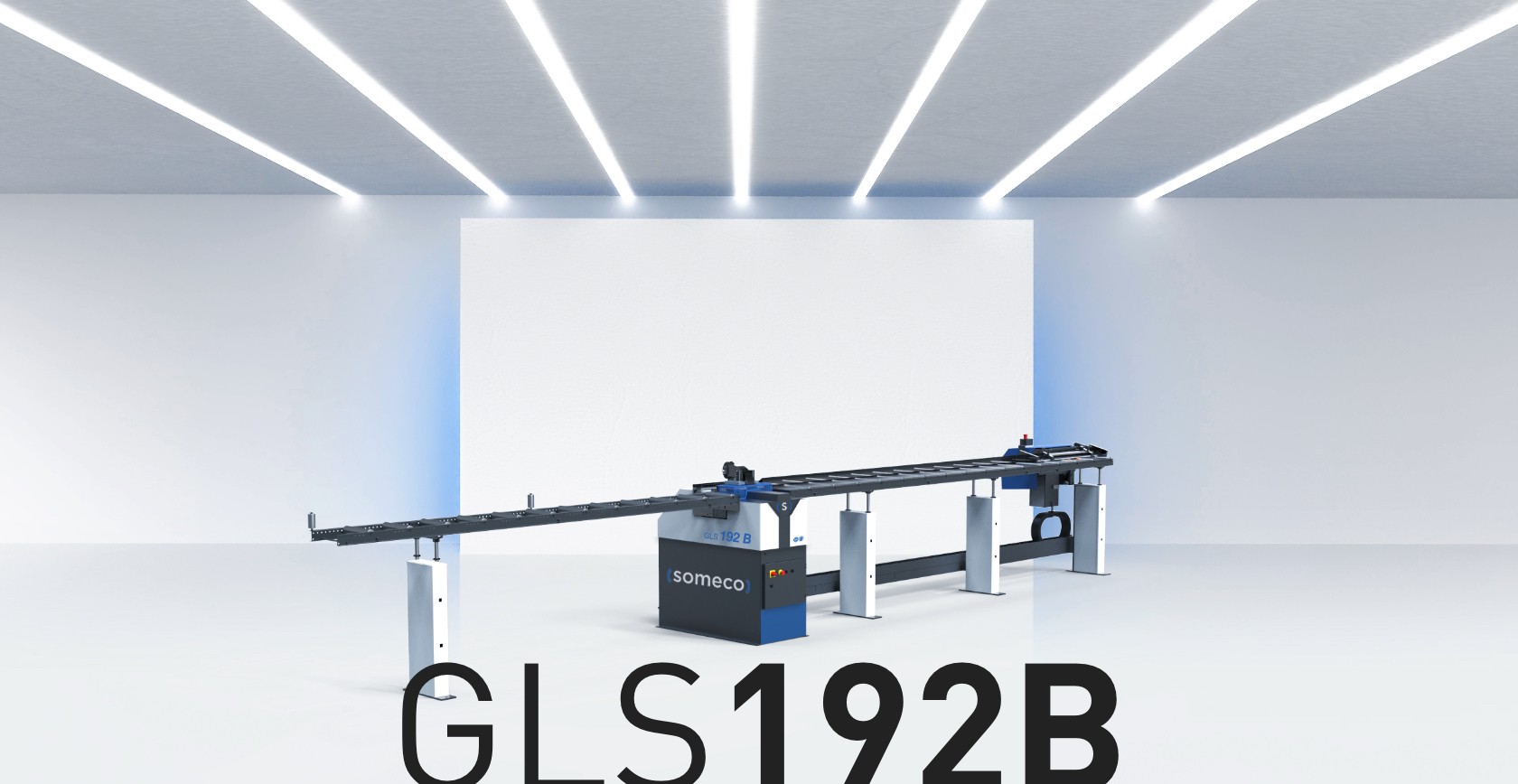

Glass bead saw for cutting at 2 x 45° angles with high quality cutting results. Simultaneous cutting of the rear joint by overlapping cutters. The machine has a pneumatic vertical locking device which allows to process two glazing beads simultaneously. GLS 192 B is equipped with a chip removal system, so it does not require a suction system.

Technical data arrow_drop_down
WORK AREA
Maximum cutting width (mm)
130
Maximum cutting height (mm)
44,5
Minimum profile length (mm)
240
DIMENSION AND WEIGHT
Length (mm)
510
Depth (mm)
1.050
Height (mm)
1.180
Weight (kg)
140
MOTORS
Three-phase asynchronous motors
2
Motors power (kW)
2 x 0,9
FUNCTIONS
Vertical vices
2
Simultaneous sawing of 2 glazing beads

Automatic sawing sequence

Operation by foot switch

TOOLS
Blades type
HSS
Blade diameter (mm)
200
Blade diameter (45° beveled) (mm)
98
Blade bore (mm)
32
Blade speed - motor 50 Hz (r.p.m.)
2.800
Blade speed - motor 60 Hz (r.p.m.)
3.400
EQUIPMENT
Vertical clamping device

Glazing bead counterblock

Roller conveyor

Manual measuring systems

Connecting plate roller conveyor / measuring system

ELECTRICAL CONNECTION
Connected load (without swarf exhauster) (kW)
1,9
Maximum backup fuse 240V 60Hz (without swarf exhauster) (A)
16
Maximum backup fuse 400V 50Hz (without swarf exhauster) (A)
10
PNEUMATIC CONNECTION
Pressure (bar)
7
Hose connection
DN10
Compressed air consumption (7 bar) per working cycle (without spraying) (l)
20

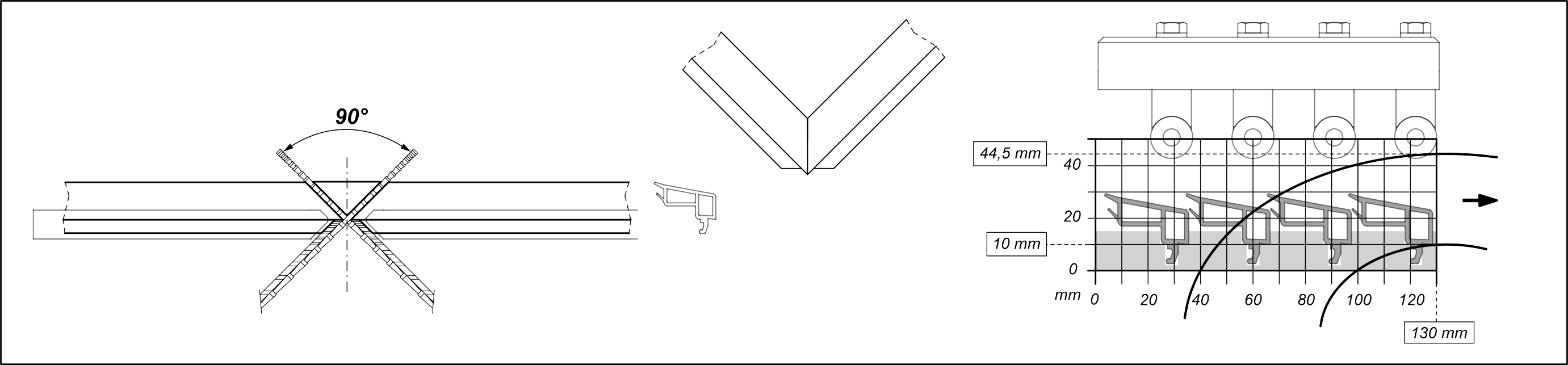

CUTTING DIAGRAM
Included
Available
Snap-in interchangeable counterblocks
The counterblocks are very easy to change: a snap-in mechanism enables them to be changed without having to use any other tools.
GLS 192 B Snap-in interchangeable counterblocks Someco
GLS 192 B Workpiece clamping system Someco
Workpiece clamping system
The workpiece is clamped from above by means of clamps; thin profiles can also be clamped by GLS 192 from the bottom to avoid the risk of deformation and to ensure a greater cutting precision.
Cutting module
Glass stopper cuts are made by 2 cutting units, one set at 45° and the other at 135°. Each cutting unit is made up of 2 blades: the first actually cuts the glass stopper and the second, which has a smaller diameter, makes the cut in the glass stopper that is to house the gasket. This machine configuration enables 2 profiles to be inserted in the counterblocks so that 2 glass stoppers can be cut at the same time.
GLS 192 B Cutting module Someco
GLS 192 B Connection to roller conveyors and stop gauges Someco
Connection to roller conveyors and stop gauges
Beside the cutting area there is a steel support for connecting the machine to an infeed roller conveyor or a stop gauge that ensures high positioning precision while cutting the glass stopper.
