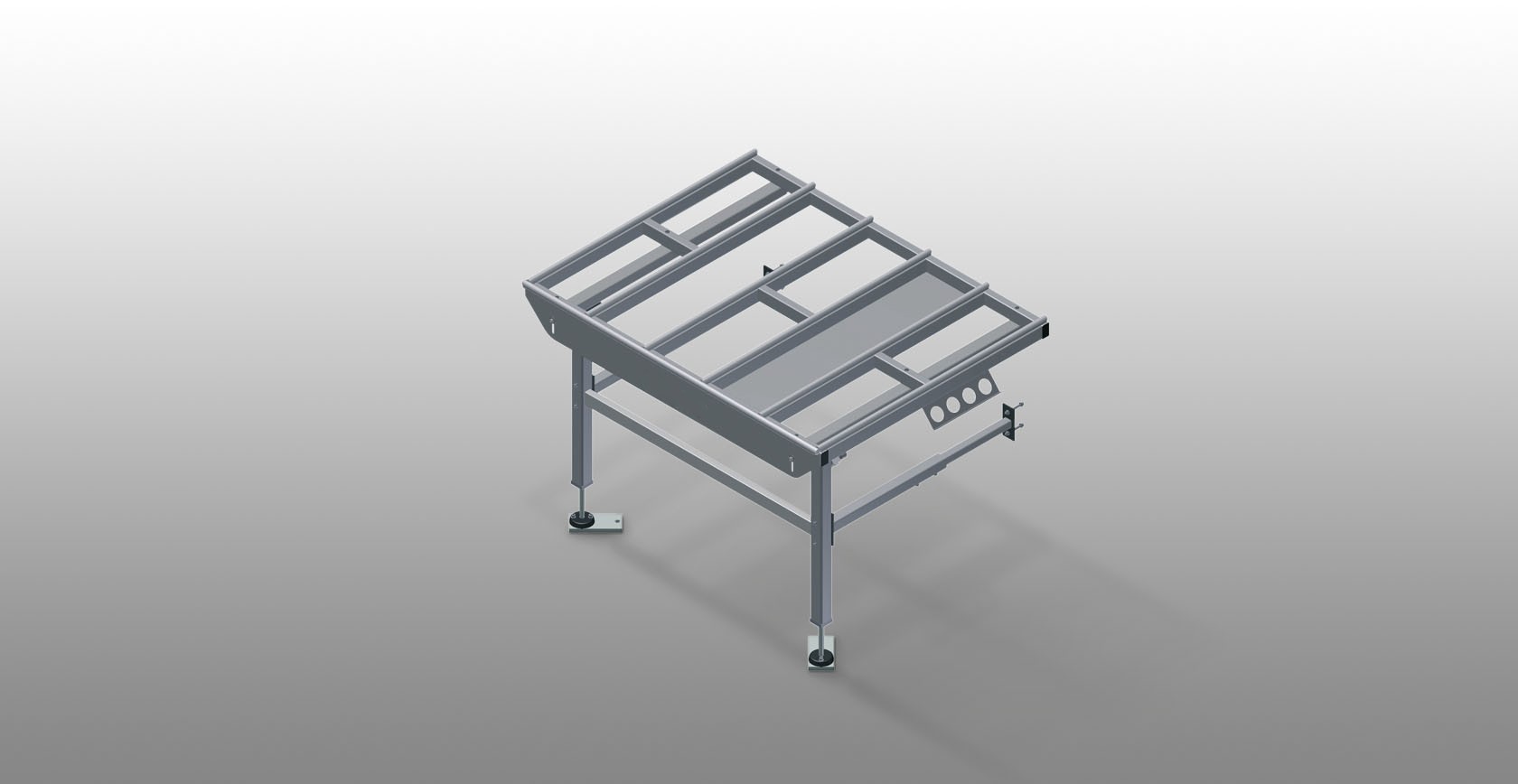

HT  1000 E
Horizontal table – expansion

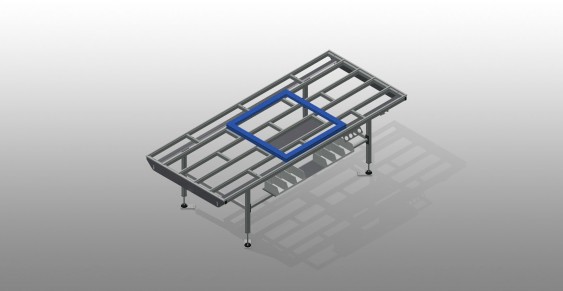

Modular work table for a production line (basic module). Stable steel construction. Universal system of work tables for lines with a continuous production flow. Modular system: basic module + additional module. Add-on elements for individualised expansion. Additional modules are easy to install. Versatile work table for all applications: for example, as an individual table in the production flow, as an in-line workstation for assembly work, as a work table for gasket insertion, for the post-processing of special-order production items or as a buffer zone. Table supporting surface with plastic slide bars. Adjustable height. Simple installation with a modular system design.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
1.000
Width (mm)
1.300
Height (mm)
850 ÷ 1.000
Weight (kg)
60
Adjustable height

Table supporting surface with plastic slide bars

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Roller support

Tool holder

4-fold compressed air supply

End strip with knob profile

End rack

Fold-up walk-through section

Roller support for fold-up walk-through section

Included
Available
Supporting surfaces

Supporting surfaces with plastic slide bars

HT 1000 E Supporting surfaces Someco
HT 1000 E Storage tray Someco

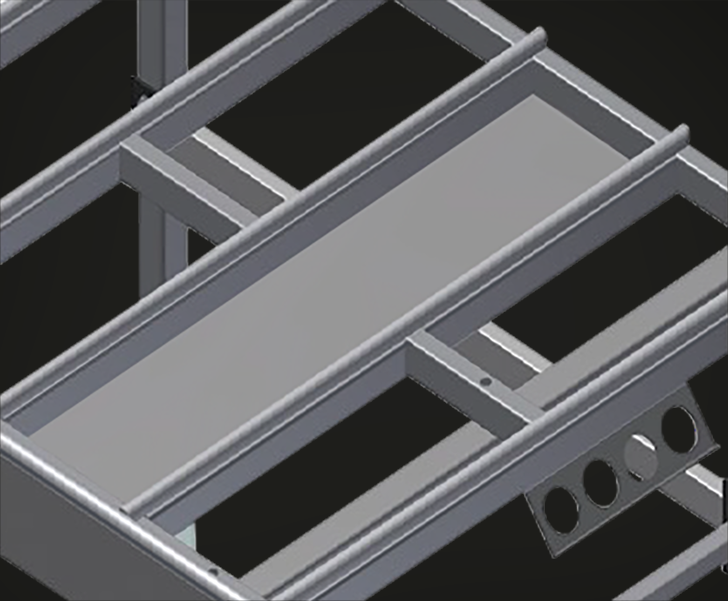

Storage tray

Storage tray for setting down tools and accessories

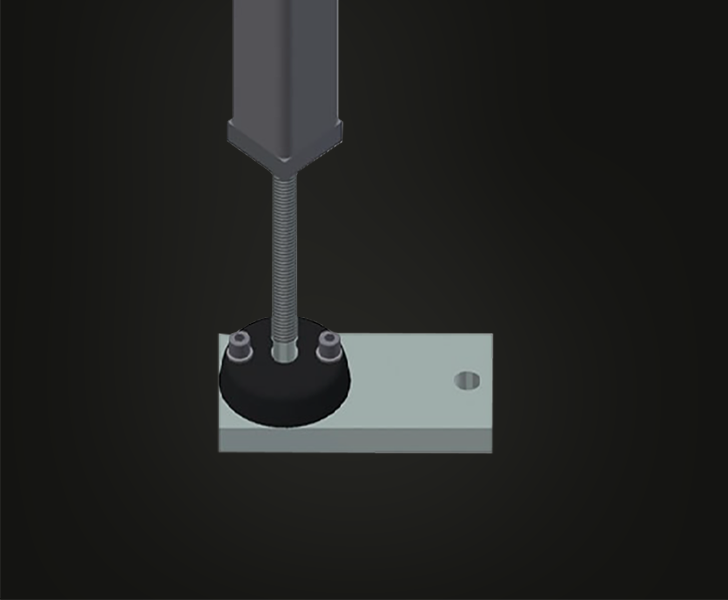

Height adjustment

Adjustable height; working height can be set to 850 – 1,000 mm by means of adjustable feet

HT 1000 E Height adjustment Someco
HT 1000 E Brush strip Someco
Brush strip (Optional)

Supporting surfaces with brush strip

Felt strip (Optional)

Supporting surfaces with felt strip

HT 1000 E Felt strip Someco
HT 1000 E Rubber strips Someco
Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

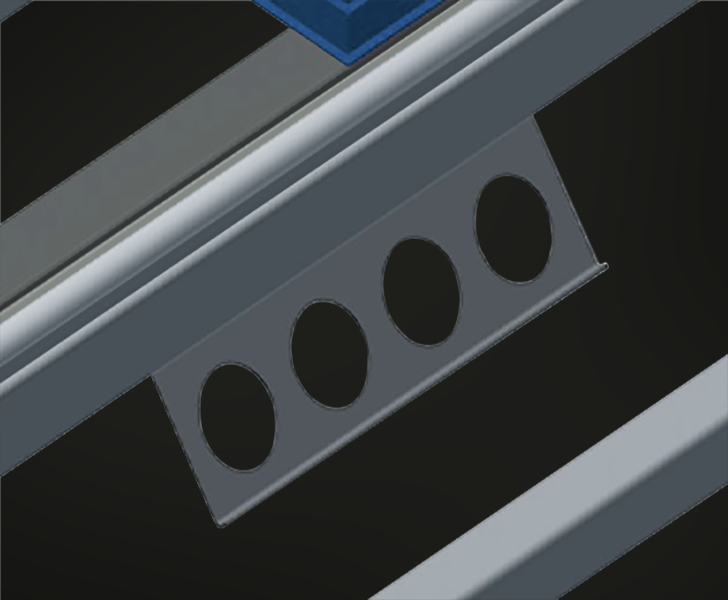

Tool rack (Optional)

Tool rack for pneumatic or electrical tools

HT 1000 E Tool rack Someco
HT 1000 E 4-fold compressed air connection Someco

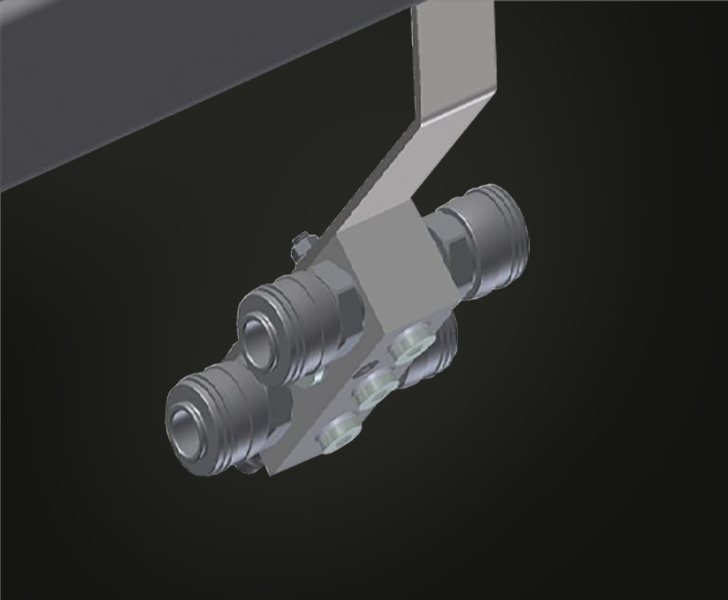

4-fold compressed air connection (Optional)

4-fold compressed air connection for connecting compressed-air tools

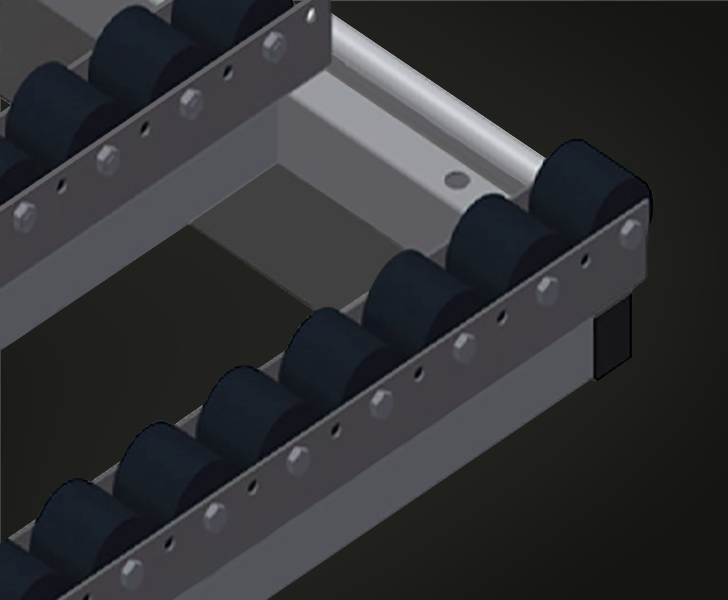

Roller support cmpl. (Optional)

Hard plastic rollers with polyamide coating, on plain bearings, load per roller 60 kg, convenient for transport and handling of PVC elements

HT 1000 E Roller support cmpl. Someco
HT 1000 E End rack Someco
End rack (Optional)

End rack for HT

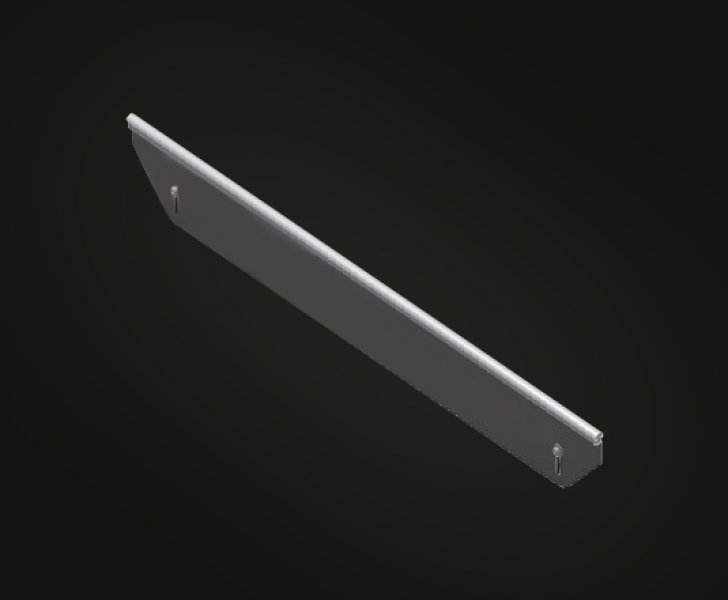

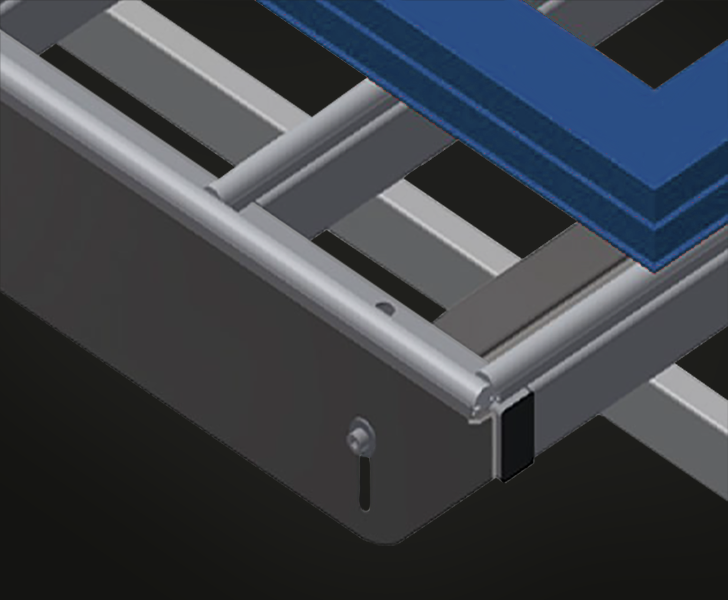

End strip with knob profile (Optional)

End strip with knob profile for HT

HT 1000 E End strip with knob profile Someco
