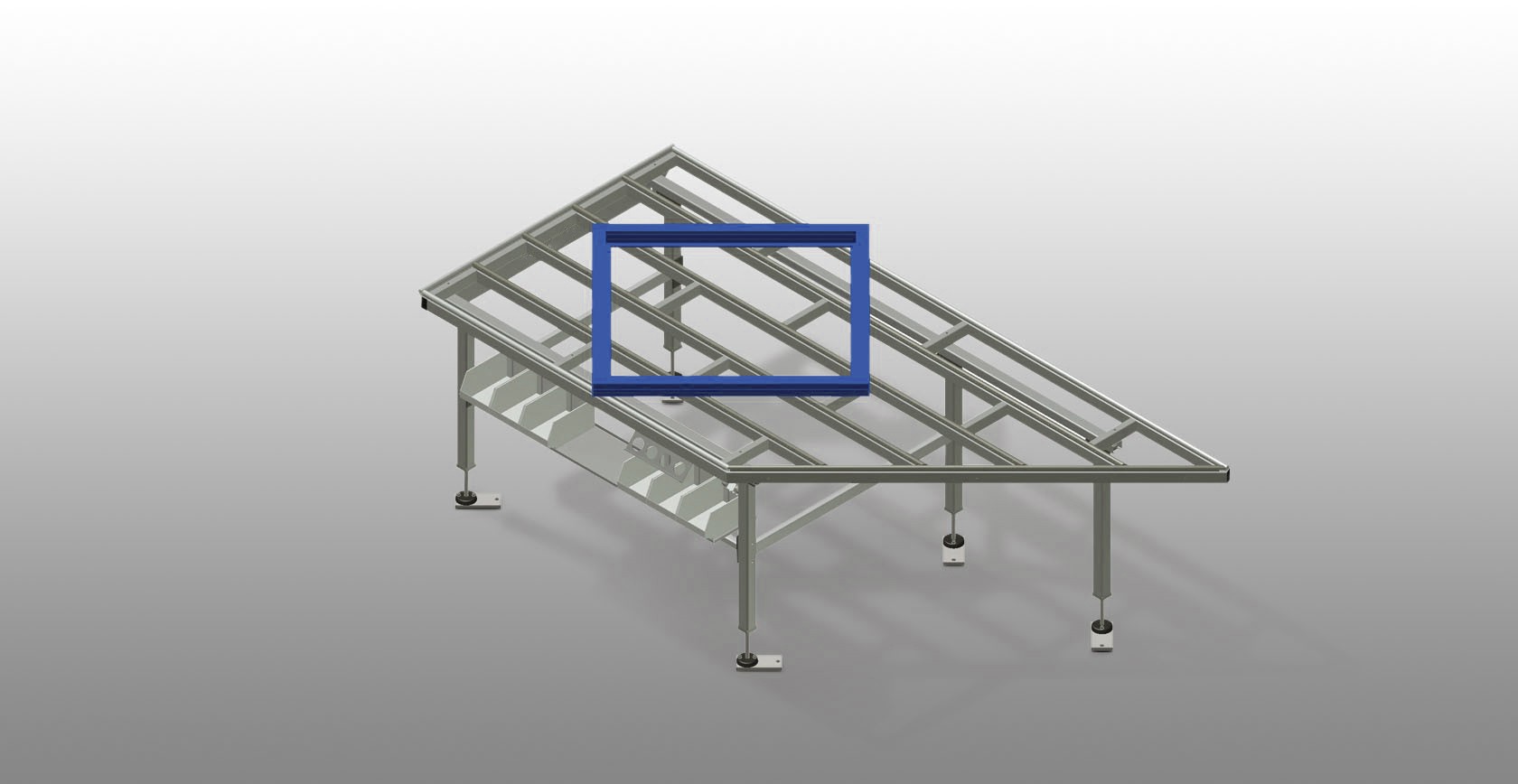

HT  2045 L
Horizontal table – left table, 45°

Horizontal table for all work tasks on frames and sashes. Stable steel construction. Angled work table; can be used as a pass-through in the production line or as a buffer zone. Assembly table for all work tasks on frames and sashes. Table supporting surface with plastic slide bars. Storage tray for setting down tools and accessories. Adjustable height. Simple installation with a modular system design. Options: also available with brush strips on request; also available with felt strips on request (for wooden elements); also available with rubber strips on request (for aluminium elements); roller support; tool rack; 4-fold compressed air supply; storage area with six plastic trays; parallelogram support (cmpl.) for 90°; triangular support (cmpl.) for in-line use. HORIZONTAL TABLE – RIGHT TABLE, 45° HT 2045 R: see Left table, 45° HT 2045 L.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
2.850
Width (mm)
1.300
Height (mm)
850 ÷ 1.000
Weight (kg)
100
Adjustable height

Storage tray for setting down tools and accessories

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Roller support

Tool holder

4-fold compressed air supply

Storage tray

Included
Available
Supporting surfaces

Supporting surfaces with plastic slide bars

HT 2045 L Supporting surfaces Someco
HT 2045 L Storage tray Someco
Storage tray

Storage tray for setting down tools and accessories

Height adjustment

Adjustable height; working height can be set to 850 – 1,000 mm by means of adjustable feet

HT 2045 L Height adjustment Someco
HT 2045 L Storage area Someco
Storage area (Optional)

Storage area with 6 plastic trays for small accessories, hardware and screws

Brush strip (Optional)

Supporting surfaces with brush strip

HT 2045 L Brush strip Someco
HT 2045 L Felt strip Someco
Felt strip (Optional)

Supporting surfaces with felt strip

Tool rack (Optional)

Tool rack for pneumatic or electrical tools

HT 2045 L Tool rack Someco
HT 2045 L 4-fold compressed air connection Someco
4-fold compressed air connection (Optional)

4-fold compressed air connection for connecting compressed-air tools

Roller support cmpl. (Optional)

Hard plastic rollers with polyamide coating, on plain bearings, load per roller 60 kg, convenient for transport and handling of PVC elements

HT 2045 L Roller support cmpl. Someco
HT 2045 L Parallelogram support, cmpl., for 90° Someco
Parallelogram support, cmpl., for 90° (Optional)

Table supporting surface brush strip, table supporting surface felt profile strip, table supporting surface rubberknob profile, roller support, cmpl. for PVC

Triangle support, cmpl., for in-line use (Optional)

Supporting surface brush strip, supporting surface felt profilestrip, supporting surface rubber-knob profile, roller support, cmpl. for PVC

HT 2045 L Triangle support, cmpl., for in-line use Someco
