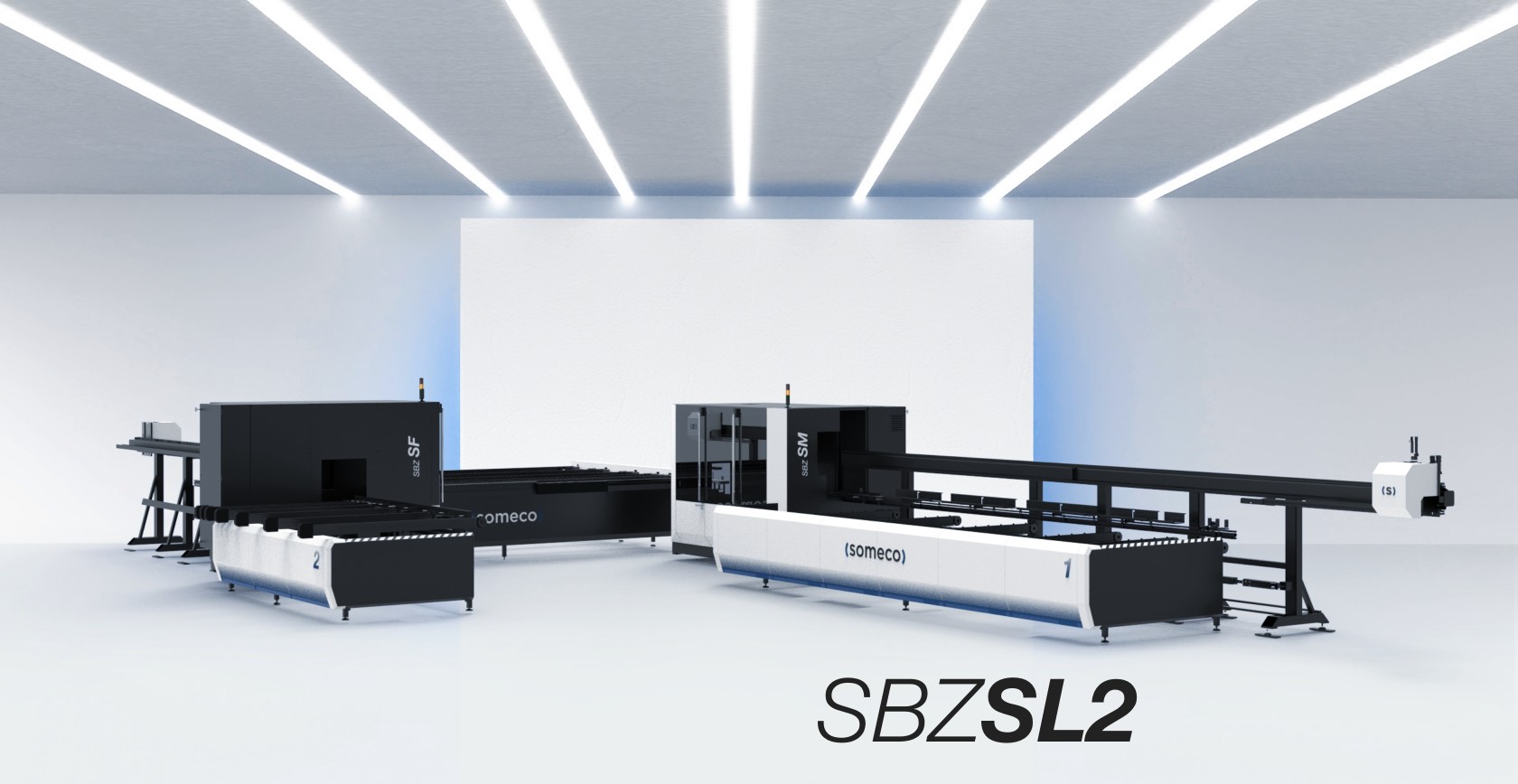

SBZ  SL2

18-axis through-feed bar automatic CNC machining line for milling, drilling, cutting, contouring and screwing reinforcements, specialising in the production of PVC window frames. The machining and cutting unit can be equipped with an integrated contouring module for preparing the PVC profile for welding with Seamless® technology. SBZ SL consists of an automatic magazine with a profile through-feed system, complete with gripper movement for profile clamping. Thanks to the synchronised movement of the gripper and bar magazine, the feeder returns to the start position allowing the loader to prepare the next profile at the same time. The dimensional control system for the profile section allows checking if the profile loaded by the operator is the one indicated in the machining list. The milling module, cutting module and contouring module are located in the SBZ SM unit of the machine. There are 9 or 11 electrospindles installed on the CNC milling module which allow working on the whole edge of the workpiece, whichever way it faces. The cutting module is equipped with a Ø 500 mm blade with CNC 3-axis horizontal movement. The optional contouring module operates on 3 CNC axes by means of an electrospindle that allows milling the ends of the profiles cut at 45°. An automatic extractor transfers the workpiece from the cutting unit to the intermediate unloading magazine. This 36-position belt magazine transfers profiles from the SBZ SM unit to the SBZ SF2 unit, a machining module for metal-reinforced segments, perfectly balancing the productivity of the two units. The SBZ SF2 unit is made up of a pneumatic double horizontal screwing unit that can be automatically adjusted both vertically and horizontally via software. The unit fixes the metal support with self-tapping screws that automatically reach the machine from a loader, a triple drilling unit for drilling holes for cremone bolts, 2 drilling units for frame assembly holes and a single-tool unit for drilling the frame hinges. The unit consists of a transversal belt magazine for the unloading of machined workpieces long up to 3500 mm. The machining units are equipped with soundproofed cabins in the operating part which, in addition to protecting the operator, also reduce the environmental noise impact. The cabin of the SBZ SM can be connected to the swarf exhauster (optional). PVC waste and swarf are collected in 2 drawers at the base of the machining module, which, combined with a belt evacuation system, facilitate and speed up cleaning operations. The line is supplied with an intuitive operator interface for machining list management connected to the production programming software. Industry 4.0 ready.

Technical data arrow_drop_down
MACHINE SPECIFICATIONS
Number of controlled axes
18
Standard milling unit no. (SBZ SM)
9
Cutting unit

Contour unit: milling for seamless welding

Dowel drilling units no. (SBZ SF2)
2
Triple drilling unit

Single-tool unit for drilling hinges

Multi-tool unit for drilling hinges

Screwing units
2
Maximum no. of screwing units
4
Bar positioning speed (m/min)
50
Bar dimension check

Operating pressure (bar)
6 ÷ 8
Air consumption (Nl/min)
1.300
Installed power (kW)
22,8
Programmable digital adjustment of the clamp pressure

Presetting for machining of PVC profiles with fiber-glass reinforcement

WORK AREA
Minimum profile height (mm)
45
Minimum profile width (mm)
40
Maximum profile height (mm)
160
Maximum width of the profile (mm)
130
Maximum reinforce thickness (mm)
3
LAYOUT

A – Loading magazine

B – Milling and cutting unit – optional predisposition for seamless machining

C – Transport magazine

D – Drilling and screwing unit

E – Unloading magazine

LOADING UNIT: PROFILE POSITIONING
Loading feeder with 2 controlled axes gripper

Maximum loadable length (mm)
6.500
Minimum loadable length (mm)
600
Maximum length that can be machined on a single workpiece (mm)
6.000
Maximum workpiece length that can be cut (mm)
3.000
Minimum workpiece length that can be cut (mm)
400
Profile loading in concurrent operation time

MILLING UNIT
Maximum power in S1 (kW)
1,1
Maximum speed (rpm)
18.000
Electrospindles in fixed position
6 - 8
Electrospindles adjustable with NC
3
DRILLING UNITS WORKING CAPACITY
VERTICAL CUTTING UNIT
Blade diameter at carbide-tipped (mm)
500
NC blade positioning
-45° ÷ +45°
Blade motor power (kW)
2,2
Specific blade design for perfect cutting of gasket

DOWEL DRILLING UNITS
Maximum power in S1 (kW)
1,1
Maximum speed (rpm)
6.000
Tool diameter (mm)
6 / 8
TRIPLE DRILLING UNIT
Tools diameter (mm)
10 / 12 / 10
Maximum power in S1 (kW)
1,5
Maximum speed (rpm)
900
FRAME HINGES DRILLING UNIT
Tools diameter (mm)
5 / 6
Maximum power in S1 (kW)
1,1
Maximum speed (rpm)
6.000
SCREWING UNIT
Number of screwing units
2
Minimum profile length with screwing of reinforcement (mm)
400
Screw minimum length (mm)
16
Screw maximum length (mm)
20
Screw head diameter (mm)
6,5 ÷ 7,5
Screw diameter (mm)
3,9 ÷ 4,2
Discharging time of screw from loader (s)
0,1
DRILLING AND SCREWING UNITS WORKING CAPACITY
UNLOADING UNIT
Belt unloading magazine for workpieces of up to 3.500 mm

Belt magazine unloading depth (mm)
1.800
Extraction NC clamp

Fast profile unloading system

Included
Available

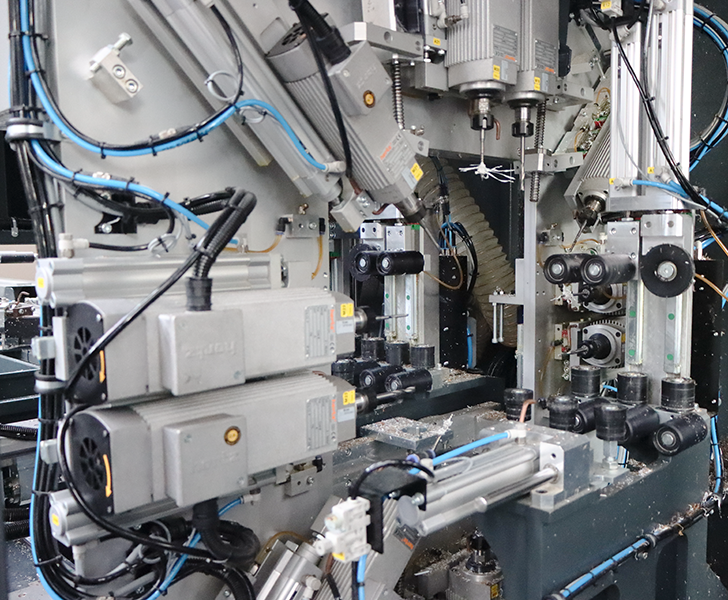

Milling and drilling unit

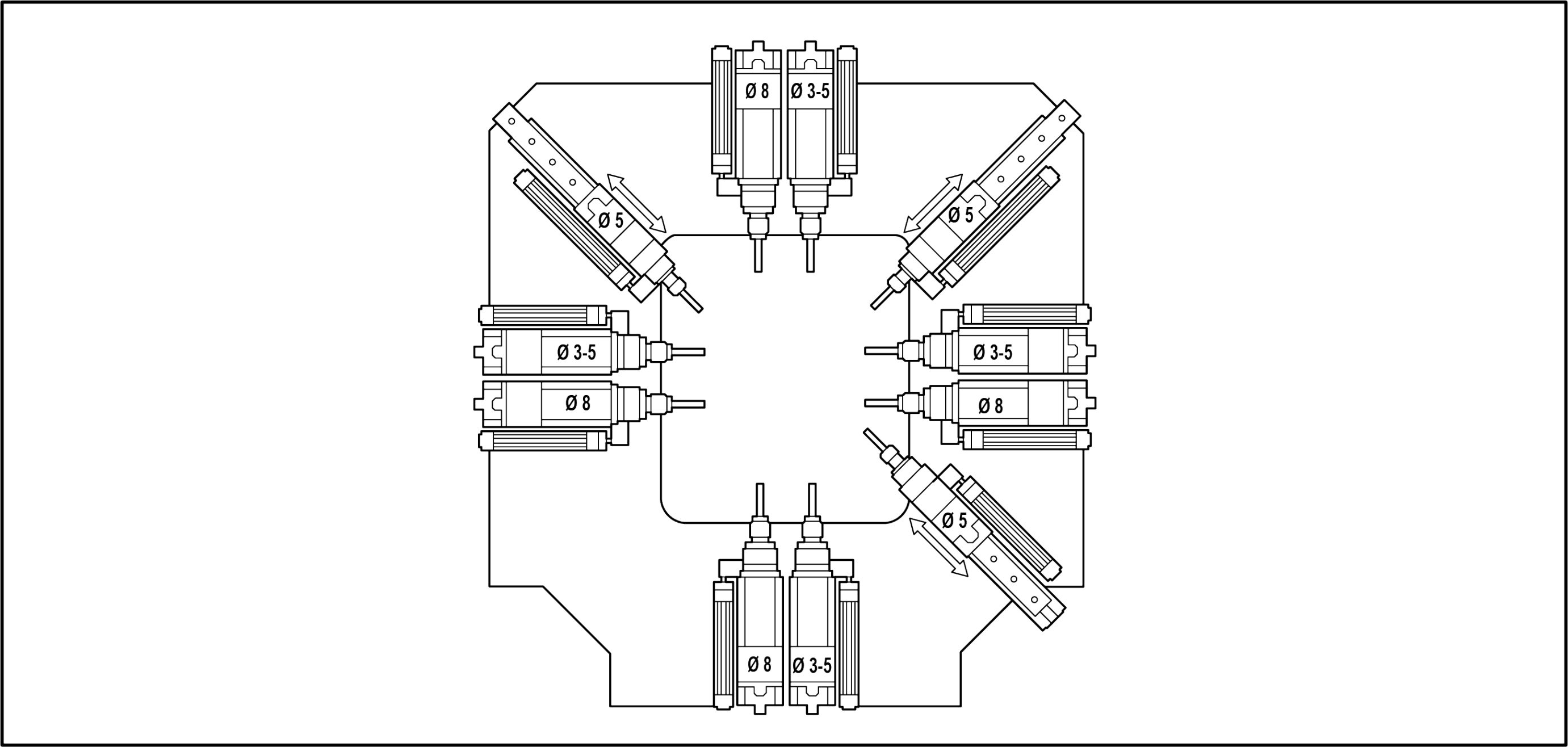

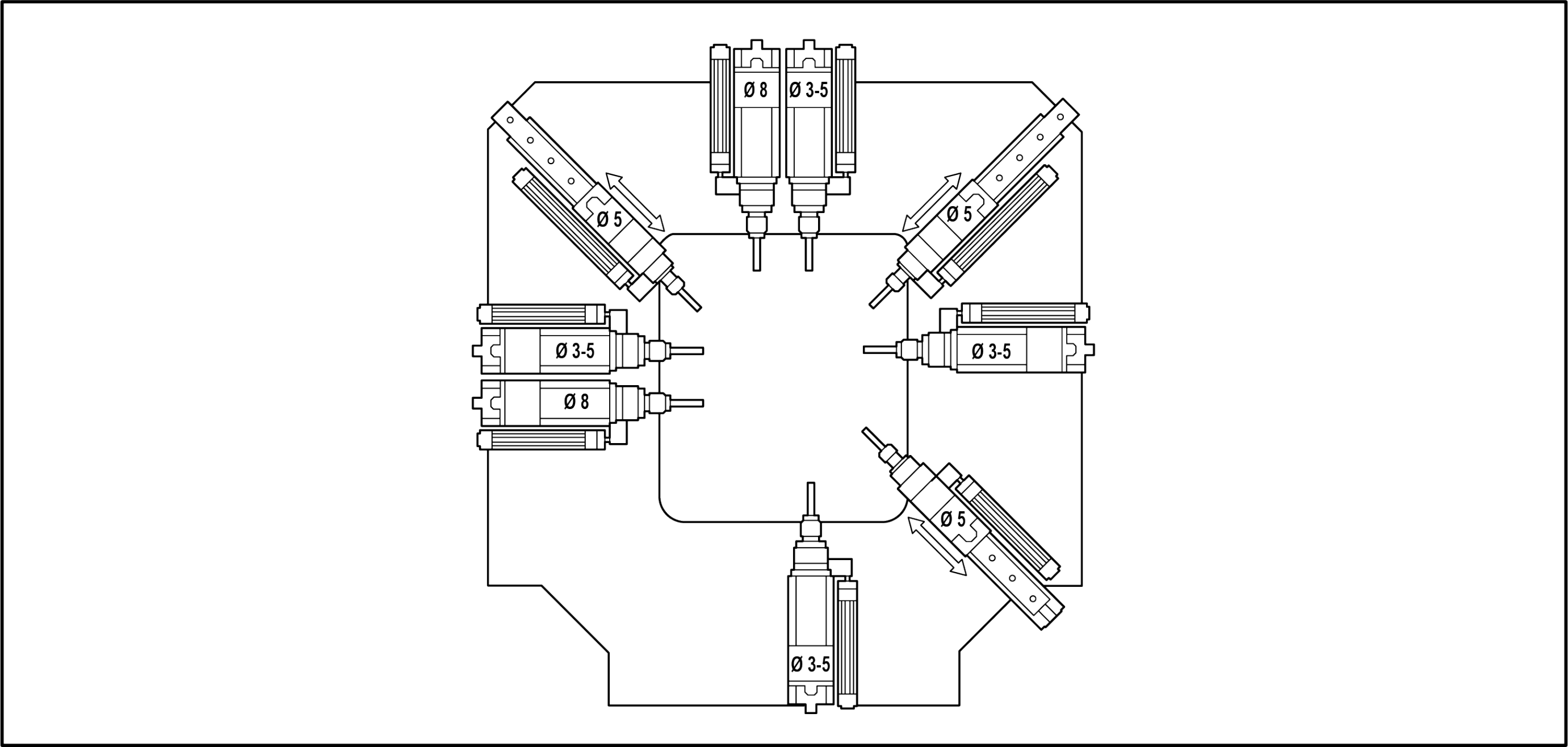

The milling module provided on SBZ SM features 9 electrospindles, of which three can be adjusted to perform all necessary machining operations on the PVC profile. In the second machining phase, the drilling units on the SBZ SF2 drill the holes for fitting hinges and the wall mounting holes, and perform the Cremone bolt drilling.
SBZ SL2 Milling and drilling unit Someco
SBZ SL2 Cutting unit Someco
Cutting unit
The line is equipped with a down-stroking movement with Ø 500 mm blade, which is an integral part of the SBZ SM cutting and milling unit. The cutting disc is expressly designed to cut PVC with a high degree of efficiency and is optimised for precise cutting of gaskets. The numerical control unit allows performing cuts at an angle from -45° to +45° on a vertical axis.

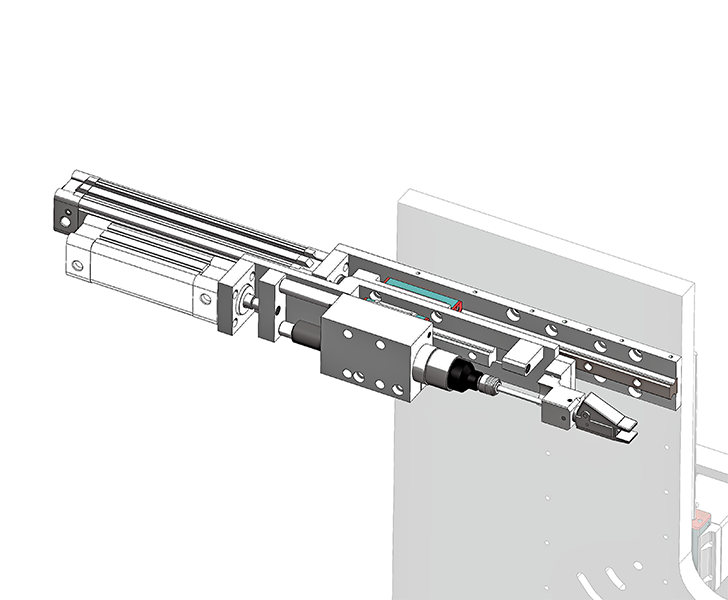

Screwing unit
The line has 2 pneumatic screwing units with automatic feeding. These units, which are part of the SBZ SF2 supply, are mounted on a rotary base with automatic movements on 2 NC axes, which allows fixing the reinforcement by programming the optimal position of the screws. One unit is dedicated to screwing the reinforcement into profiles for sashes, the other machines profiles for frames.
SBZ SL2 Screwing unit Someco
SBZ SL2 Drilling unit for wall mounting Someco
Drilling unit for wall mounting
Two drilling units, which are parallel to the screwing units, are used to perform machining operations intended for wall mounting of frames.

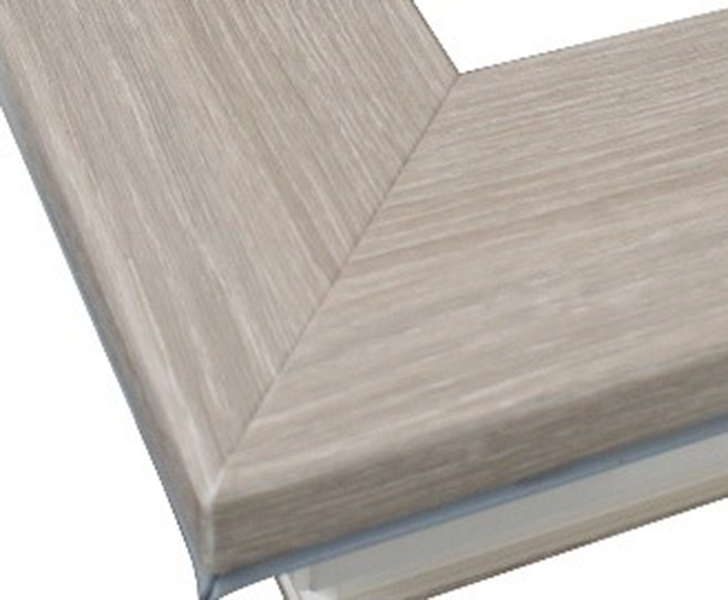

Seamless technology (Optional)
The line can be perfectly integrated with Seamless counterblock technology for zero-seam welding. An optional CONTOUR module for the contouring required for this welding technology can be integrated into the profile machining process. An intuitive and efficient software allows defining the machining paths by interpolation of the profile edge; the contouring programmes can be differentiated based on colour and film of the different types of profile.
SBZ SL2 Seamless technology Someco
SBZ SL2 Line management software Someco

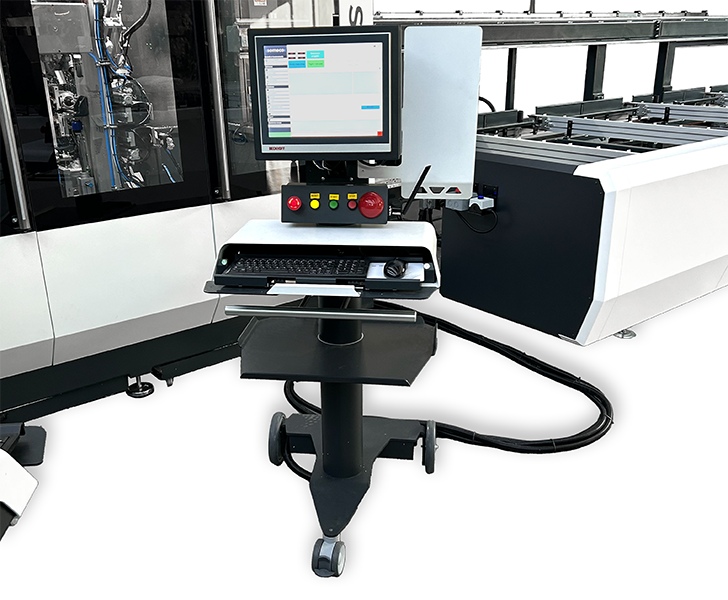

Line management software

The line is equipped with a simple and ergonomic user interface, which allows machining the work flows in an efficient and balanced way. The totem has a Wi-Fi antenna for connecting the machine to the network that ensures both interconnection with the production programming, through specific drivers, and remote connection for the management of the technical service in case of need. The software manages worklists from the management system that can be directly connected with the line.
