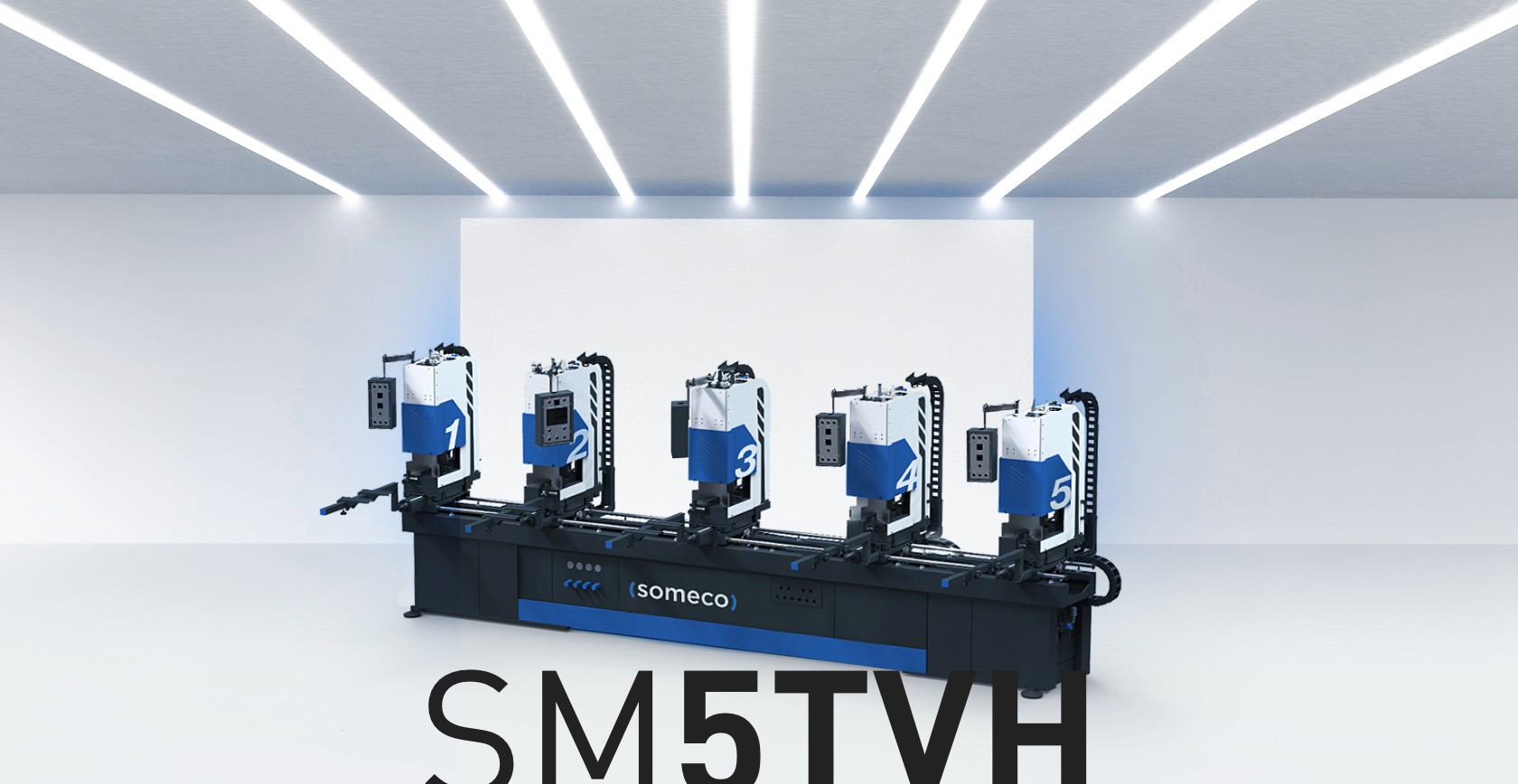

SM  5TVH

Automatic in-line 5-head welding machine for right angle corners and also corners in the range 30° to 180°, T, H and cross welding. SM 5 TVH comes in 2 working lengths (4440 and 5440 mm) and offers the possibility of welding up to 4 frames simultaneously with 1 or more heads. SM 5 TVH is provided with heated welding bead restrictors adjustable in the configuration phase, in a range from 0.5 to 2 mm; it also has vertical vices running on linear slideways. Depth of fusion can be set at 2.5 or 3 mm while the support arms feature adjustable height. SM 5 TVH can be fitted with counterblocks (optional) and can handle all types of standard profiles (including acrylic and coated) as well as large profiles (solid profiles). The machine, provided with a quick change system, allows easy cleaning of the teflon film. The work cycle is controlled by a PLC while the heating plate has a digital temperature controller (settable in both °C and °F); the heating time can be set via the LCD display.
Technical data arrow_drop_down
MACHINE SPECIFICATIONS
Maximum welding size (long / short version) (mm)
5.440 / 4.440
Minimum dimensions of the frame (length x height) (mm)
300 x 270
Plate size (length x width x thickness) (mm)
250 x 300 x 13
Maximum profile width – welding at 90° (mm)
130
Maximum profile height (mm)
160
Minimum profile height (mm)
40
Automatic distancing at the end of the welding

Welding bead (presettable during the configuration phase) (mm)
0,5 ÷ 2
Heated welding bead restrictors

Welding temperature control (°C)
0 ÷ 260
Bead temperature control (°C)
0 ÷ 50
Melting time setting

Welding time setting

Rotating heads
1, 2, 4, 5
Heads rotation angle
90°
OVERALL DIMENSIONS AND POWER
Width (with profile support arms fully retracted) (mm)
1.960
Width (with profile support arms fully extended) (mm)
2.460
Length (long / short version) (mm)
5.920 / 4.920
Height (mm)
2.100
Weight (long / short version) (kg)
2.200 / 2.100
Installed power (kW)
12
