VR  4003 F

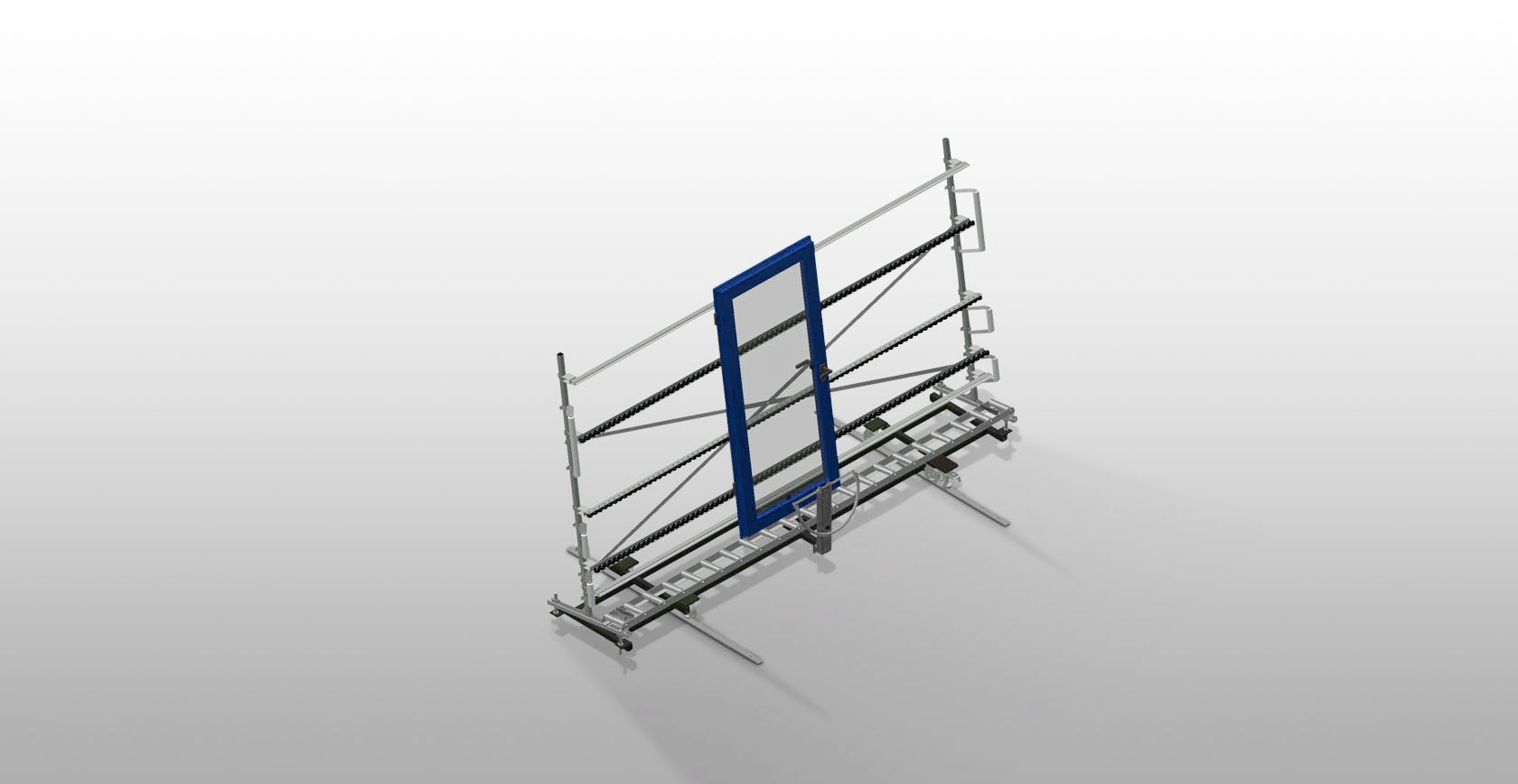

Vertical roller conveyor

Vertical roller conveyor for transportation of window elements. Stable steel construction. Vertical roller conveyor for smooth transportation to the next work task as well as for transportation to storage and sorting of the finished windows. Easy handling of window elements. Every roller conveyor unit is 4.000 mm long. Plastic slide bars top and bottom. Three mini-roller conveyors with rubber rollers, diameter 50 mm. Basic unit with end rack. Vertical roller conveyor on rails with flanged rollers, mobile. Options: rail, 2.0 m, left and right; end stop for VR; lead-in roller for VR; profile protectors for support rollers (Alum.).
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
4.000
Width (mm)
1.000
Height (mm)
2.490
Support roller divided into three parts (mm)
3 x 120
Support height (mm)
2.100
Load capacity (kg)
200
Weight (kg)
200
Mini-roller conveyors with rubber rollers, diameter 50 mm
3
Additional mini-roller conveyors with rubber rollers top/bottom

Basic unit with end rack

Vertical roller conveyor on rails with flanged rollers mobile

Lead-in rollers L= 500 mm (pair)

Lead-in rollers L= 250 mm (pair)

Profile protectors for L= 3x120 mm

Rail 2,0 m left and right

End stop L= 3x120 mm

Included
Available
Support rollers

Rollers throughout, roller conveyor divided into three parts (L = 3 x 120 mm)



VR 4003 F Support rollers Someco
VR 4003 F Mini-roller conveyor Someco
Mini-roller conveyor

Three mini-roller conveyors with rubber rollers, diameter 50 mm

Back support

Rear back support with plastic slide bars, top and bottom

VR 4003 F Back support Someco
VR 4003 F Grip Someco
Grip

Grip makes pushing the roller conveyor on the rails easy

Mobility unit

Mobility unit with flanged rollers and fixing brake

VR 4003 F Mobility unit Someco
VR 4003 F End stop Someco
End stop (Optional)

End stop L = 3x120 mm

Lead-in rollers (Optional)

Protective rollers for beginning or end of roller conveyor:

- L = 500 mm (pair)

- L = 250 mm (pair)

VR 4003 F Lead-in rollers Someco
VR 4003 F Profile protectors Someco
Profile protectors (Optional)

Profile protectors for support rollers 3x120 mm (Alum./33 x and Alum./48 x). Support rollers covered with protective tubing

Additional mini-roller conveyors (Optional)

Additional mini-roller conveyors with rubber rollers top/bottom

VR 4003 F Additional mini-roller conveyors Someco
VR 4003 F Rails Someco
Rails (Optional)

Rails, 2.0 m, left and right

Technical data arrow_drop_down
  • Length 4,000 mm
  • Width 1,000 mm
  • Height 2,490 mm
  • Support rollers divided into three parts 3 x 120 mm
  • Unit height 2,100 mm
  • Load 200 kg
  • Weight 200 kg
