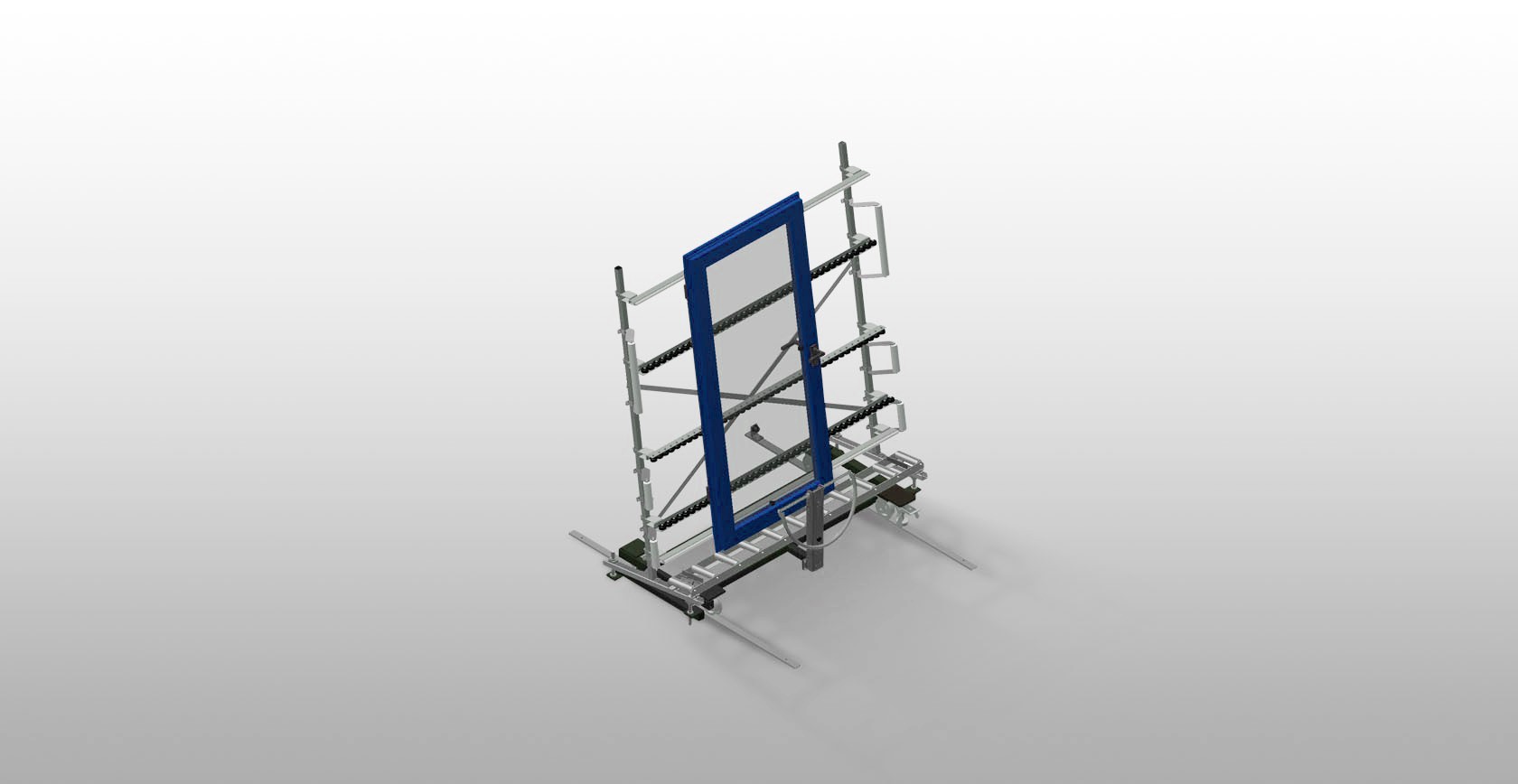

VR  2000 F
Vertical roller conveyor

Vertical roller conveyor for transportation and storage of window elements. Stable steel construction. Expandable using modular system design. Vertical roller conveyor for smooth transportation and storage of window elements. Easy handling of window elements. Every roller conveyor unit is 2.000 mm long. Plastic slide bars top and bottom. Three mini-roller conveyors with rubber rollers, diameter 50 mm. Basic unit without end rack. Options: rail, 2.0 m, left and right; end rack; end stop; lead-in roller; profile protectors for support rollers (Alum.).
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
2.000
Width (mm)
1.000
Height (mm)
2.490
Support roller width (mm)
200
Support height (mm)
2.100
Load capacity (kg)
200
Weight (kg)
100
Mini-roller conveyors with rubber rollers, diameter 50 mm
3
Additional mini-roller conveyors with rubber rollers top/bottom

Basic unit with end rack

Vertical roller conveyor on rails with flanged rollers mobile

Lead-in rollers L= 500 mm (pair)

Lead-in rollers L= 250 mm (pair)

Profile protectors for L= 200 mm

Rail 2,0 m left and right

End stop L= 200 mm

Included
Available
Support rollers

Rollers throughout, support roller width 200 mm

VR 2000 F Support rollers Someco
VR 2000 F Mini-roller conveyor Someco
Mini-roller conveyor

Three mini-roller conveyors with rubber rollers, diameter 50 mm

Back support

Rear back support with plastic slide bars, top and bottom

VR 2000 F Back support Someco
VR 2000 F Grip Someco
Grip

Grip makes pushing the roller conveyor on the rails easy

Mobility unit

Mobility unit with flanged rollers and fixing brake

VR 2000 F Mobility unit Someco
VR 2000 F End stop Someco
End stop (Optional)

End stop L = 200 mm

Lead-in rollers (Optional)

Protective rollers for beginning or end of roller conveyor:

- L = 500 mm (pair)

- L = 250 mm (pair)

VR 2000 F Lead-in rollers Someco
VR 2000 F Profile protectors Someco
Profile protectors (Optional)

Profile protectors for support rollers 200 mm (Alum./11 x and Alum./16 x). Support rollers covered with protective tubing

Additional mini-roller conveyors (Optional)

Additional mini-roller conveyors with rubber rollers top/bottom

VR 2000 F Additional mini-roller conveyors Someco
VR 2000 F Rails Someco
Rails (Optional)

Rails, 2.0 m, left and right

Technical data arrow_drop_down
  • Length 2,000 mm
  • Width 900 mm
  • Height 2,400 mm
  • Support roller width 200 mm
  • Unit height 2,100 mm
  • Load 200 kg
  • Weight 80 kg
