VR  3003

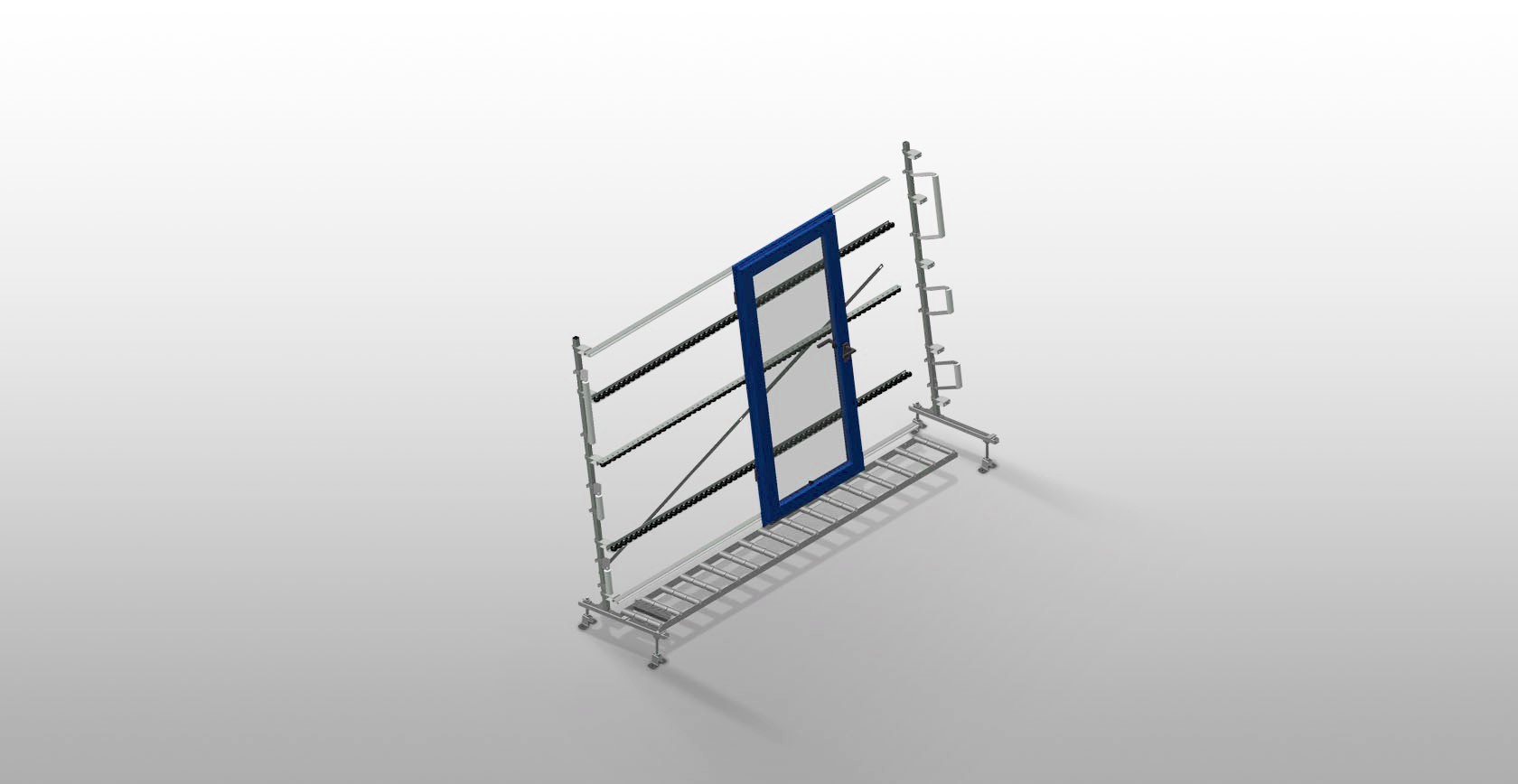

Vertical roller conveyor

Vertical roller conveyor for transportation and storage of window elements. Stable steel construction. Expandable using modular system design. Vertical roller conveyor for smooth transportation and storage of window elements. Easy handling of window elements. Every roller conveyor unit is 3.000 mm long. Roller conveyor divided into three parts. Plastic slide bars top and bottom. Three mini-roller conveyors with rubber rollers, diameter 50 mm. Basic unit without end rack. Options: end rack for VR 2003/3003/4003; end stop for VR; lead-in roller for VR; profile protectors for support rollers (Alum.).

Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
3.000
Width (mm)
900
Height (mm)
2.400
Support roller divided into three parts (mm)
3 x 120
Support height (mm)
2.100
Load capacity (kg)
200
Weight (kg)
120
Mini-roller conveyors with rubber rollers, diameter 50 mm
3
Additional mini-roller conveyors with rubber rollers top/bottom

Basic unit without end rack

End rack

Lead-in rollers L= 500 mm (pair)

Lead-in rollers L= 250 mm (pair)

Profile protectors for L= 3x120 mm

End stop L= 3x120 mm

Included
Available
Support rollers

Rollers throughout, roller conveyor divided into three parts (L = 3 x 120 mm)



VR 3003 Support rollers Someco
VR 3003 Mini-roller conveyor Someco
Mini-roller conveyor

Three mini-roller conveyors with rubber rollers, diameter 50 mm

Back support

Rear back support with plastic slide bars, top and bottom

VR 3003 Back support Someco
VR 3003 Roller conveyor height adjustment Someco
Roller conveyor height adjustment

Lower roller conveyor height can be adjusted by means of adjustable feet

Mini-roller conveyor height adjustment

Mini-roller conveyor height is adjustable

VR 3003 Mini-roller conveyor height adjustment Someco
VR 3003 End rack Someco
End rack (Optional)

End rack is mandatory at end of line for VR 2000, VR 3000 and VR 4000

End stop (Optional)

End stop L = 3x120 mm

VR 3003 End stop Someco
VR 3003 Lead-in rollers Someco
Lead-in rollers (Optional)

Protective rollers for beginning or end of roller conveyor:

- L = 500 mm (pair)

- L = 250 mm (pair)

Profile protectors (Optional)

Profile protectors for support rollers 3x120 mm (Alum./33 x and Alum./48 x). Support rollers covered with protective tubing

VR 3003 Profile protectors Someco
VR 3003 Additional mini-roller conveyors Someco
Additional mini-roller conveyors (Optional)

Additional mini-roller conveyors with rubber rollers top/bottom
