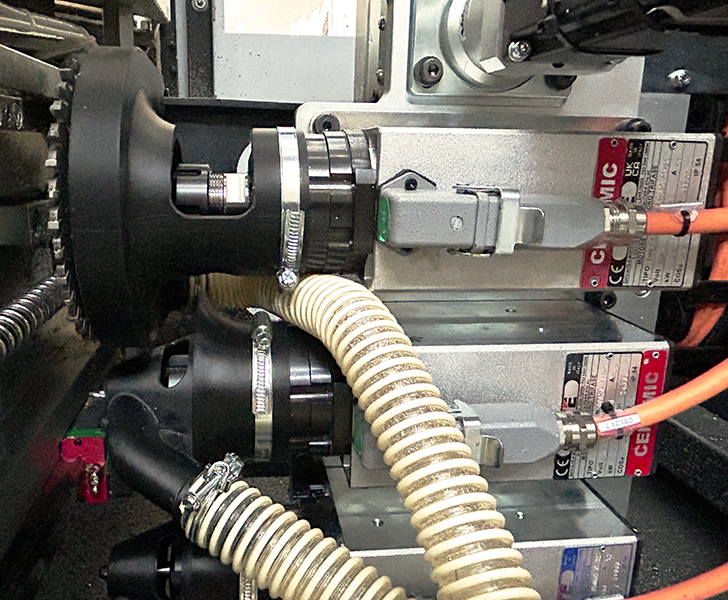

Milling machine for contouring PVC profiles with 45° cutting. The machine, which is integrated into the window production process with Someco SM series machines equipped with Seamless technology counter punches, prepares the profiles for the subsequent phase of zero bead welding. The CM 1H is equipped with three electrospindles, one of which is used for a cut-to-length knife and two of which can be equipped with different tools to allow efficient contouring even of profiles made of different materials. The machine is programmable on board and can import and execute predefined and optimised machining lists.

Technical data arrow_drop_down
AXIS TRAVEL
X AXIS (mm)
565
Y AXIS (mm)
45
Z AXIS (mm)
540
Axes precision (mm)
± 0,1
POSITIONING SPEED
X AXIS (m/min)
50
Y AXIS (m/min)
40
Z AXIS (m/min)
20
AXIS ACCELERATION
X AXIS (m/s²)
10
Y AXIS (m/sec²)
10
Z AXIS (m/sec²)
3,5
DIMENSION AND WEIGHT
Overall dim. (width x length x height) (mm)
1.260 x 1.350 x 1.860
Arm length (mm)
1.300
Overall with arms (width x length) (mm)
2.770 x 2.280
Weight (kg)
750
WORK AREA
Profile height (mm)
50 ÷ 100
Profile width (mm)
50 ÷ 130
Profile length (mm)
350 ÷ 3.500
END-MILLING AND MILLING UNIT
Number of electrospindles
2
Additional spindle for differentiated path

Blade (mm)
Ø 150
Milling unit
1
Mill diameter max. (mm)
Ø 12
Mill rpm max. (rpm)
24000
Electrosplindle power in S1 (kW)
2
MACHINE SPECIFICATIONS
Seamless profile preparation

Profile adjustable clamps

Swarfs and chips tray

Operating pressure (bar)
6 - 7
COMMAND AND CONTROL UNIT
Embedded PC
Beckhoff
Communication protocol
EtherCAT
HMI
TS Display HD TFT 15,6'' - “optical bonding”
RJ45 network card

USB port connection

Barcode reader

Differentiated path management (with additional spindle)

SOFTWARE
Microsoft® Windows® 10 IoT Enterprise 2019

ContourCAM

JOB: software for management of the cutting lists and connection to external calculation programs

Included
Available
