GLR  5000
Glazing bead rack

home / product a to z / G

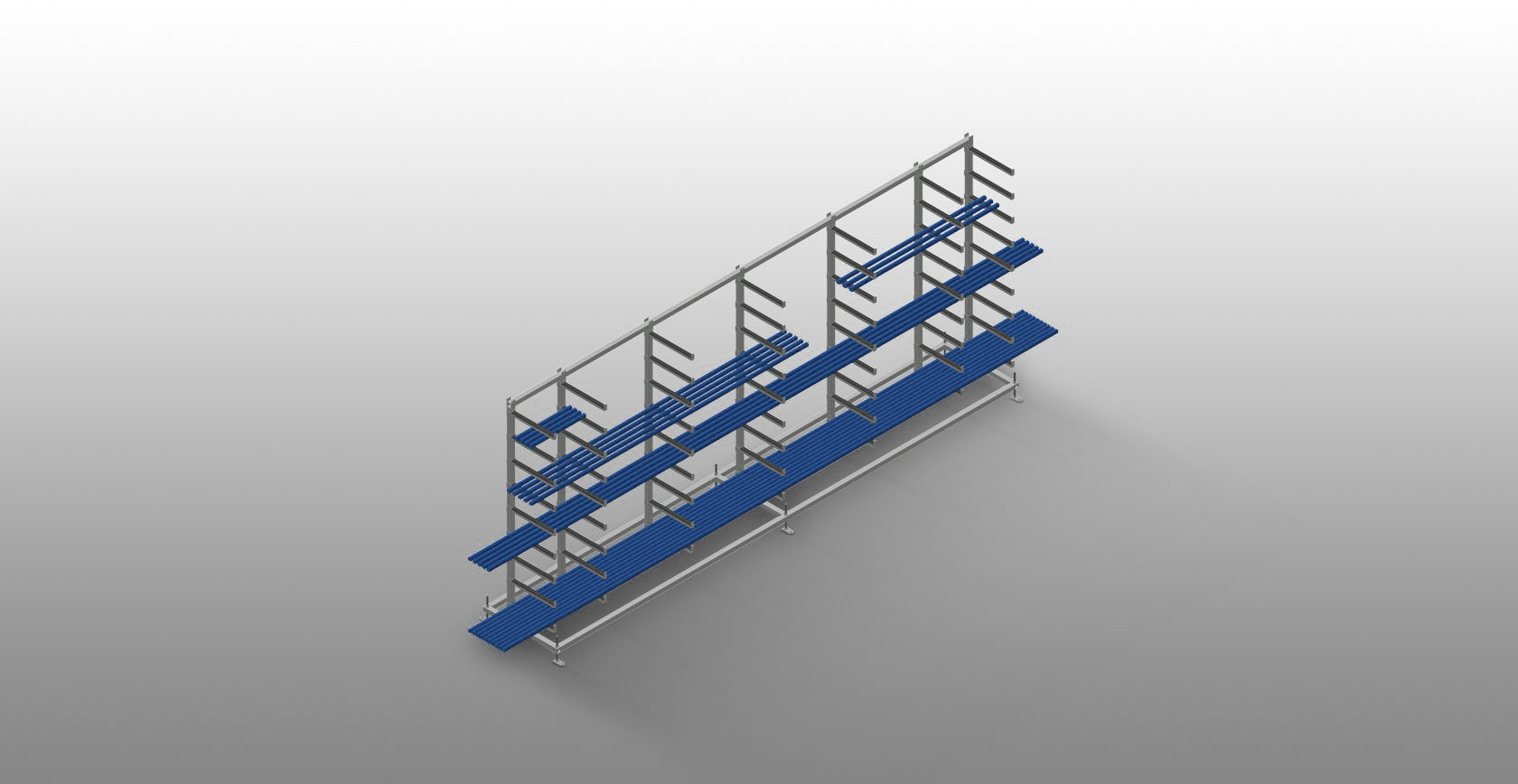

Stable steel construction. Glazing bead rack for horizontal storage of aluminium and plastic glazing beads. Ideal for storing and sorting glazing beads, e.g. before the glazing bead saw. Seven support arms are evenly spaced along the rack. Four centre supports are adjustable. Nine support arms are freely adjustable, giving variable support arm spacing. Support arms are rubber coated. Well-organised storage provides quick access.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
5.000
Width (mm)
800
Height (mm)
2.200
Shelves
9
Centre supports adjustable
4
Compartment depth (mm)
450
Clearance (mm)
185
Weight (kg)
200
Load capacity (kg)
630
Included
Available

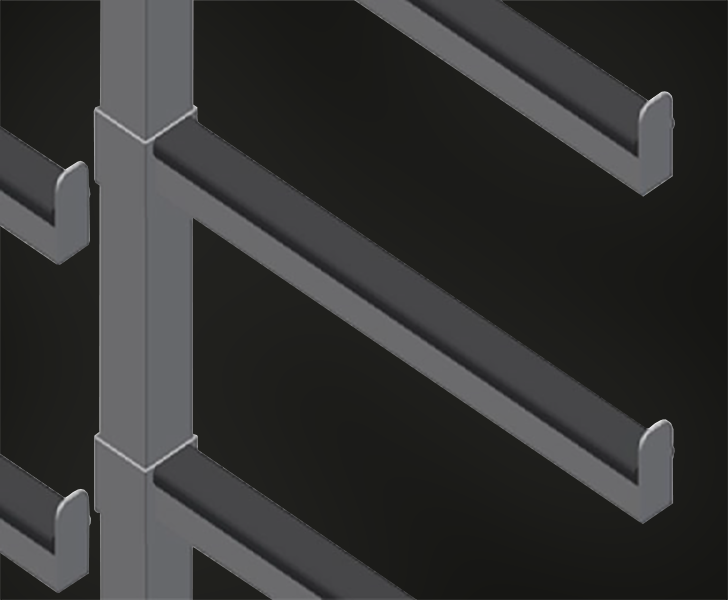

Support arms

Support arms are rubber coated. Centre upright is adjustable. Support arms are freely adjustable, giving variable support arm spacing

GLR 5000 Support arms Someco
GLR 5000 Hinged foot Someco

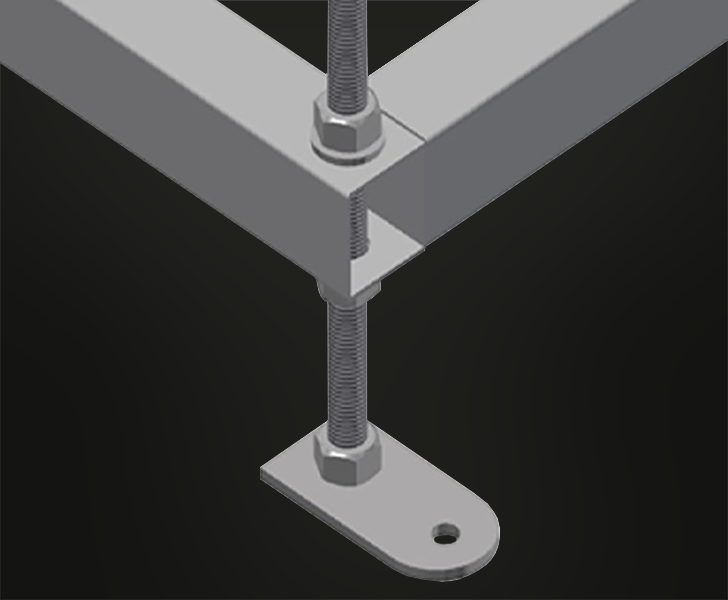

Hinged foot

Working height can be adjusted by means of adjustable feet

Technical data arrow_drop_down



Technical Data

Length 5,000 mm

  • Length 5,000 mm
  • Width 800 mm
  • Height 2,200 mm
  • Nine shelves
  • Compartment depth 450 mm
  • Clearance 185 mm
  • Weight 200 kg
  • Load 630 kg
