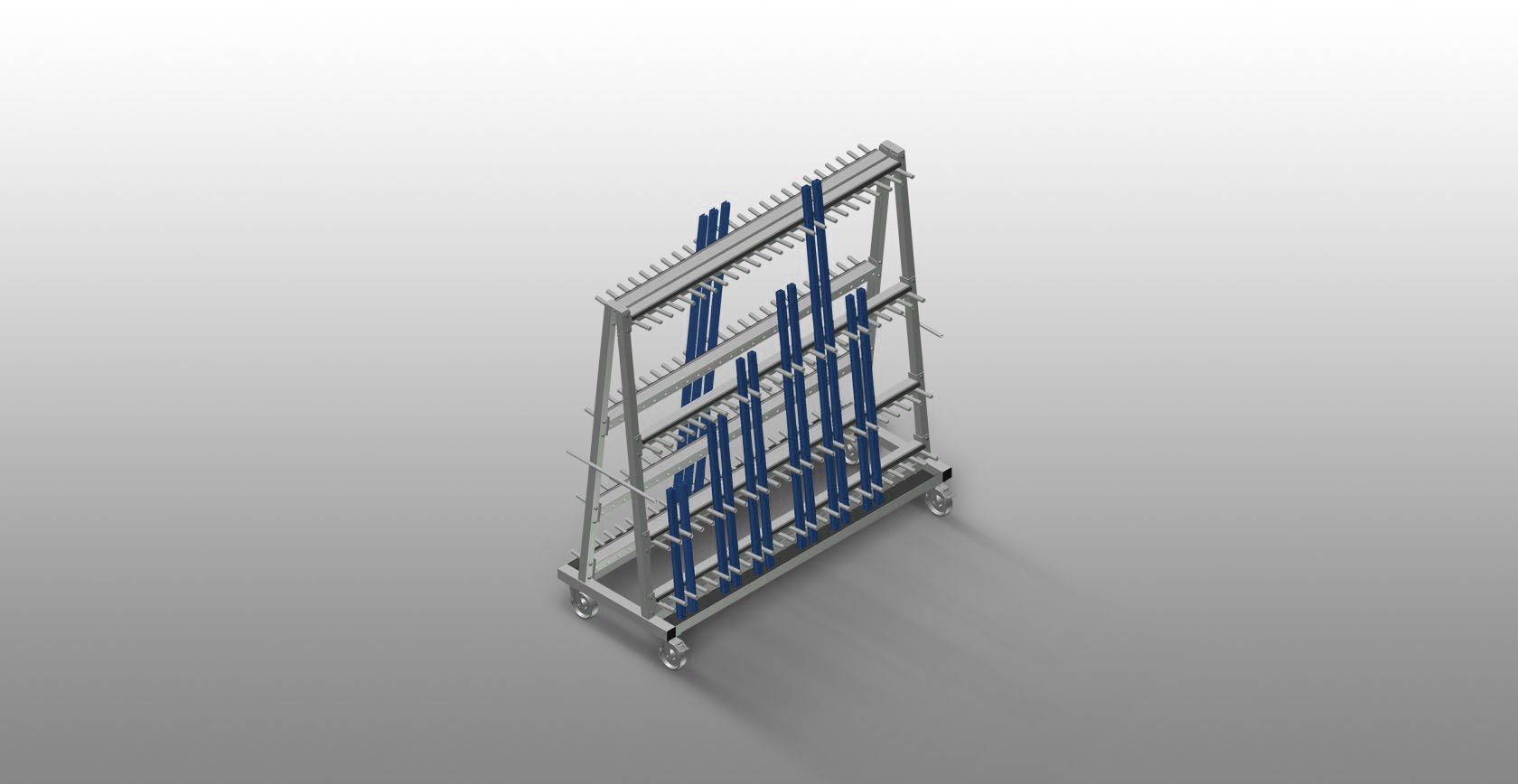

GLW  48
Glazing bead trolley

home / product a to z / G
Profile trolley for vertical storage and transportation of aluminium glazing beads. Stable steel construction. Double-sided profile trolley for vertical storage and transportation of glazing beads. Quick access to pre-sorted glazing beads. Four sorting racks with fixed spacing. Compartment dividers covered with protective tubing. Lower supporting surface clad with protective rubber. Rear back support with rubber strips. 24 compartments per side. Transport handle on both sides. Four castors, two of which have a fixing brake.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
1.620
Width (mm)
650
Height (mm)
1.640
Compartments
48
Compartment dividers
8
Compartments per side
24
Compartment width (mm)
40
Compartment depth (mm)
90
Sorting racks with fixed spacing
4
Support height (mm)
1.400
Weight (kg)
120
Load capacity (kg)
400
Swivel castors diameter (mm)
125
Swivel castors
4
Swivel castors with locking stop
2
Included
Available

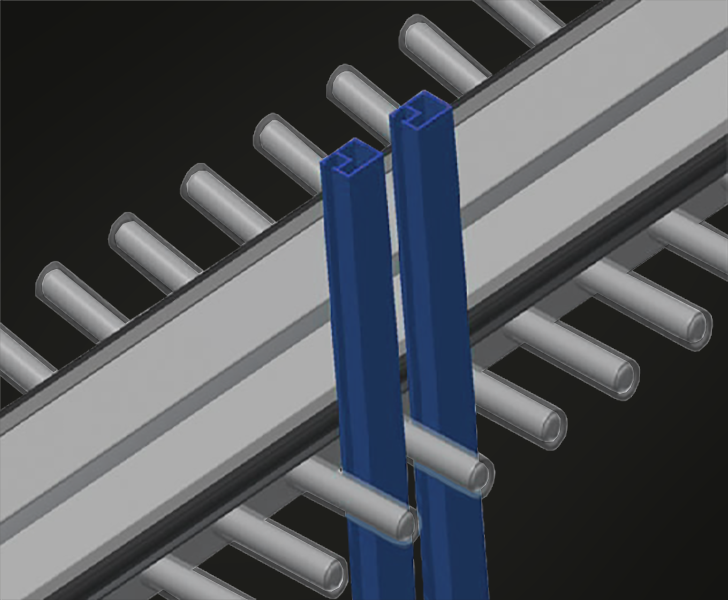

Compartment divider with plastic protector

All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage

GLW 48 Compartment divider with plastic protector Someco
GLW 48 Back support with rubber strips Someco

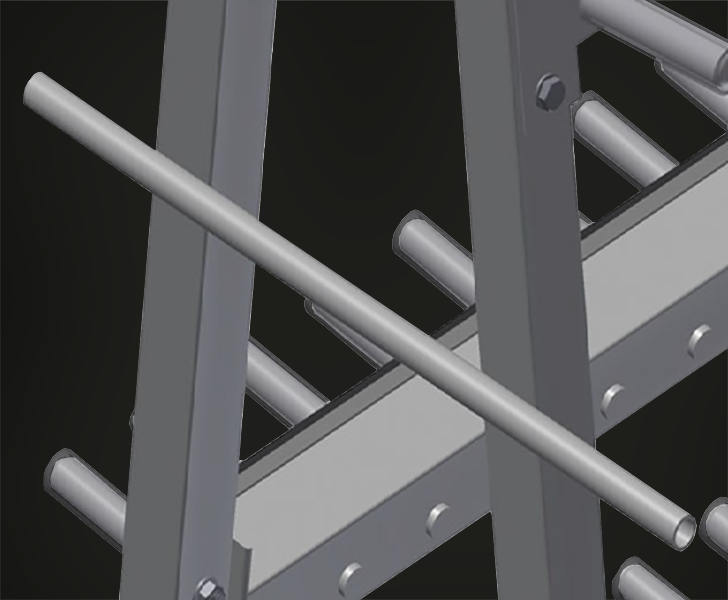

Back support with rubber strips

Rear supporting surfaces equipped with rubber strips protect profiles from damage

Supporting surfaces with protective rubber

Lower supporting surfaces clad with rubber protect the profiles from damage

GLW 48 Supporting surfaces with protective rubber Someco
GLW 48 Transport handles Someco
Transport handles

Transport handles on both sides for mobility

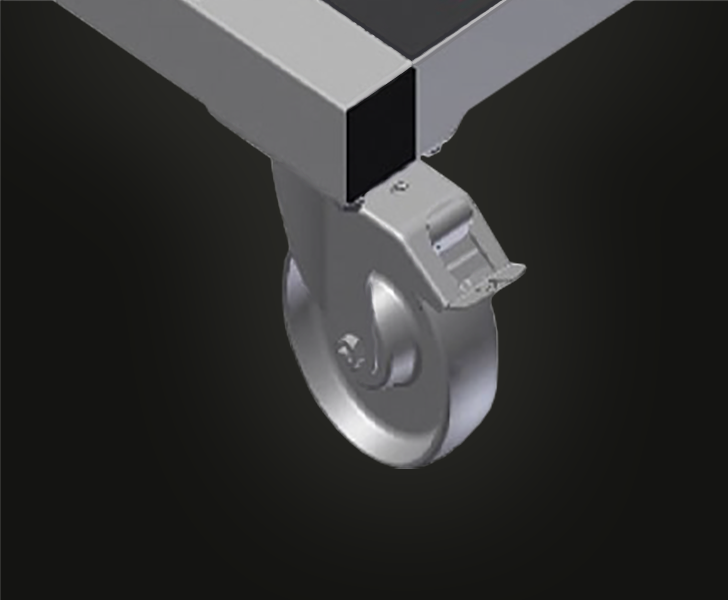

Casters

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

GLW 48 Casters Someco
Technical data arrow_drop_down

Technical Data
Length 1,620 mm

  • Width 620 mm
  • Height 1,640 mm
  • Eight compartment dividers
  • Compartment width 40 mm
  • Compartment depth 90 mm
  • Unit height 1,400 mm
  • Weight 120 kg
  • Load 400 kg
  • 48 compartments
  • Roller diameter 125 mm
