GLW  30
Glazing bead trolley

home / product a to z / G

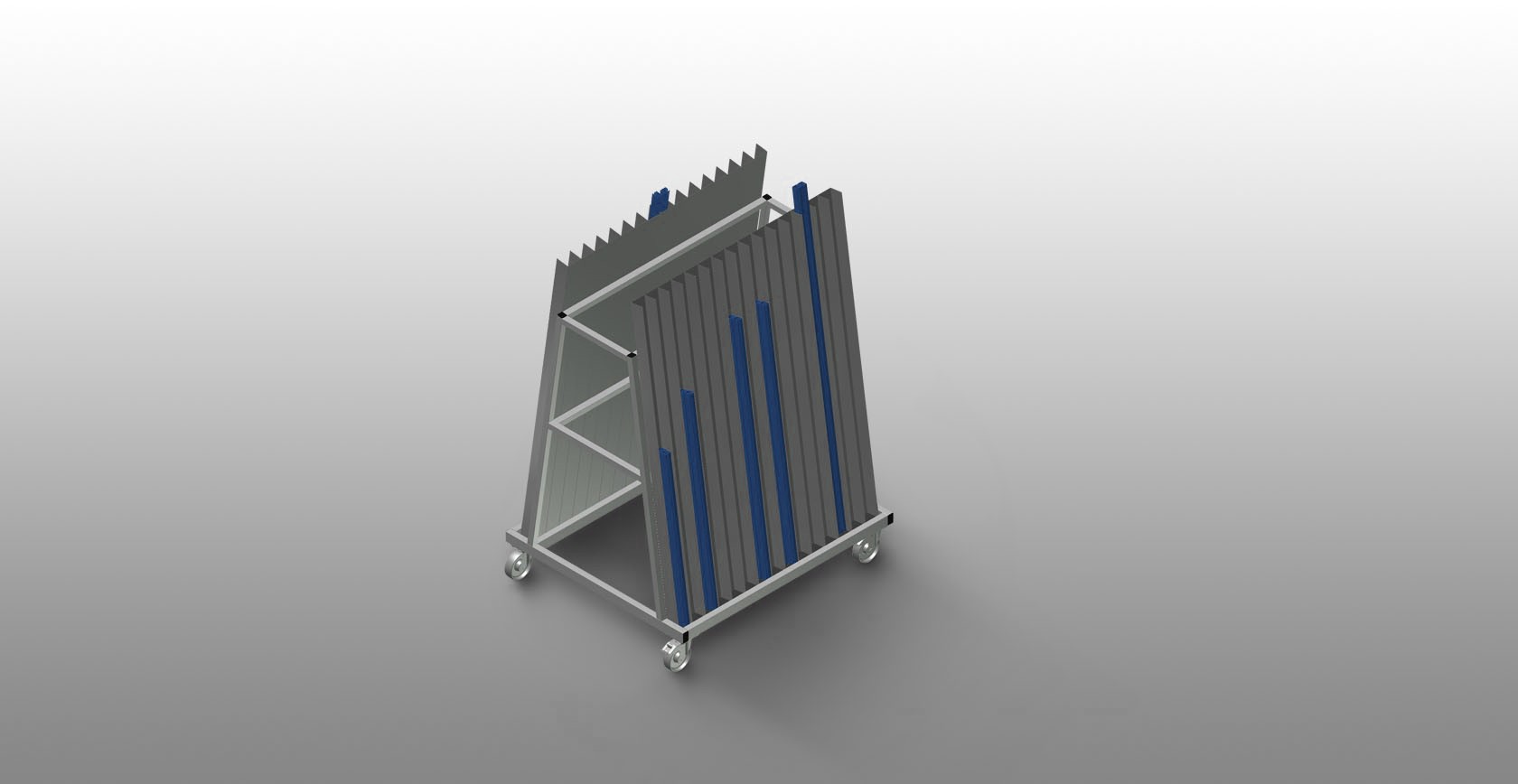

Glazing bead trolley for transportation and sorting of glazing beads. Stable steel construction. Ideal for vertical transportation and sorting of glazing beads. Glazing bead trolley with 30 compartments. 15 compartments per side. Lower supporting surface clad with rubber. Four castors, two of which have a fixing brake.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
1.185
Width (mm)
1.000
Height (mm)
1.660
Compartments
30
Compartments per side
15
Compartment width (mm)
75
Compartment depth (mm)
65
Weight (kg)
80
Load capacity (kg)
350
Swivel castors diameter (mm)
125
Swivel castors
4
Swivel castors with locking stop
2
Included
Available

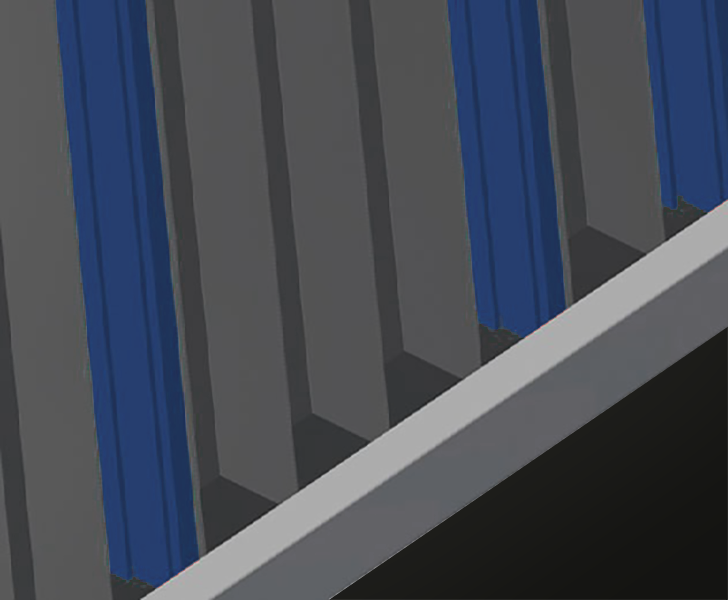

Compartments

15 compartments per side, 30 compartments in total. Compartment width 75 mm,Compartment depth 65 mm, Rear support height 1,500 mm, Rear support angle: 8°

GLW 30 Compartments Someco
GLW 30 Lower supporting surface Someco

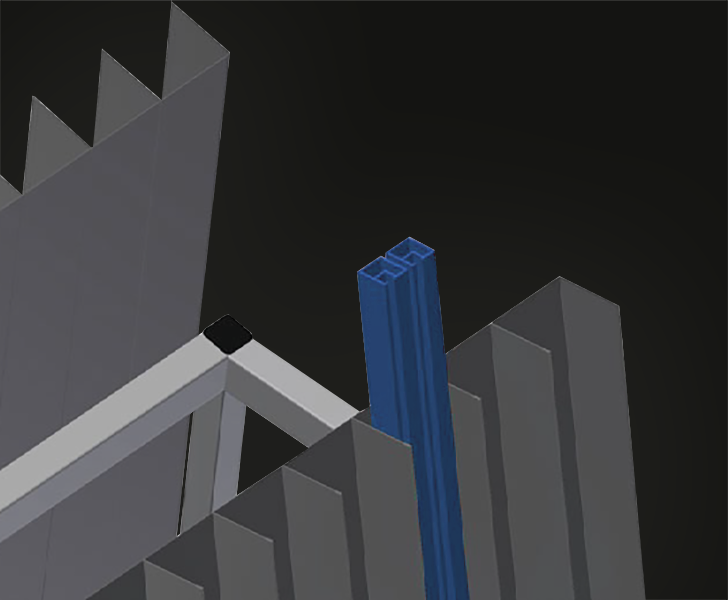

Lower supporting surface

Lower supporting surface clad with rubber

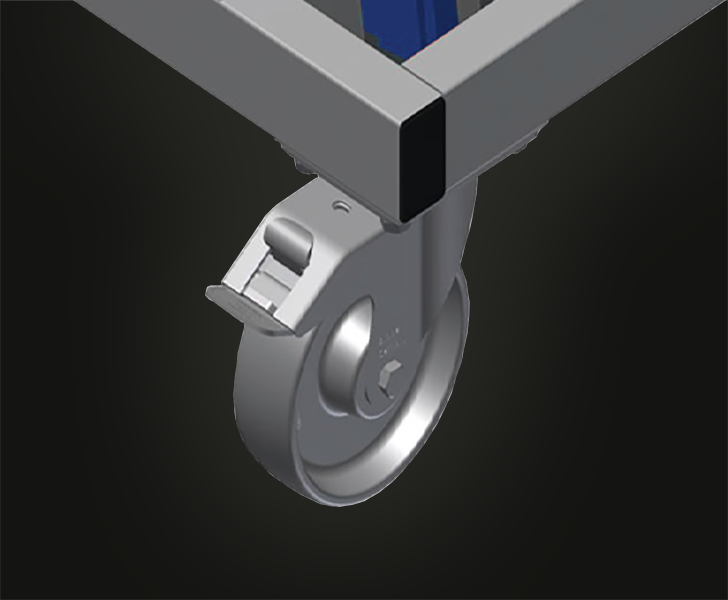

Casters

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

GLW 30 Casters Someco
Technical data arrow_drop_down

Technical Data

  • Length 1,185 mm
  • Width 1,000 mm
  • Height 1,660 mm
  • 30 compartments
  • Compartment width 75 mm
  • Compartment depth 65 mm
  • Weight 80 kg
  • Load 350 kg
  • Roller diameter 125 mm
